Manufactures Circular Seam Welding Machine Girth Welding Machine

FOB Reference Price:Get Latest Price
$6,700.00 - $27,700.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Machine Type:
Welding Manipulator
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Place of Origin:
Shandong, China
Brand Name:
hf
Voltage:
380V
Current:
500A
Rated Capacity:
3KVA
Rated Duty Cycle:
50%
Dimensions:
2000X1600X800
Usage:
Welding Machines and Equipment
Certification:
ISO9001:2008
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
High-accuracy
Weight (KG):
500
welding thickness:
3mm
welding mode:
SAW; MAG
welding length:
200-1500mm
welding diameter:
230-500mm
valve seat welding diameter:
30-60mm
valve seat height:
15-45mm
welding seam width:
6mm
welding wire diameter:
1.2/1.6/2.4mm
control:
PLC+torch screen or rotary botton
rotating speed control:
AC servo or inverter
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case.
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

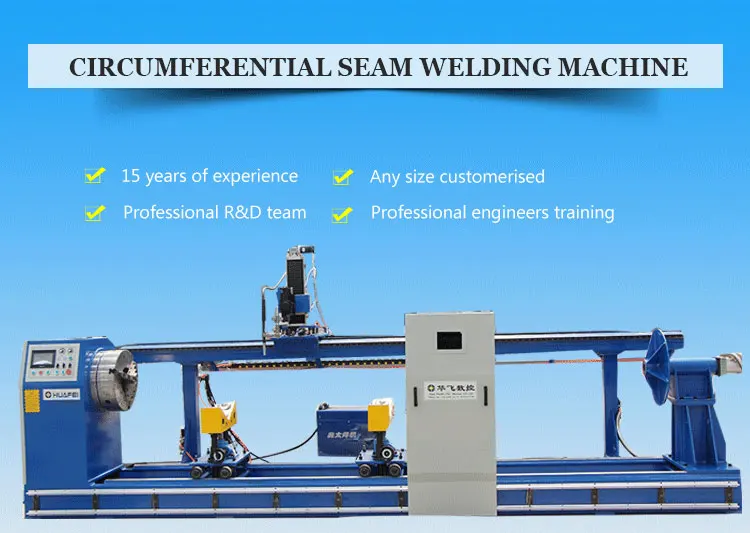

Manufactures Circular Seam Welding Machine Girth Welding Machine
Products Description
Automatic Circumferential seam welding machine is mainly applied to both ends flange of slender tube automatic welding, can be efficiently used for tube-tube butt, pipe flange butt, pipe elbow butt girth welding. This machine is applicable to carbon steel girth automatic welding, welding thickness range is more than 3mm, the appearance of weld, weld width uniform, in the automatic welding process, you only need give a corresponding single, the welding can be continuously, all at once finished, without the stopping. This will greatly improve the efficiency of welding and obtain high quality weldsmachine is easy to operate, install, can replace a large number of skilled welders, access to high quality, high efficiency welding process. The equipment consists of flange automatic girth welding host, gas shielded welding power source, precision welding oscillator(including trimming electric carriage), electronic control system (including multifunctional control box), automatic wire feeding mechanism.
Product characteristics
♦The welding torch is fixed; the work piece rotating, welding position is horizontal.
♦The work piece rotation is driven by clamping, roller bearing bracket.
♦The torch is adjustable along the longitudinal beam, adaptable to various welding.
♦Machine is PLC control, the work piece rotation adopts AC servo motor speed control, stepless adjustable, improve equipment reliability.
♦The form and parameters of welding can be preset, storing and transferring. Through touch screen human-machine interface can easily change the parameter and state transition.
♦The torch can be adjusted up and down, left and right, dip angle, in order to meet the welding requirements.
Product Paramenters
Item
Parameter
Welding Material
Carbon Steel, Stainless Steel, Aluminum Alloyed
Welding Thickness
2-6mm
Welding Diameter
100-400mm; 400-1200mm
Welding Length
300-6000mm
Work Piece Weight
Maximum 6000kg

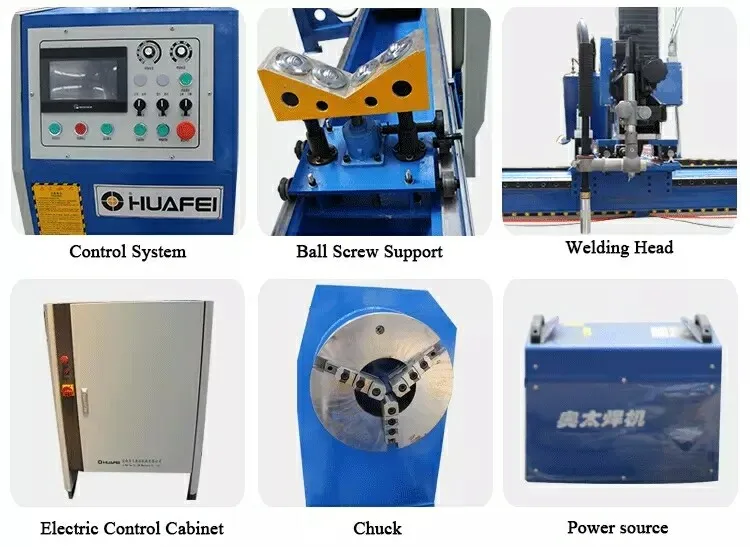

Product Details
Control System
Ball Screw Support
Welding Head
Electric Control Cabinet
Chuck
Power Source
All specifications and components of our NC girth welder can be customized as required.

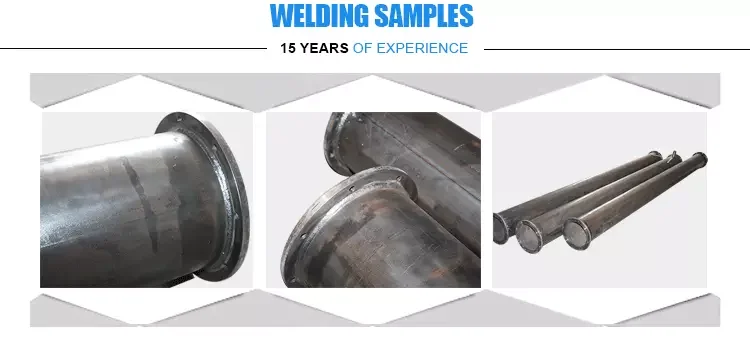

Welding effect
If the above machines can not meet your needs, please contact us, professional engineers to provide you with the best solution and quotation!

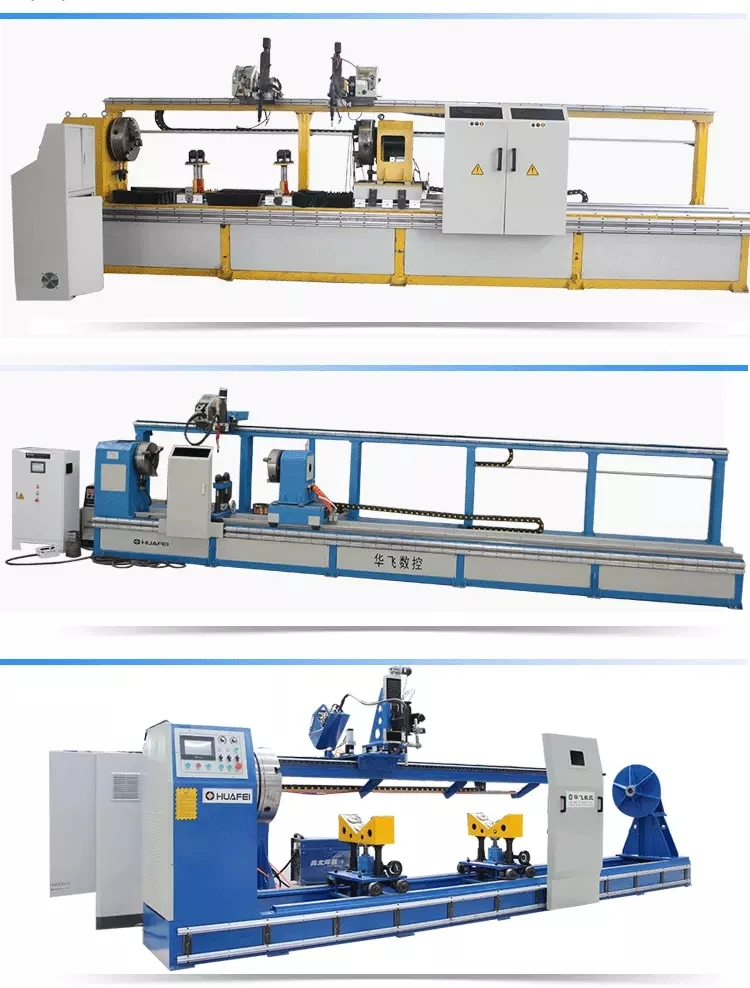

Recommend Products
