Tower Rod Internal Straight Seam Welding Machine Welding Equipment

FOB Reference Price:Get Latest Price
$22,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Machine Type:
Welding Manipulator
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Place of Origin:
Shandong, China
Brand Name:
Huafei
Voltage:
380V
Current:
10-1000A
Rated Capacity:
16KVA
Rated Duty Cycle:
50-100%
Dimensions:
14000mm
Usage:
Internal seam Welding Machine
Certification:
CE ISO
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
High-accuracy
Weight (KG):
2000
Product name:
Tower Rod Internal Straight Seam Welding Machine Welding Equipment
Welding Workpiece:
Long pipe, poles
Welding mode:
MAG SAW
Welding thickness:
3-8mm
Welding length:
14000mm
Welding material:
Carbon steel
Transmission mode:
Transmission rotator
Control mode:
PLC
Interface:
industrial touch screen HMI
Other function:
TV monitor, auto seam tracker
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Sea Worthy Package With Film and Wooden Case.
Port
Qingdao Port China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Tower Rod Internal Straight Seam Welding Machine Welding Equipment
Products Description

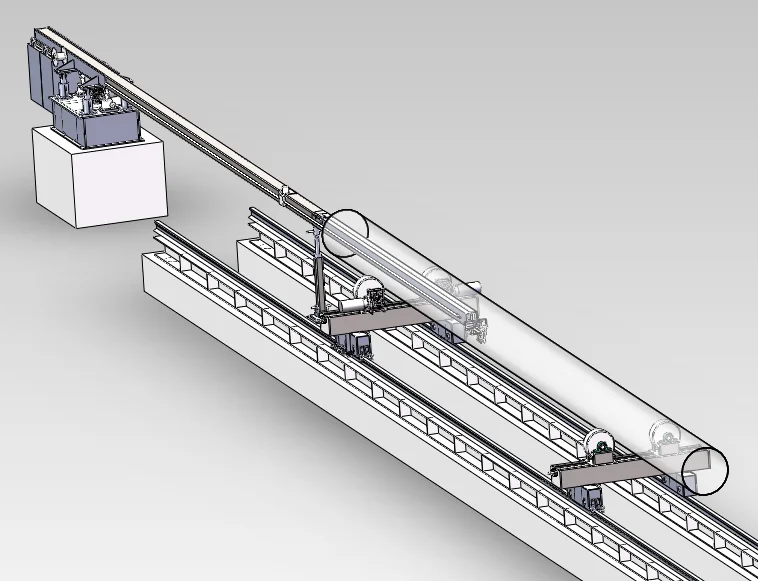

Tower internal longitudinal seam welding using gantry walking, workpiece fixing mode; rotator walking speed adopts servo stepless speed regulation, can meet the requirements of welding speed adjustment. Welding rotator walking, welding start or stop control is linkage with welding power supply.
1. Given the tower has a certain taper, adjustable rotator using screw adjusting type, the distance between roller seats adjust through the manual screw; according to the internal longitudinal seam to adjust the spacing between the roller seats, make the longitudinal welding in a horizontal position as far as possible.
2. The internal longitudinal seam welding machine head is equipped with a two-dimensional mechanical tracking mechanism, which can reduce the frequent adjustments due to cylinder placed errors.
3. Equipped with a welding oscillator, swing or not during welding.
4.Near the machine head equipped with tv surveillance cameras, convenient welding observation.

Equipment application and scope:

Application: pyramid communication tower internal longitudinal seam automatic welding.
Welding mode: gas shield welding (with oscillator). Scope of application: thickness 4mm-14mm; maximum length: 12000mm; diameter: Ф300mm-Ф1400 mm.
Job-status: workpiece welding surface is smooth, the largest seam gap less than 2mm.
Condition of workpiece surface: no pollution, serious corrosion, etc.
Workpiece state before welding:

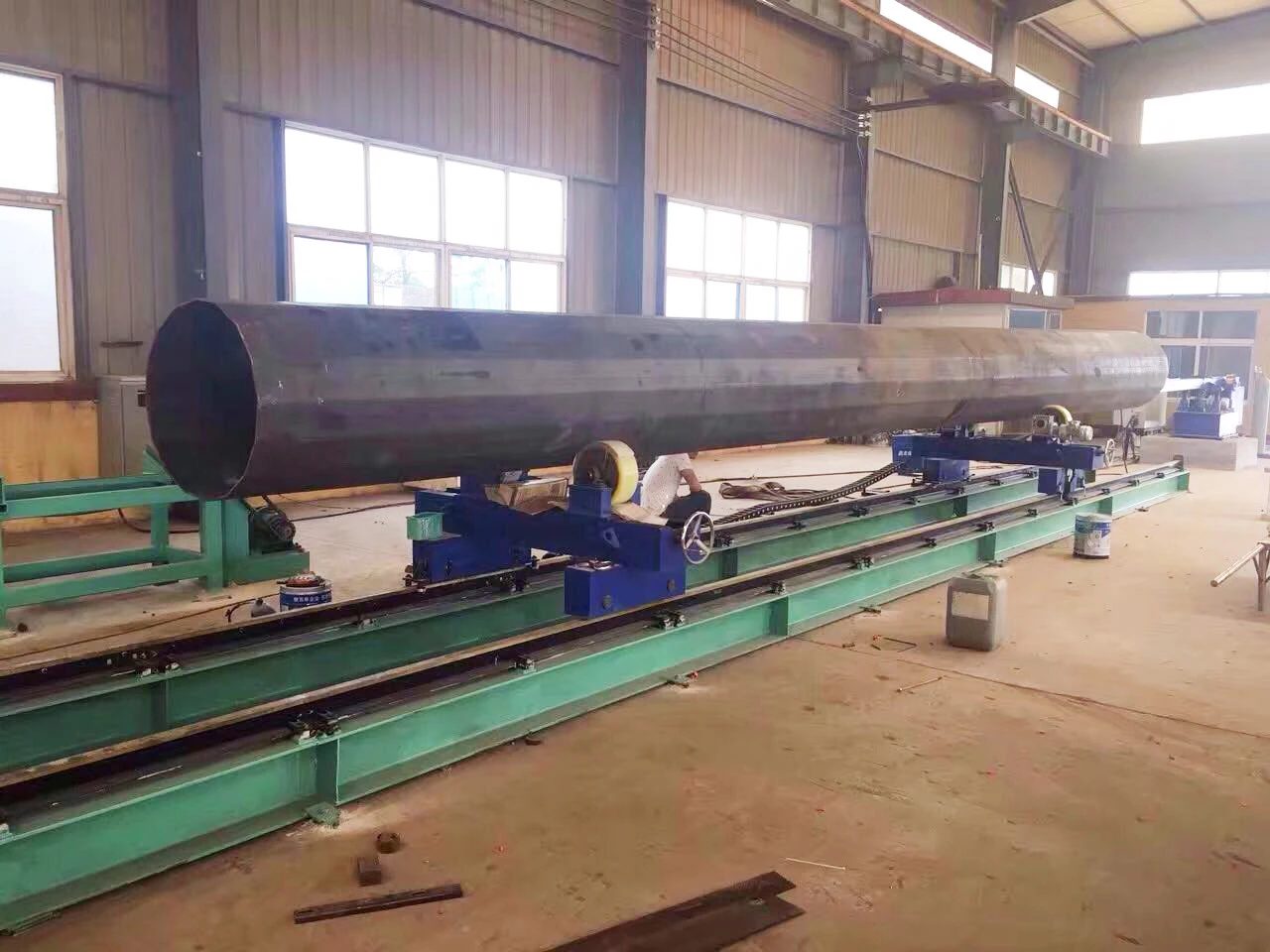

The workpiece is placed on the rotator, making sure the welding seam is on six o’clock direction.
By using spot weld, the workpiece needs to be welded firmly, then keep clean the welding spot, fixing the run-on and run-off tab.

Product Paramenters
Item
Parameters
Effective welding length
12000mm
Beam lifting stroke
250mm
Beam lifting speed
160mm/min
Welding inner diameter
≥350mm
Welding mode
MAG, SAW
