Automatic Welding Positioner/Welding Rotary Table
Products Description

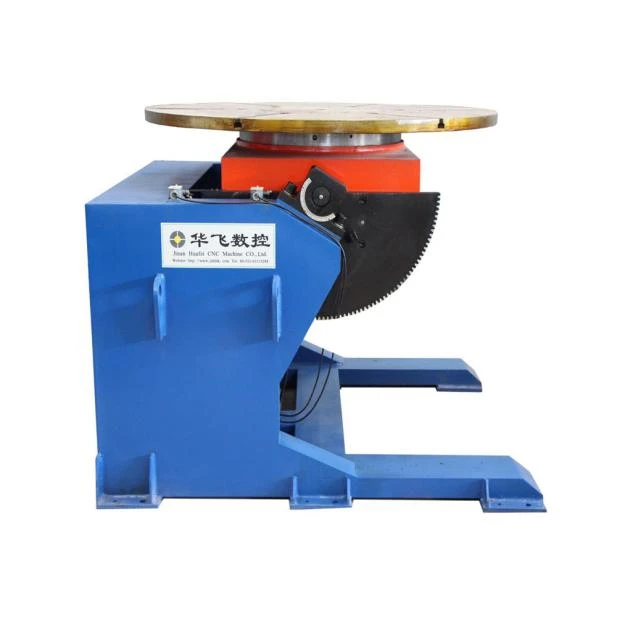

The seat positioner is composed of a rotary mechanism, a turnover mechanism, a frame, and an electronic control system. It can make the welding seam in a horizontal or ship-shaped position by turning or tilting the seam when it is working. The working rotation adopts variable frequency stepless speed regulation, and the working closure drives the tilt through sector gear or hydraulic cylinder. The turning angle of the worktable is 0 ~120. It can realize the joint control with the operator or welding machine. The control system can be equipped with three types of configuration button digital control, switch digital control and switch relay control. This product is widely used in the welding of rotating parts such as shafts, discs, cylinders and so on. It is the most widely used structural form at present.
Product characteristics
Whole Machine Structure

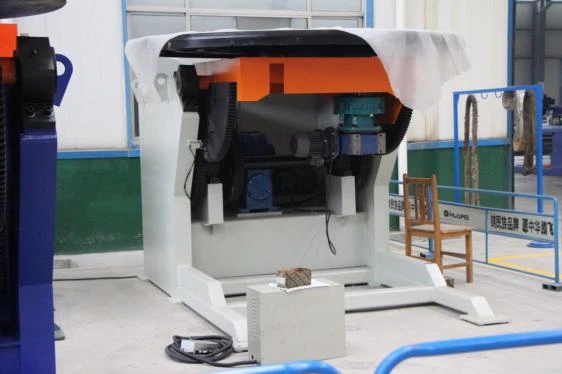

Finishing table: It is not easy to be damaged by welding spatter and has a long service life. The frame is formed by tailor welding of sheet and profile, which has sufficient mechanical strength and ensures no distortion for a long time. The rotary mechanism and the turnover mechanism are mounted on the frame through the bearing seat.
Workbench Panel

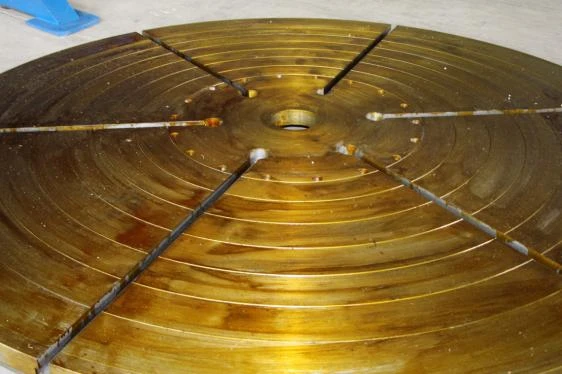

The working faceplate is designed by a double-deck table or whole board finishing. It has the characteristics of reasonable structure, good rigidity, and long service life. It has T-groove which is more convenient to fix the workpiece. It can be equipped with chuck according to customer's requirements.
Angle Dial
Clear and obvious angle dial can make users more convenient to grasp the turning angle of the workpiece, making the operation more accurate and reliable.
Rotary Motor

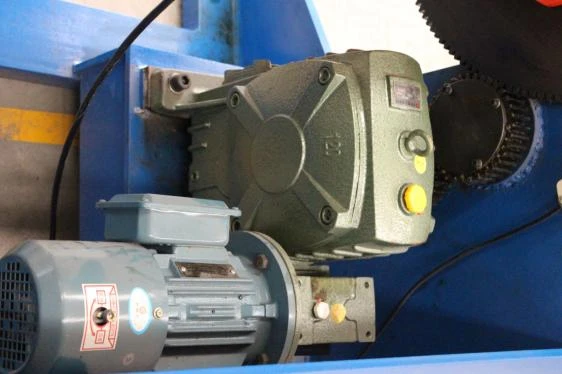

Poleless variable frequency speed regulation can be realized by selecting high-quality motors from well-known manufacturers in China.
Flip Motor

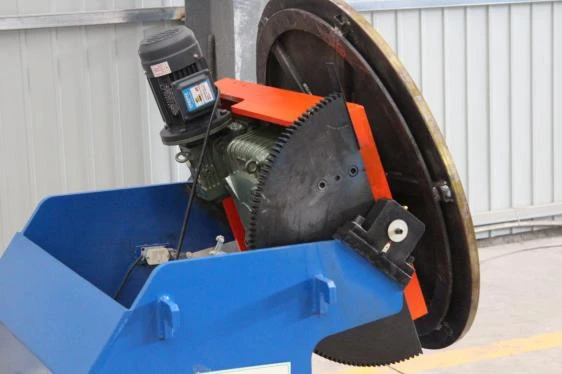

China's well-known brand motor, high control accuracy, reliability, long service life, and other characteristics.
Safety Self-Locking
The machine has the function of self-locking. It does not slip under the maximum load when tilting and turning. It is safe and reliable.
Product Paramenters
Model No.
BW2-10
BW2-20
BW2-30
BW2-50
BW2-100
BW2-150
BW2-200
Basic loading (kg)
1200
2000
3000
5000
10000
15000
20000
Rotating speed(r/min)
0.1~1
0.1~1
0.06~0.6
0.05~0.5
0.05~0.5
0.02~0.2
0.02~0.2
Overturning speed(r/min)
0.37
0.37
0.37
0.37
0.37
0.15
0.2
Turning angle(°)
120
120
120
120
120
120
120
Work table diameter(mm)
1000
1100
1400
1600
2000
2200
2500
Height of work table(mm)
1100
1200
1500
1550
1900
2000
2100
Allow work piece off-center(mm)
Eccentricity
150
150
200
200
200
200
200
Centroidal distance
250
250
300
300
400
500
600
Rotating motor power(kw)
0.75
1.5
1.5
2.2
3
4
5.5
Turning mootr power(kw)

0.75
1.5
1.5
3
4
5.5
7.5
Standard Configuration
Serial number
Key Component Name
Manufacturer
1
The main body of the positioner
Huafei cnc
2
Air switch
Delicious
3
Frequency converter
Medium drive
4
Switching Mode Power Supply
Meanwell
5
Intermediate relay
Omron
6
AC contactor
Siemens
7
Indicator light
Schneider
8
Button with lamp
Schneider
9
Emergency stop button
Schneider
If the above machines can not meet your needs, please contact us, professional engineers to provide you with the best solution and quotation!
