Pipe Length Max 12000mm China CNC Plasma Cutting Machine For Metal

FOB Reference Price:Get Latest Price
$6,500.00 - $45,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QGVI
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Samples - $6,500.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HUAFEI CNC
Voltage:
Standard
Rated Power:
Standard
Dimension(L*W*H):
Depends on machine model
Certification:
ISO 9001,CE SGS
Warranty:
1 Year
Weight (KG):
1500
Year:
2019
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Flexible Manufacturing
Product Name:
Pipe Length Max 12000mm China CNC Plasma Cutting Machine For Metal
Cutting mode 1:
Plasma Cutting
Pipe Diameter:
60-500mm
Pipe Length:
Max 12000mm
Loading Capacity:
Max 6000kg
Flame Cutting Thickness:
5-60mm
Plasma Cutting Thickness:
Depends on plasma power source
Cutting Speed:
10-1500mm/min
Bevel angle:
±45°(adjustable)
Cutting mode 2:
Flame Cutting
Supply Ability
Supply Ability:
200 Set/Sets per Year China CNC Plasma Cutting Machine For Metal
Packaging & Delivery
Packaging Details
Film Covering and Plywood Case Packing. Pipe Length Max 12000mm China CNC Plasma Cutting Machine For Metal
Port
Qingdao; Pipe Length Max 12000mm China CNC Plasma Cutting Machine For Metal
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

Pipe Length Max 12000mm China CNC Plasma Cutting Machine For Metal

Products Description
Product Profile:

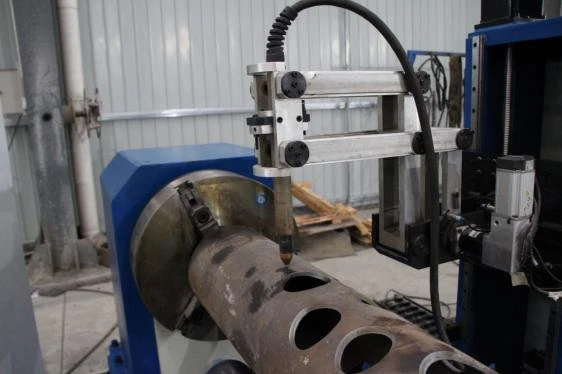

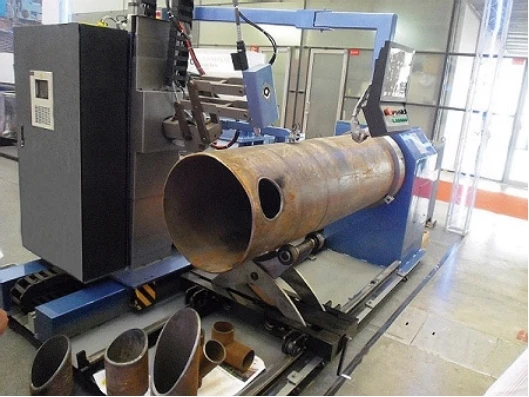

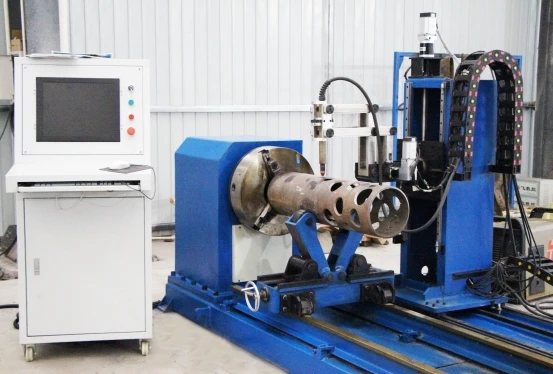

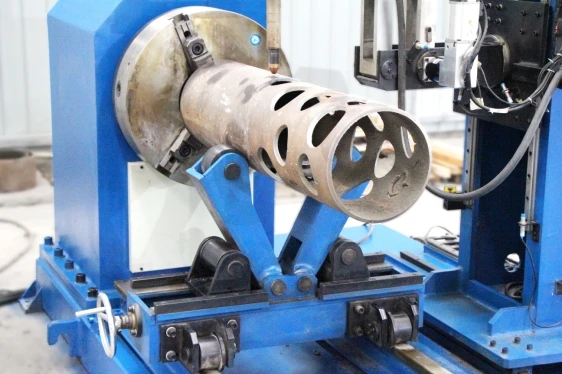

  The machine is widely used in cutting pipeline structural parts in construction, chemical industry, shipbuilding, mechanical engineering, metallurgy, electric power and other industries. NC intersecting wire cutting machine is very convenient for cutting and processing such workpieces. It does not need operator's calculation and programming. It only needs to input parameters such as pipe radius and intersecting angle of pipeline intersecting system. The machine can automatically cut intersecting line, intersecting line hole and welding groove of pipeline. The numerical control pipe intersecting wire cutting machine adopts digital control. The number of control axes of the machine is two to six axes. Each type of machine has the functions of cutting various intersecting lines and holes, cutting fixed-angle grooves, fixed-point grooves, variable-angle grooves, non-circularity and eccentricity compensation of pipes.
Product characteristics

Memory Function of Various Cutting Programs

Cutting Data Track Holding Function

Automatic Demonstration Function of Trajectory

Copying Tracking Function

Various Speed Control Functions

Cutting Function of Slot Surface with Fixed Angle and Variable Angle

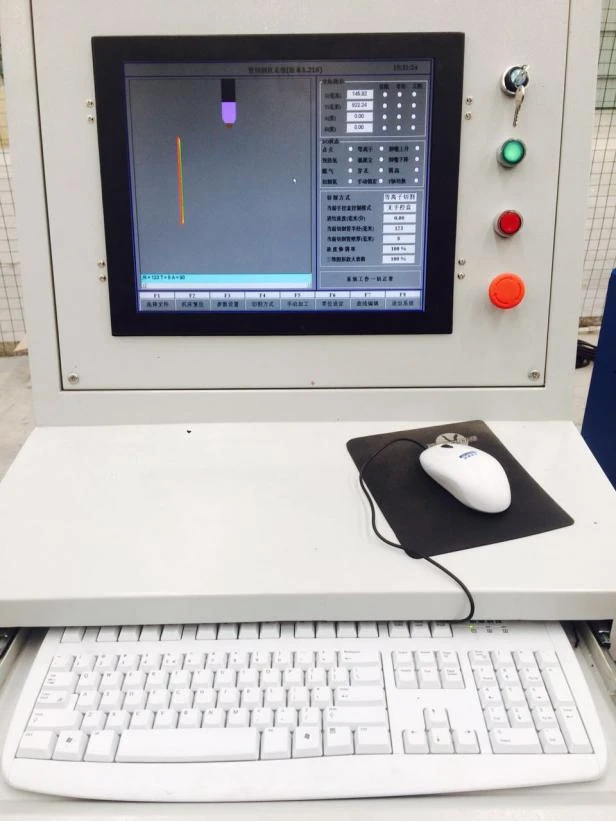

Visual and Concise Display Interface

High Cutting Accuracy

Product characteristics
Product Model
QGVI-500
QGVI-B500
Number of CNC Control Axis
Three Axis and Two Linkages
Five Axis and Four Linkages
Spindle rotation (axis code A)
Free Rotation

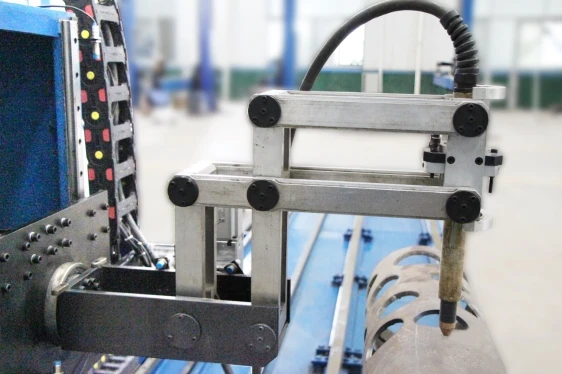

Move The Torch Left and Right (axle code X)
Optional (depending on pipe length)
Move The Torch up and Down (axle code Z)
≤210mm
≤300mm
The Cutting Torch Swings Left and Right (axle code U)
/
±60°
Swing Before and After Cutting Torch (axle code V)
/
±60°
Cutting Diameter
50-500mm
Cutting Pipe Length
500-12000mm
Cutting Tube Thickness
Flame
5-50mm
Plasma
According to The Selected Plasma Power Supply
Cutting Speed
50-1500mm/min
Moving Speed
6000mm/min
Motion Accuracy
±0.2
Cutting details

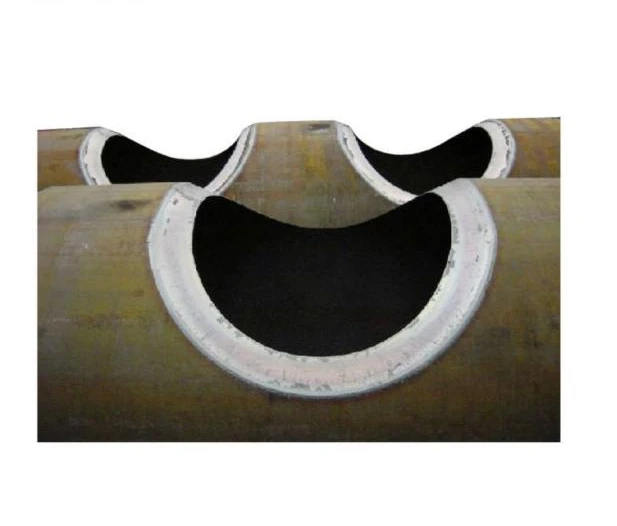

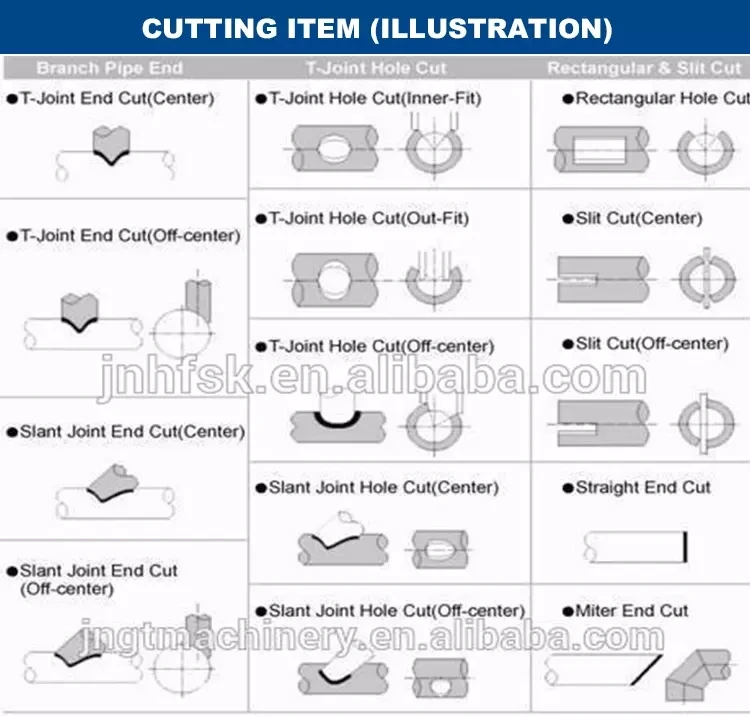

The max angle of bevel: Vertical and horizontal direction ± 60 ° Minimum cross-cutting angle: ± 30 ° Cutting speed automatic stepless variable speed regulation Continuous Cutting Set Fixed-point and fixed-angle bevel settings Vertical pipe and slope-side cutting Home bias pipe opening face cut Home bias pipe opening eccentric cutting surface Mother pipe rectangular cutting surface Mother trough control center, cutting eccentric Orthogonal mother riding a tube-type cutting openings Orthogonal mother tube insertion opening-cutting Orthogonal and oblique cut-side branch pipe Orthogonal and oblique eccentric mother pipe cutting Orthogonal and oblique eccentric cutting branches Multi-tube mother intersection pipe opening face cut Multi-pipe intersection cut-side branch pipe Possession of ocean engineering at both ends of the tube cutting bias Tube welding elbow, "shrimp" oblique section cutting pipe ovality error automatic tra
Standard Configuration
Serial number
Key Component Name
Company
Number
1
Control system
Set
1
2
Arm system
Set
1
3
Driving device
Sets
3/5
4

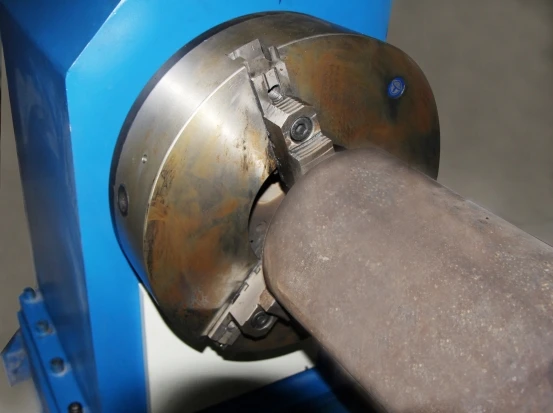

Clamping device
Set
1
5
Supporting device
Sets
3
6
Guide
Set
1
7
Pneumatic system
Set
1
8
Control cabinet
Set
1
9
Operator
Set
1
Recommend Products

1.Desktop cutting machine

  It can cut metal sheet and any pattern.

2.Circular Seam Welding Machine

  It can weld metal containers and welded metal structures by girth welding.

3.Welding Manipulator

  It can weld metal containers and welded metal structures in various ways.
Company Profile
  Jinan GT International Trade Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing and sales. It has been engaged in cutting and welding industry for more than 10 years, and has exported Chinese products to many countries.
  We adhere to the business philosophy of "building a grand blueprint for a manufacturing power". We cooperate with factories for a long time and supply directly from factories. We always offer the best price and diversified choice. You can get the best quality and the lowest price machine through us.
  We have multilingual salesmen, and have more than 10 years of experience in the industry. We are very familiar with the products of related industries. Our products cover a wide range of areas, you can provide workpiece size and material, we will recommend the most appropriate solution for you, save you and factory communication time, save labor costs. Of course, we can also provide customized machine services for you. Jinan Composition International Trade Co., Ltd. is dedicated to serving you.
Why Choose Us

After-sale service:

1. Warranty one year

2. Engineers available to serve machine overseas

3. Strict factory inspection

4. Complete equipment manual

5. Online instruction

6. Provide all components, spare parts and consumptive material
