Welding Thickness 0.8-6mm Automatic Pipe Seam Welding Machine

FOB Reference Price:Get Latest Price
$5,500.00 - $11,700.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Z F 1000 Z F 1500 Z F 2000 Z F 3000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HUAFEI CNC
Forming Time:
Standard
Welding Mode:
Tig/Mig/MAG/SAW(optional)
Welding Diameter:
100-1000mm(normal), 100-1000mm
Dimensions:
525-3075mm(normal)
Weight:
According to Machine Size
Usage:
Seam Welding
Voltage:
380V
Power(W):
3000w
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Product name:
Welding Thickness 0.8-6mm Automatic Pipe Seam Welding Machine
Welding Method:
TIG MIG MAG SAW PAW
Welding Material:
Carbon Steel; Stainless Steel; Aluminum
Welding Speed:
0.2-2.2m/min
Welding Thickness:
0.8-6.0mm
Welding Length:
≤3000mm
Control Mode:
PLC
Clamping Mode:
Pneumatic key type press
Supply Ability
Supply Ability:
150 Set/Sets per Month Welding Thickness 0.8-6mm Automatic Pipe Seam Welding Machine
Packaging & Delivery
Packaging Details
Wooden case. Welding Thickness 0.8-6mm Automatic Pipe Seam Welding Machine
Port
Qingdao; Welding Thickness 0.8-6mm Automatic Pipe Seam Welding Machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Welding Thickness 0.8-6mm Automatic Pipe Seam Welding Machine
Products Description
The longitudinal seam welding for the cylinder is docked with the longitudinal seam of the flat plate. Adapt to gas welding, submerged arc welding, argon arc welding and other welding methods. Single-sided welding and two-sided forming ensure welding quality. There is a back gas protection device to protect the workpiece from deformation during the welding process and the appearance of the reverse weld. The equipment adopts PLC control to realize automatic welding operation! Widely cited in petrochemical, pressure vessels, hot water tanks, electric power construction, stainless steel products and other industries.

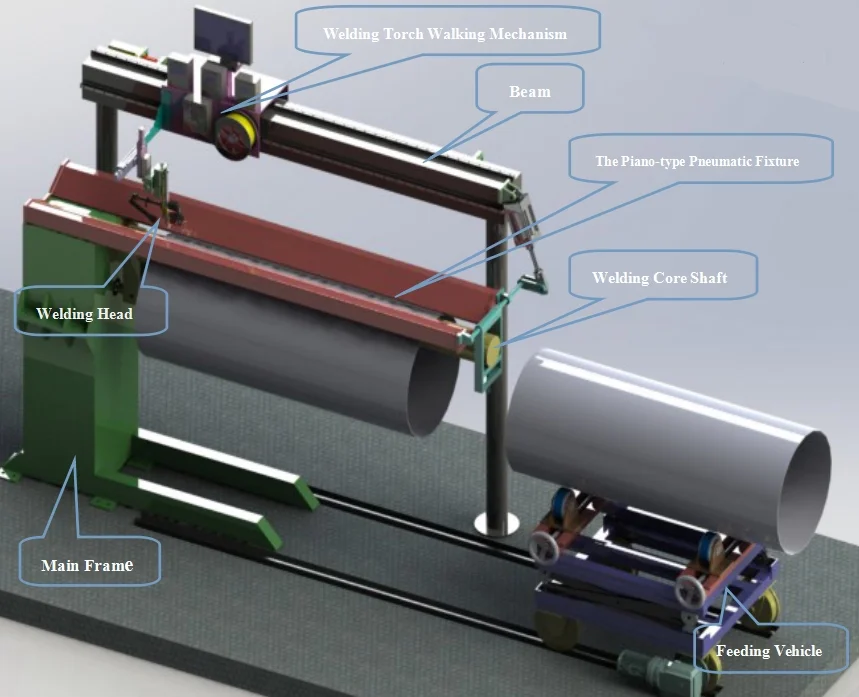

1. Longitudinal seam welding machine is professionally used for straight seam welding of various metal products. It has strong maneuverability, simpleness, convenience and reliability. It has smooth welding, good consistency, high efficiency andbeautiful weld seam. 2. The equipment is mainly used in stainless steel sheet, carbon steel sheet galvanizes zinc steel,cylinder longitudinal seam automatic welding work. 3. The longitudinal seam welding for the cylinder is docked with the longitudinal seam of the flat plate. It is suitable forvarious welding methods such as gas shielded welding andargon arc welding autolysis (filling). 4. The equipment is consists of longitudinal seam welding machine body, welding power, and electrical control system. 5. The automatic welding machine uses horizontal welding structure, that is, the work piece position is relatively fixed, the torch driven by the motor reducer to move the form of horizontal movement in order to achieve flat welding seam straight seam welding. 6. The welding process control is controlled by the programmable controller (PLC), automatic and manual adjustment 7. Welding gun speed (welding speed) speed control by the inverter, can achieve stepless energy-saving speed, stable and reliable, low failure rate.
Product characteristics

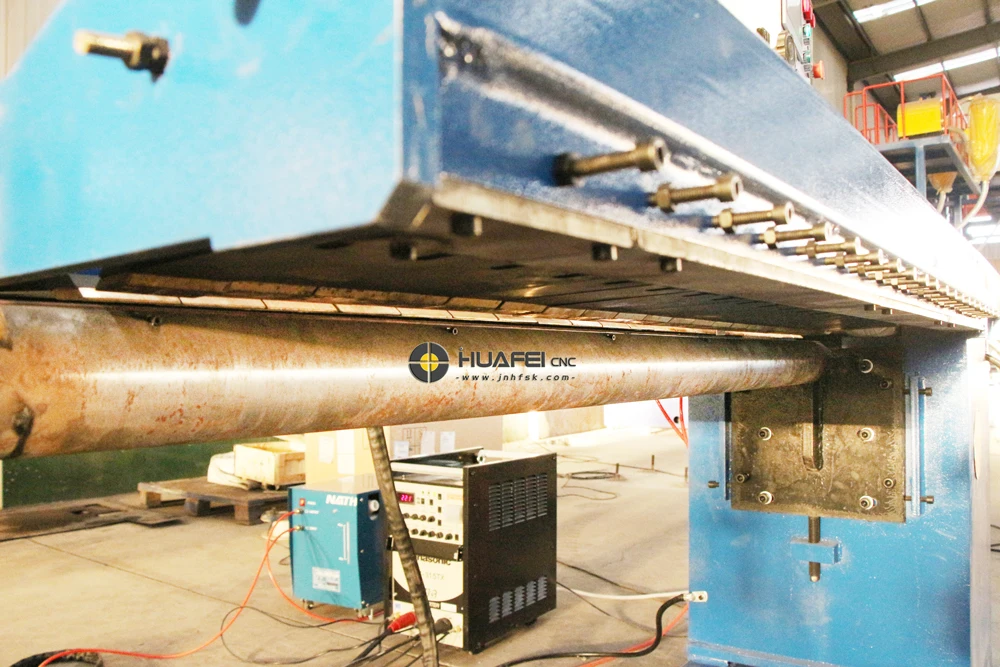

Main Frame
Frame welded structure to meet the stability of equipment for long-term use. The base can be fixed with a foot screw.

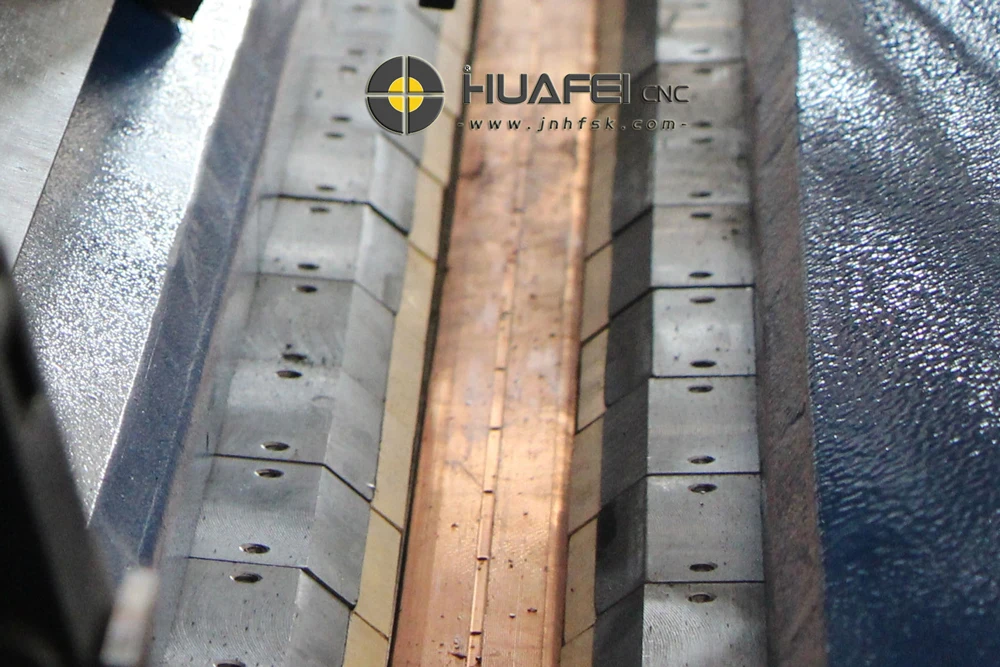

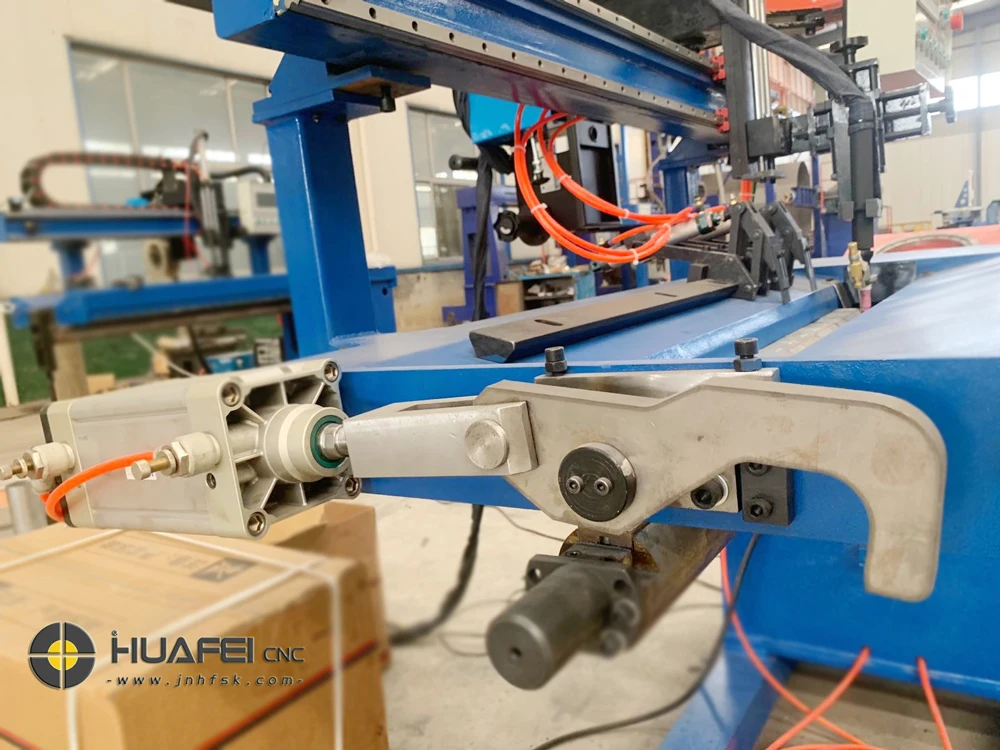

Pneumatic clamping device
  The key-pressing mechanism provides uniform and stable working clamping and cooling. The workpiece is uniformly deformed by force. Provides a reliable guarantee for high quality, efficient and distortion free welding of thin-walled workpieces.
Mandrel
  It can meet the welding needs of different plate thickness.

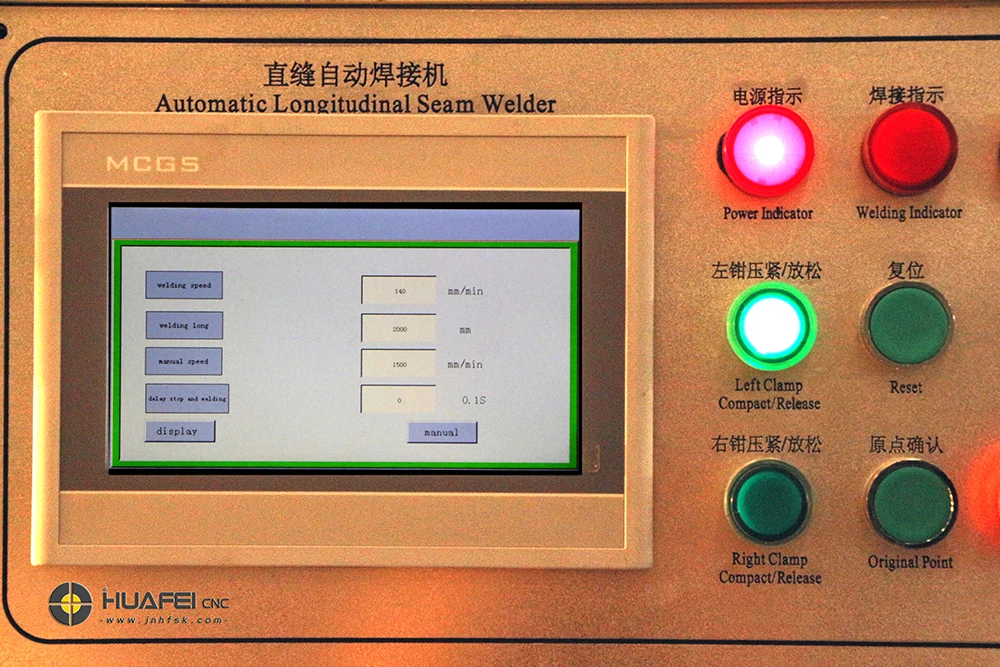

Operation panel
Multiple languages are optional and easy to operate.
Back gas protection
  The back process of the welding process protects the air from reacting with the air to ensure the beautiful appearance of the weld.
Product Paramenters
Model No.
ZF-1000
ZF-1500
ZF-2000
ZF-3000
Welding length(mm)
1000
1500
2000
3000
Min. diameter(mm)
φ100
φ120
φ160
φ270
Max diameter(mm)
φ1000
φ1000
φ1000
φ1000
Welding thickness
0.8-6mm
0.8-6mm
0.8-6mm
0.8-6mm
Welding speed
150-1500 mm/min
150-1500 mm/min
150-1500 mm/min
150-1500 mm/min
Speed control
Stepless speed control



Transmission mode
Guide rail+gear and rack



Product Display

If the above machines can not meet your needs, please contact us, professional engineers to provide you with the best solution and quotation!

Recommend Products

1.Welding Manipulator

  It can weld metal containers and welded metal structures in various ways and seams.

2.Circular Seam Welding Machine

  It can weld metal containers and welded metal structures by girth welding.

3.Flat Plate Welding Machine

  Mainly used for plate welding, automatic longitudinal seam welding in various ways.
Company Profile
Jinan GT International Trade Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing and sales. It has been engaged in cutting and welding industry for more than 10 years, and has exported Chinese products to many countries.

  We adhere to the business philosophy of "building a grand blueprint for a manufacturing power". We cooperate with factories for a long time and supply directly from factories. We always offer the best price and diversified choice. You can get the best quality and the lowest price machine through us.

  We have multilingual salesmen, and have more than 10 years of experience in the industry. We are very familiar with the products of related industries. Our products cover a wide range of areas, you can provide workpiece size and material, we will recommend the most appropriate solution for you, save you and factory communication time, save labor costs. Of course, we can also provide customized machine services for you. Jinan Composition International Trade Co., Ltd. is dedicated to serving you.

After-sale service

1. Warranty one year

2. Engineers available to serve machine overseas

3. Strict factory inspection

4. Complete equipment manual

5. Online instruction

6. Provide all components, spare parts and consumptive material

FAQ

1.Does your company accept customized offer, we have special need.

  HUAFEI CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.



2.What certificate the machine in your company get?

We’ve passed the ISO9001 Quality System Approval and CE Certification. (ISO9001 CE link)



3.Do you have price list for optional configuration?

 We have various configurations and so many different specifications, so we can’t offer you price list. Please contact our sales engineer if you’re interested in certain specific configuration.(Contact us for quotation)



4.If your engineer come to our country to fix the machine and do some training, how much will it cost?

  The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as visa fee. But it will depends for a large equipment or installation and debugging of the whole line.
