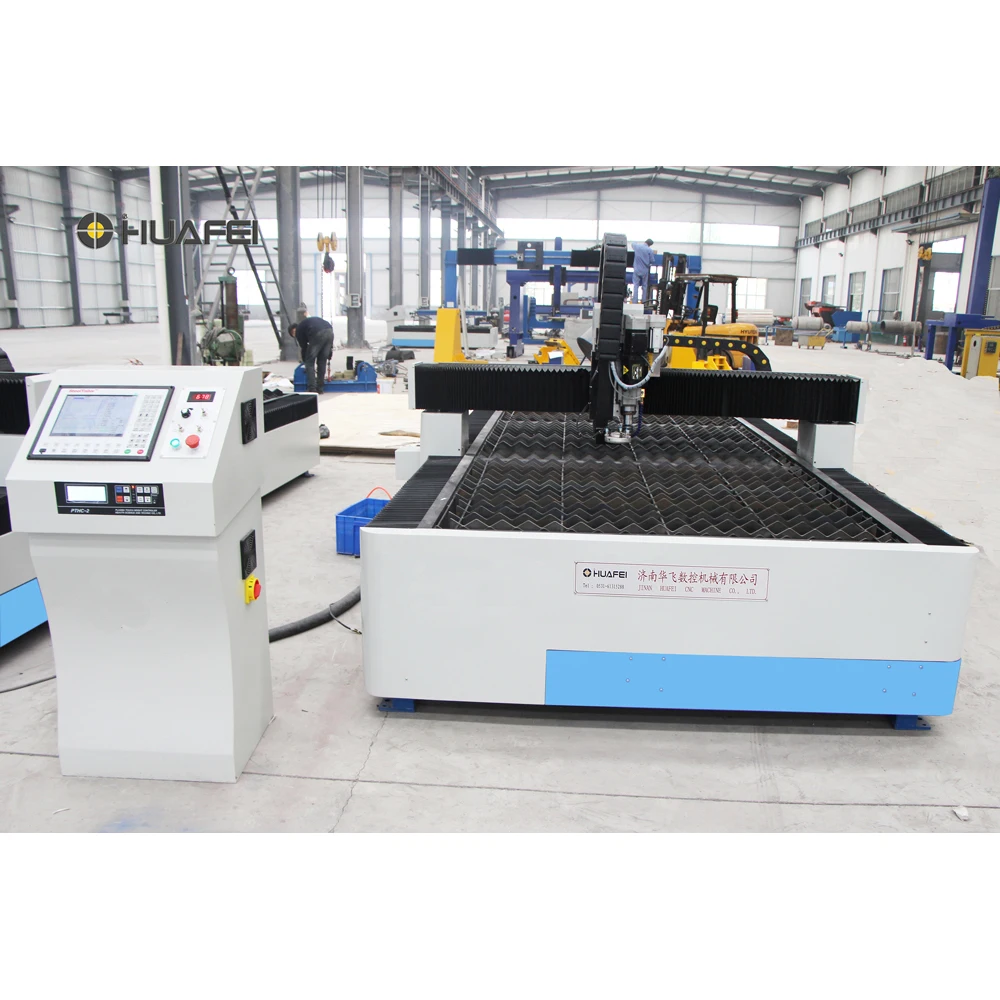

Durable Quality Table Type CNC Cutting Machine Table Type Flame Plasma Cutter

FOB Reference Price:Get Latest Price
$5,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QGIII 1530 QGIII 1840
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Color (Min. Order: 1 Sets)
Samples - $5,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Type:
CNC Plasma Cutters
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI CNC
Voltage:
380V 50HZ or Customized
Rated Power:
Standard
Dimension(L*W*H):
4800x21x1600 or 4800x2400x1600
Weight:
According to machine model
Certification:
CE ISO SGS
Warranty:
1 Year
Year:
NEW
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Competitive Price
Name:
Table Type CNC Cutting Machine Table Type Flame Plasma Cutter
Color:
Bule or Customized
Cutting Mode:
Plasma or flame
Effective Cutting Range:
1530 or 1840
Cutting Speed:
0 - 6000mm/min
Plasma Cutting Thickness:
Depends on the power source
Cutting Work Table:
Tank-water or Breathing dust proof work table
Driven System:
Single/Double-side servo driven system

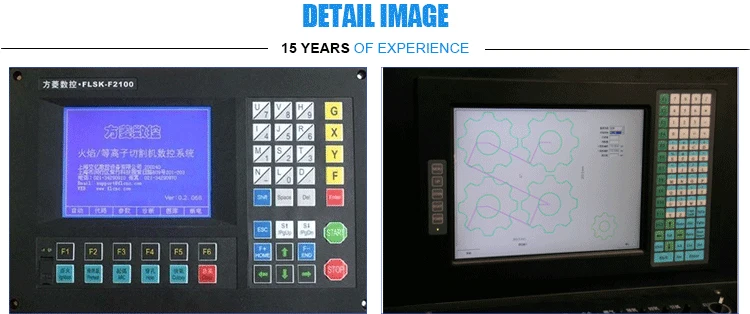

CNC System:
MicroEdge Pro or F2300/2500
Supply Ability
Supply Ability:
100 Set/Sets per Year Table Type CNC Cutting Machine Table Type Flame Plasma Cutter
Packaging & Delivery
Packaging Details
Seaworthy Package With Film and Wooden Case. Durable Quality Table Type CNC Cutting Machine Table Type Flame Plasma Cutter
Port
Qingdao Port China, Durable Quality Table Type CNC Cutting Machine Table Type Flame Plasma Cutter
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description

Durable Quality Table Type CNC Cutting Machine Table Type Flame Plasma Cutter

Product Description

 ------------------------------------ Product  Description----------------------------

  Intergrating CNC technology,with mechanical running and thermal cutting technology, the 3 CNC cutting machine is an effective, percise and reliable cutting equipment, outstanding interface makes operation easier to use.





Features

 Features:

01



  Advanced integrated structure, compact and solid and stable; horizontal light-type structure and double-side driving servo system guarantees an excellent running performance.

02





  Japan Panasonic servo system can detect location and enjoys high precision, wide speed range and short acceleration time.

03



  Optional dust proof work table or smoke removing device for a clean working environment.



04





  Optional plasma power sources for different materials cutting.

05

  China top brand or imported linear guide rails for transmission, precise and stable; custom-made driving rack and gear with surface carburized and quenched from professional manufacturers, solid and presice, German NEUGART planetary reducer for transmission which is characterized of bigger torque, low gap and free maintenance.

06

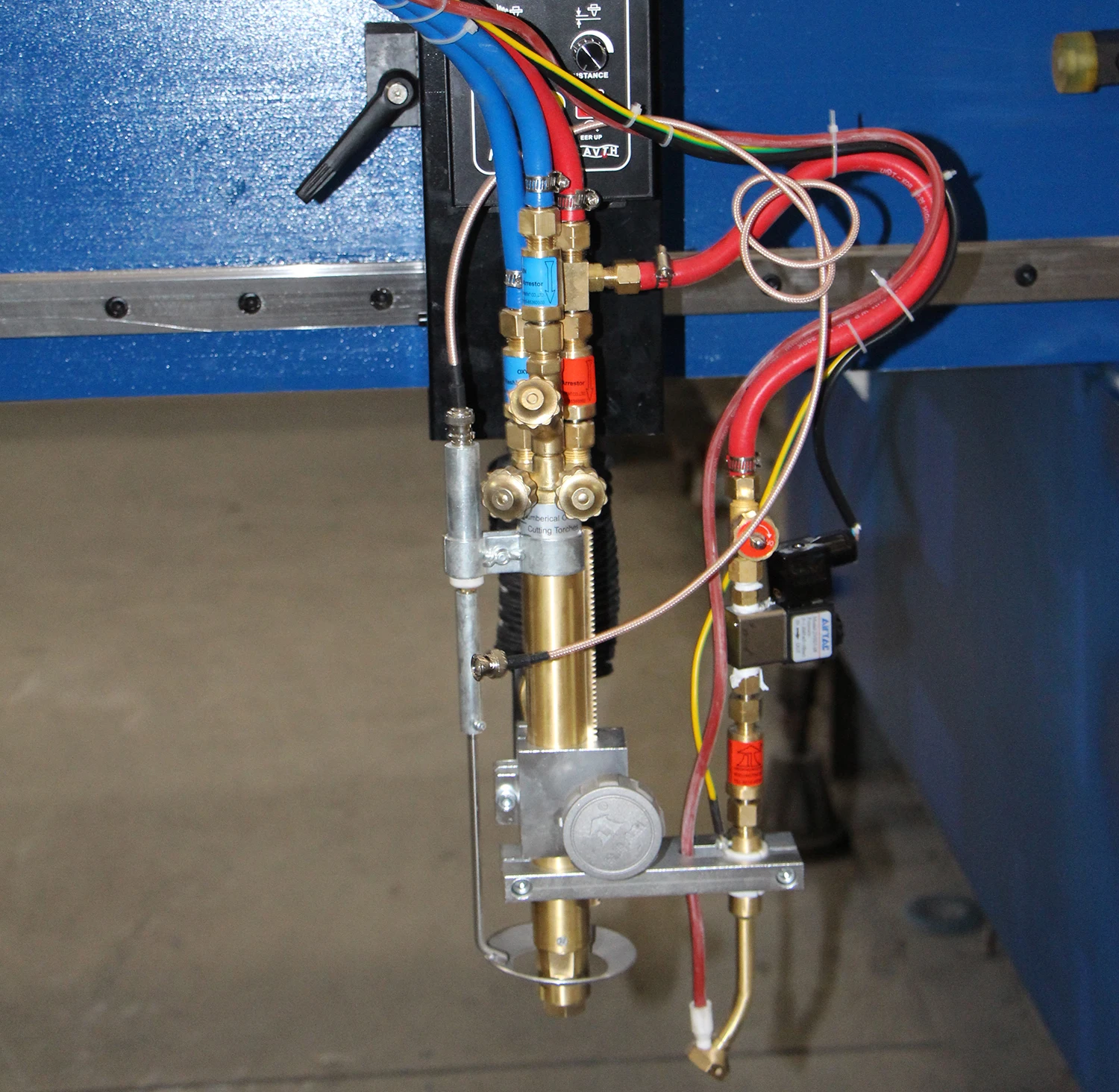

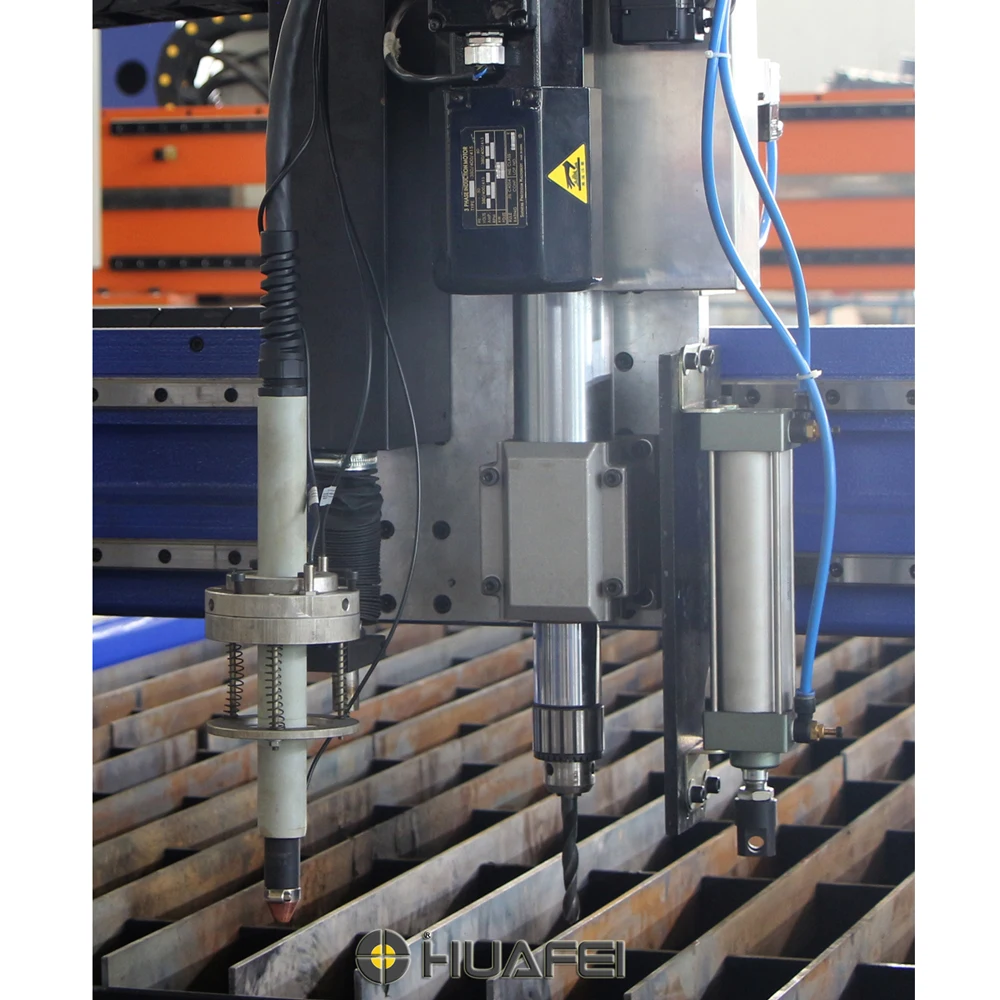

Optional gun head: According to different cutting materials and thickness, plasma gun head and flame gun head can be selected to meet your needs.

1. China top brand and imported linear guide rails for tansmission, precise and stable. The machine equips German NEUGART reducer for transmission which has big torque, low gap and free maintenance.

2.Japan brand servo system applys in this equipment.

3.Optional dust proof machine or factory set water tank for better work environment.

4.Optional plasma power source for different materials cutting.

Detail Images

 Detail Images:



  Advanced structural design which is compact &good rigidity and stable working.

light-duty structural design in horizontal, good movement performance. Double side driving system in longitudinal.

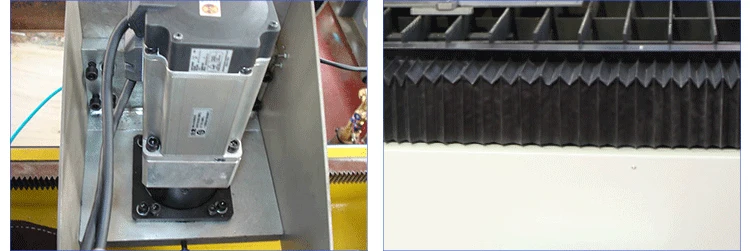

 Servo System:Adopt panasonic servo system which can detect location, high working precision, wide speed range and short acceleration time.

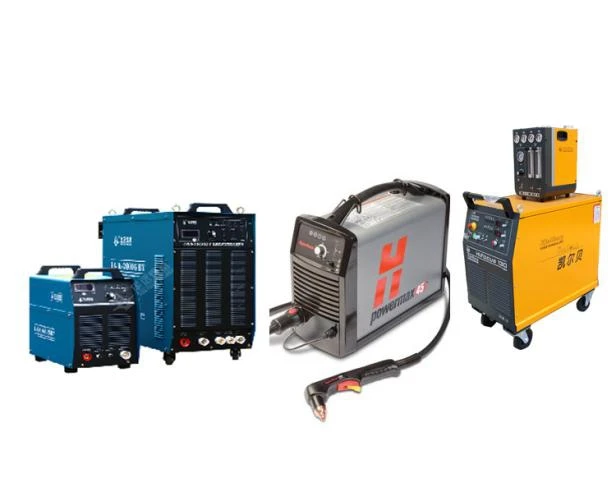

  Dust removal table and smoke dust treatment device are optional for a clean working environment Many kinds of plasma power source can be chosen to satisfy different material cutting.



  Domestic top brand or imported linear guide rails for transmission, driving rack and gear are custom-made from professional manufacturers.



Collection shop

Leave your request behind

Professional engineers provide you with solutions





Product Parameters

 Product Parameters:



Durable Quality Table Type CNC Cutting Machine Table Type Flame Plasma Cutter

Model No.15301840
Cutting width(mm)15001800
Overall width(mm)20002400
Cutting lengrh(mm)30004000
Overall length(mm)40005000
CNC systemMirco EDGE pro or famous domestic brand or as per your requirement
Plasma powerUSA famous brand or according to your requirements
Cutting thicknessRefer to realted plasma power source
Cutting working tableNormal or dust removal table

Mechanical Accuracy
1. Installation accuracy of guide rail:

1) Straightness accuracy of main rail ±0.2mm/10m

2) levelness between two rails ±0.5mm/10m

3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length

4) Parallelism between two rails <±2mm/ rail space

2. Machine precision:

a. Longitudinal effective stroke >nominal size 20mm

b. Transverse effective stroke > nominal size 10mm

c. Linear positioning accuracy ±0.1mm/10m (1000×1000mm Comprehensive graphics detection) GB deviation≤±0.3mm

d. Linear repeat accuracy ±0.4mm/10m

e. Torch stroke ≤170mm

f. Cutting speed ±5% of setting speed

g. Automatic lifting precision ±0.5mm

3. Comprehensive machine precision:

a. Length deviation(four sides) 0.3mm

b. Diagonal deviation 0.3mm

c. Back to the origin of the deviation 0.2mm

d. Diagonal straightness accuracy 0.3mm

e. Intersection deviation 0.3mm

f. Linear deviations 0.2mm

g. Entire machine positioner precision 0.1mm

Relate Products

Relate Products:

Gantry-type CNC Cutting MachineDrilling&Cutting Combined MachineCNC Beveling Cutting Machine

Company Profile:

Jinan GT Machinery Company has been engaged in the cutting and welding industry for more than seven years, and has exported to various countries in the world.

All the employees are senior salesmen who have contact with variety of suppliers and know about most of the machines.

We have cooperated with factory all year round, can offer lowest price.

The machine can be customized according to customer requirements.



Whatsapp/Mobile:188 6641 1029

Wechat:miK682414

Office-tel:+86 0531 81203188

1. Warranty one year

2. Engineers available to serve machine overseas

3. Strict factory inspection

4. Complete equipment manual

5. Online instruction

6. Provide all components, spare parts and consumptive material

FAQ

FAQ:

1.Does your company accept customized offer, we have special need.

  HUAFEI CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.



2.What certificate the machine in your company get?

We’ve passed the ISO9001 Quality System Approval and CE Certification. (ISO9001 CE link)



3.Do you have price list for optional configuration?

 We have various configurations and so many different specifications, so we can’t offer you price list. Please contact our sales engineer if you’re interested in certain specific configuration.(Contact us for quotation)



4.If your engineer come to our country to fix the machine and do some training, how much will it cost?

  The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as visa fee. But it will depends for a large equipment or installation and debugging of the whole line.
