Jinan Huafei Automatic Welding Manipulator

FOB Reference Price:Get Latest Price
US $10,000-18,600 / Sets | 1 Set/Sets (Min. Order)
Model Number:
auto welding machine
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Elevation Speed:
850-1150mm/min
Vertical Travel(mm):
2-8m
Horizonal Travel(mm):
2-8m
Application:
Welding
Place of Origin:
China (Mainland)
Brand Name:
HUAFEI
Weight:
2t
Dimension(L*W*H):
depend on model
Power(W):
standard
Certification:
CE/ISO
Warranty:
1YEAR
After-sales Service Provided:
Engineers available to service machinery overseas
type:
Jinan Huafei Automatic Welding Manipulator
boom stroke:
2000mm-8000mm
column stroke:
2000mm-8000mm
pillar rotary:
+-180 degree
welding method:
TIG MIG MAG SAW
power source:
lincoln or miller
welding diameter:
600-8000mm
welding speed:
0.2-2.2m/min
usage:
pipe cylinder tank boiler pressure vessel seam welding
voltage:
380V
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case, or customized-Jinan Huafei Automatic Welding Manipulator
Port
Qingdao-Jinan Huafei Automatic Welding Manipulator
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 20 To be negotiated

Jinan Huafei Automatic Welding Manipulator





Product Description

 1. Features:

1) Welding manipulator is the automatic welding equipment work with welding power. It can be used together with welding rotator or welding positioner, and widely used in industries as boiler, ship-building, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.



2) Our welding manipulator features in advanced structure, multi-function, and easy to operate, and other equipment to facilitate linkage control, which increased the production capacity and assured the quality.



3) The automatic welding manipulator consist of light, standard, and heavy type according to weight-bearing, effectively stretching and up/down stroke.

4) The automatic welding manipulator is design for four different structure type: Fixed type, fixed rotation type, fixed movable type and movable rotation type.



.jpg



2. Technical parameter:

Model No.

HC-2*2

HC-3*3

HC-4*4

HC-5*5

HC-6*6

HC-7*7

HC-8*8

Up/down stroke of boom(m)

        2

3

4

5

6

7

8

Optional up/down stroke of boom(m)

     2-4

2.5-5

3-7

3-8

4-8

4-8

4-8

Rotating angle of the column(°)

±180°

The up/down speed of boom(mm/min)

850

1150

Expansion speed of boom(mm/min)

140-1400

Rotating speed of column(r/min)

0.2

The total load of boom

100

200

300

400

500

500

500

Distance C to C of the track(optional)

2000/2500

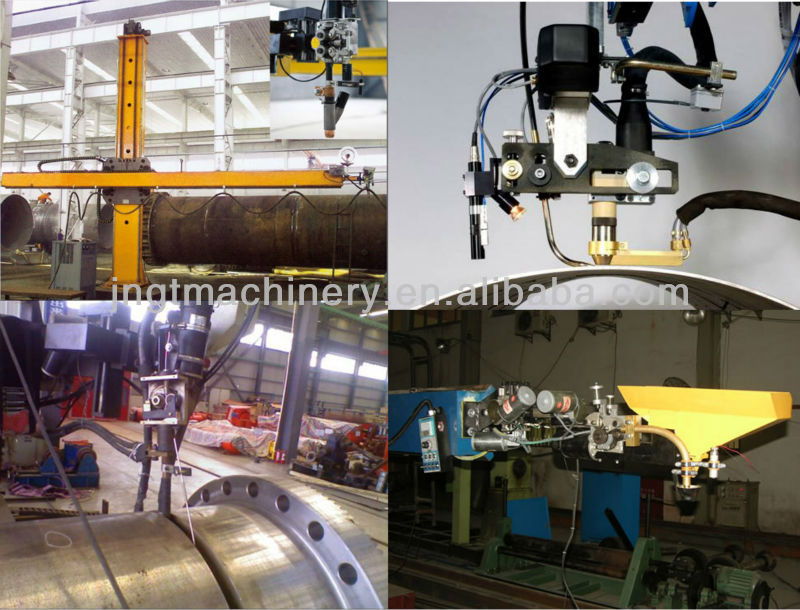

3. Welding method is customizable, such as: Tig, Mig, SAW and plasma welding, etc.

.jpg



4. Single wire and single arc head



.jpg



5. Double wire and arc welding head:

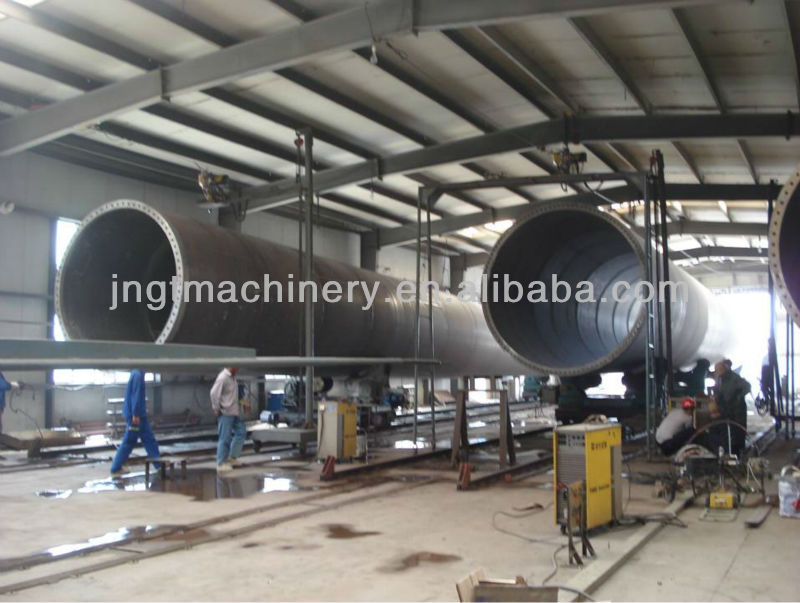

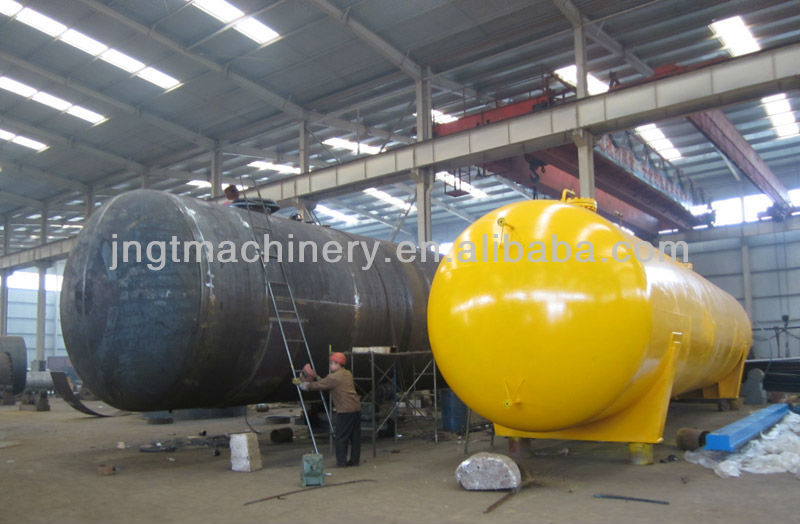

6. Applications:




.jpg



7. Package:








Factory:



 For more details, please contact us.

                My skype:huafeicnc
