CNC Plasma Cutting Machine For Metal Tank

  • >=1 Sets
    US $2000.00
Model Number:
QG VI
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Voltage:
380V
Rated Power:
5.5Kw
Dimension(L*W*H):
Depend on model
Weight:
1-20t
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Product name:
CNC Plasma Cutting Machine For Metal Tank
Control system:
USA famous brand or Customized
Drive mode:
AC servo motor
online service:
24 HOURS
Factory or not:
FACTORY
Cutting Pipe length:
≤12000mm
Max load pipe weight:
6000KGS
CNC system:
original import IPC
Portrait Moving Error:
≤±0.2mm/1000mm
Supply Ability
Supply Ability:
100 Set/Sets per Day CNC Plasma Cutting Machine For Metal Tank
Packaging & Delivery
Packaging Details
Wooden box or customized-CNC Plasma Cutting Machine For Metal Tank
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 30 To be negotiated

CNC Plasma Cutting Machine For Metal Tank





Product Description

 Parameter                              plasma cnc pipe cutting machine

1.Pipe diameter applicable:       Φ50-Φ600/800mm

2.Cutting Pipe wall thickness:   1-25mm (plasma cutting) or as per plasma po5-60mm(flame cutting

3. Cutting speed: plasma cuttingspeed: 50—3800 mm/mflame cutting speed: 50-750mm/min

4. Number of axis under control:     3-5 Axes Work piece axis of rotation(X)

Cutting the first work piece along the axis of axial movement(Y)

Cutting torch along the axial swing axis work piece (Z)\Cutting torch along the work piece swing radial axis (W)

Cutting the first spindle axis vertical take-off and landing (U)

Cutting nozzle strength out and draw back axis (V)

5.Angle of bevel:                                plasma cutting±45°(adjustaflame cutting:±60°(adjustable)

6. Cutting Pipe length:                      ≤12000mm

7. Max load pipe weight:                   6000KGS

8. CNC system:                                  original import IPC

9. Control way:                                    full CNC control with touch screen & HMI

10. Integrated precision of the machine:

Portrait Moving Error:                        ≤±0.2mm/1000mm

Turning Angle Error:                          ≤1° per 180°

Surface quality:                                   Clean and no dregs

Repeat positioning accuracy:          ≤±0.3mm



Cutting Item (Illustration)   plasma cnc pipe cutting mach

The max angle of bevel: Vertical and horizontal direction ± 60 °

Orthogonal mother riding a tube-type cutting openings

Minimum cross-cutting angle: ± 30 °

Orthogonal mother tube insertion opening-cutting

Cutting speed automatic stepless variable speed regulation

Orthogonal and oblique cut-side branch pipe

Continuous Cutting Set

Orthogonal and oblique eccentric mother pipe cutting

Fixed-point and fixed-angle bevel settings

Orthogonal and oblique eccentric cutting branches

Vertical pipe and slope-side cutting

Multi-tube mother intersection pipe opening face cut

Home bias pipe opening face cut

Multi-pipe intersection cut-side branch pipe

Home bias pipe opening eccentric cutting surface

Possession of ocean engineering at both ends of the tube cutting bias

Mother pipe rectangular cutting surface

Tube welding elbow, "shrimp" oblique section cutting

Mother trough control center, cutting eccentric

pipe ovality error automatic tracing

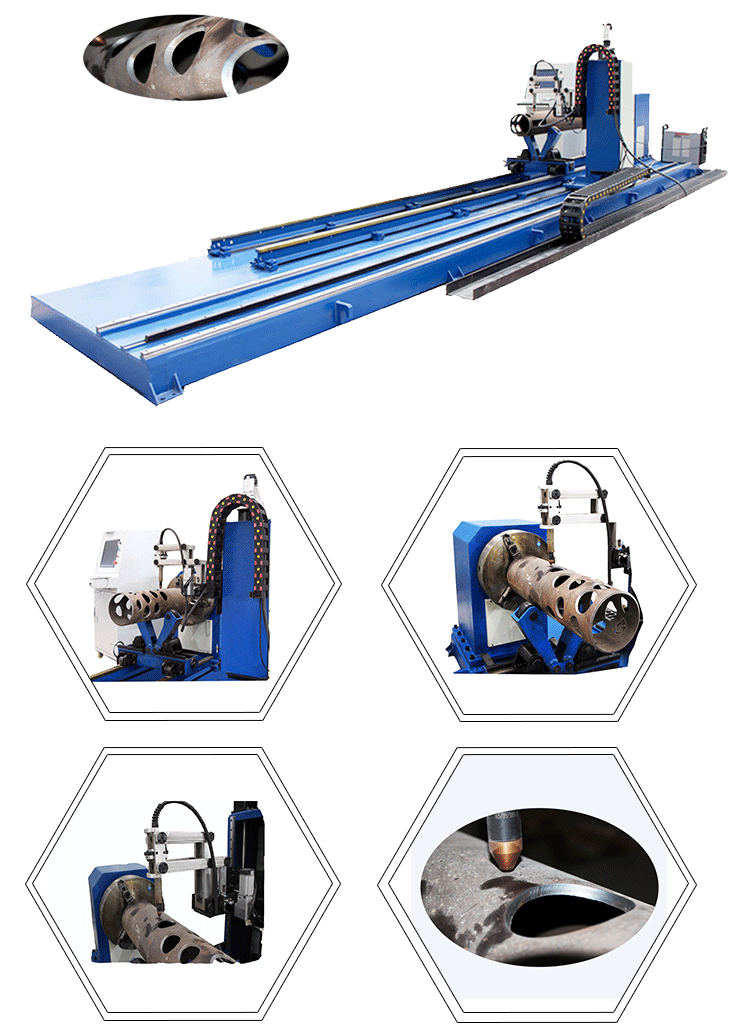

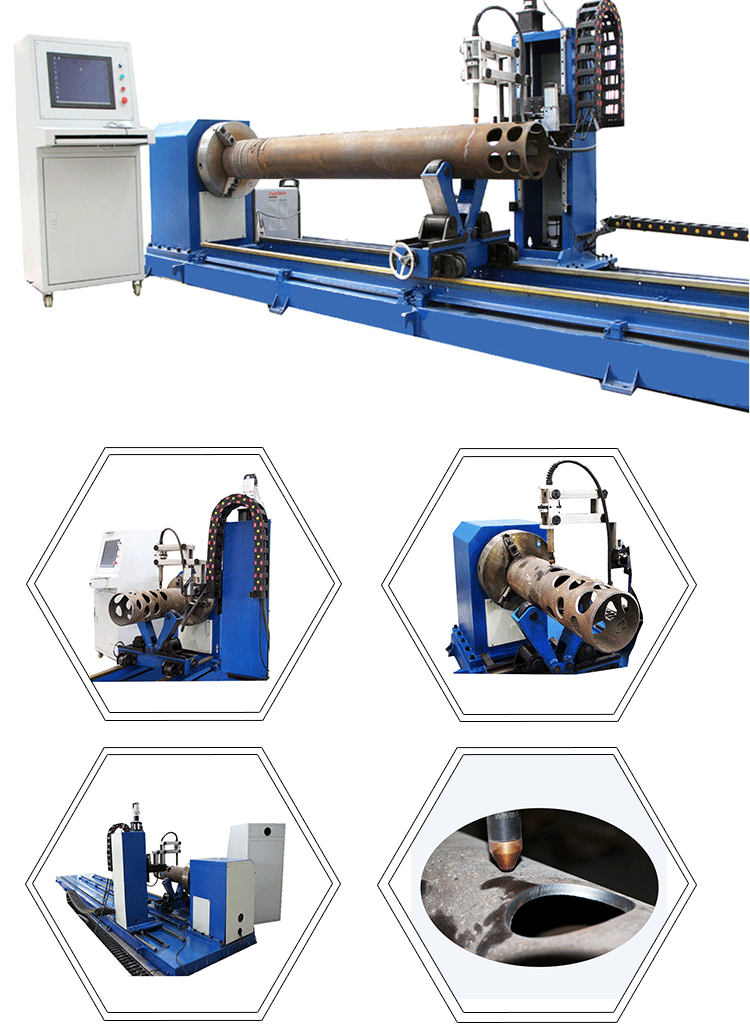

 product  display
