High Precision Automatic Welding Column And Boom

FOB Reference Price:Get Latest Price
US $8,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HC4 3*3
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HF
Voltage:
220V or customized
Current:
Alternating Current
Rated Capacity:
9 Kw
Rated Duty Cycle:
50-100%
Dimensions:
Depends
Weight:
depends on model
Usage:
Welding Machine
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Product Name:
High Precision Automatic Welding Column And Boom
control system:
PLC romote control

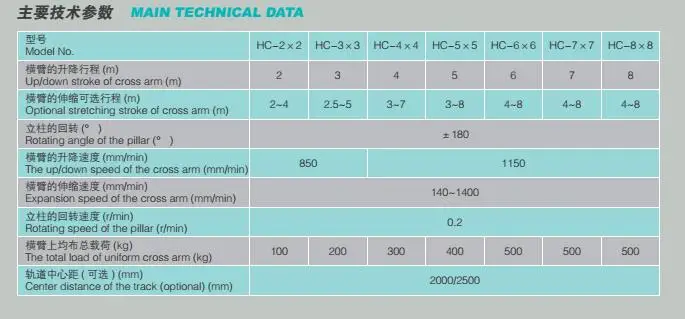

Up and down stroke of cross arm:
2-8m
optional streching stroke of cross arm:
2-8M
rotating angle of pillar:
+-180
The up/down speed of cross arm:
850/1150
Expansion speed of cross arm:
140-1400mm/min
Rotatin speed of the pillar:
0.2 r/min
The total load of uniform cross arm:
100-500kg
Center distance of the track(optional):
2000/2500
Supply Ability
Supply Ability:
200 Set/Sets per Year High Precision Automatic Welding Column And Boom
Packaging & Delivery
Packaging Details
normal wood box and film-High Precision Automatic Welding Column And Boom
Port
Qingdao-High Precision Automatic Welding Column And Boom
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 30 To be negotiated

High Precision Automatic Welding Column And Boom



Product Description

   Automatic welding manipulator for metal containers/ welded metal structure and a variety of welding ways. Widely used in wind power equipment, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair and many other industries. According to the user's requirements can install electric pallet, the telescopic arm, manned equipment and maintenance ladder, also supporting a variety of tracking and monitoring devices, oscillator , welding flux recovery delivery device. Welding manipulator adopts digital control systems, so it is easy operation, precise control and can conveniently linkage control with other equipment  .



    Automatic welding manipulator have three different type: small, medium, heavy.According to structures,  have four type: fixed, fixed rotary, fixed-mobile and mobile rotary .


Functions



 1) Welding manipulator is the automatic welding equipment work with welding power. It can be used together with welding rotator or welding positioner, and widely used in industries as boiler, ship-building, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.



2) Our welding manipulator features in advanced structure, multi-function, and easy to operate, and other equipment to facilitate linkage control, which increased the production capacity and assured the quality.



3) The automatic welding manipulator consist of light, standard, and heavy type according to weight-bearing, effectively stretching and up/down stroke.

4) The automatic welding manipulator is design for four different structure type: Fixed type, fixed rotation type, fixed movable type and movable rotation type.



5) Welding head mounted on one end of the beam, the beam can be moved up and down and left and right telescopic column by turntable mounted slewing ring back on, so that the column can be ± 180 ° manual rotation. Telescopic beams for frequency control, speed and stability without crawling, after extending a small deflection. Compatible with a variety of welding equipment, can be carried out in vivo outer rotary joints, longitudinal seam spiral seam welding, and welding and other internal and external surfaces. Widely used in boilers, pressure vessels, piping, shipbuilding and other manufacturing industries.








FAQ




Packaging & Shipping






Samples

 SAW welding sample.jpg
