500 Set/Sets per Year Straight Seam Welding Machine With Clamp
Packaging & Delivery
Standard wooden case-Straight Seam Welding Machine With Clamp
QINGDAO-Straight Seam Welding Machine With Clamp
1 - 1
To be negotiated

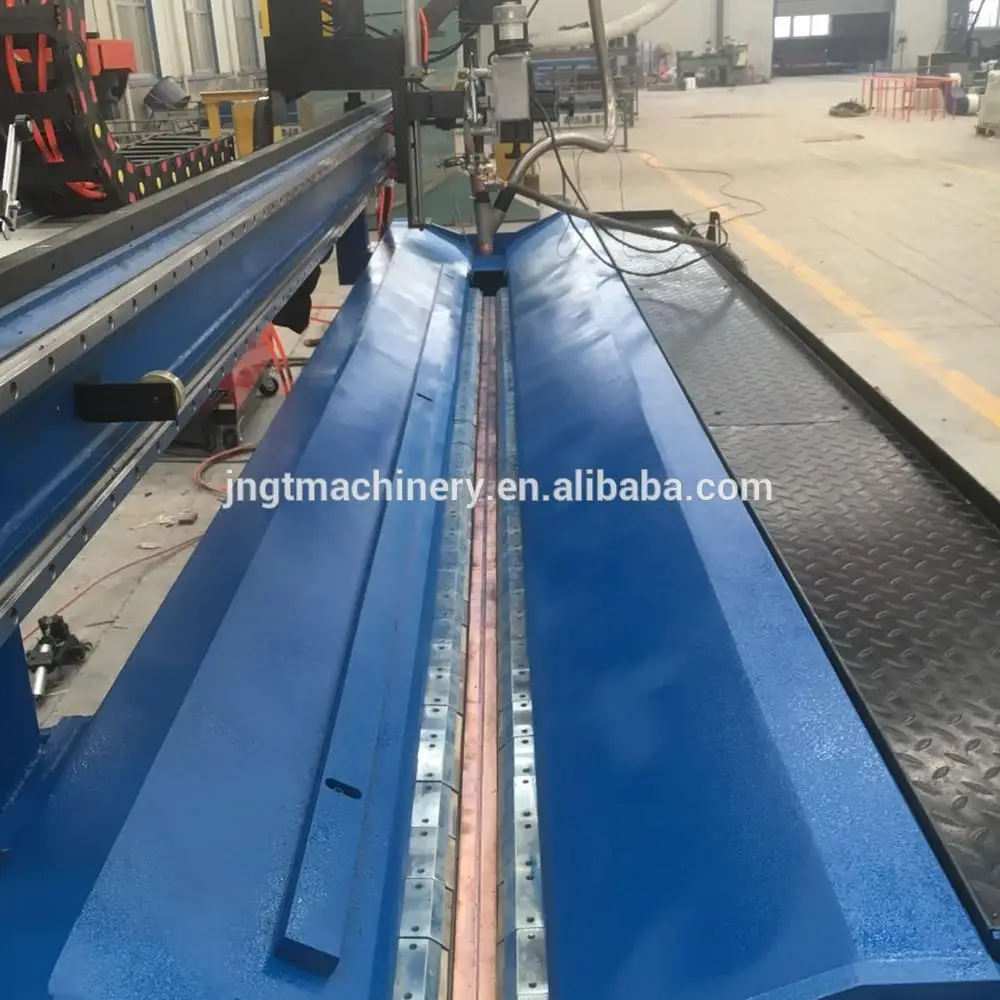

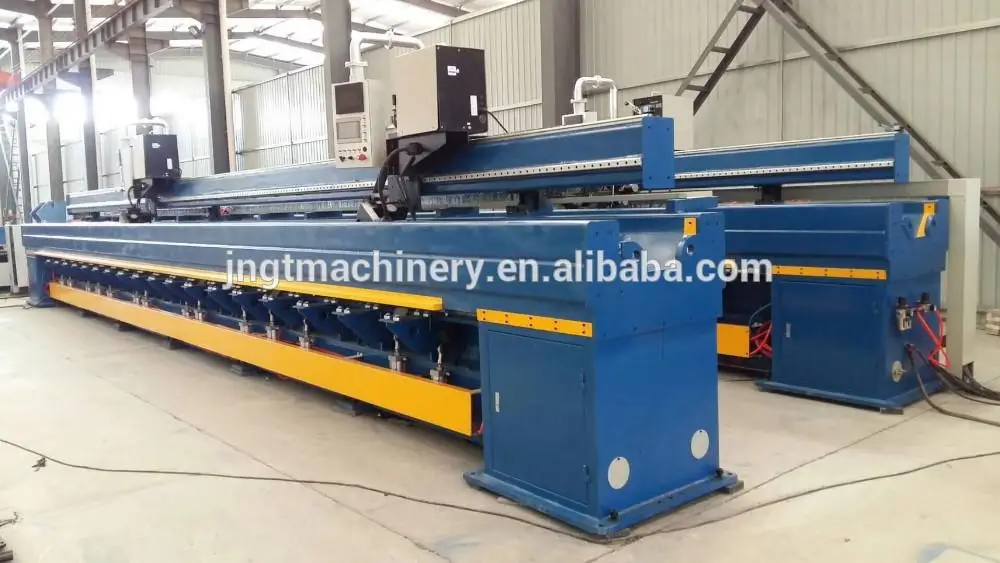

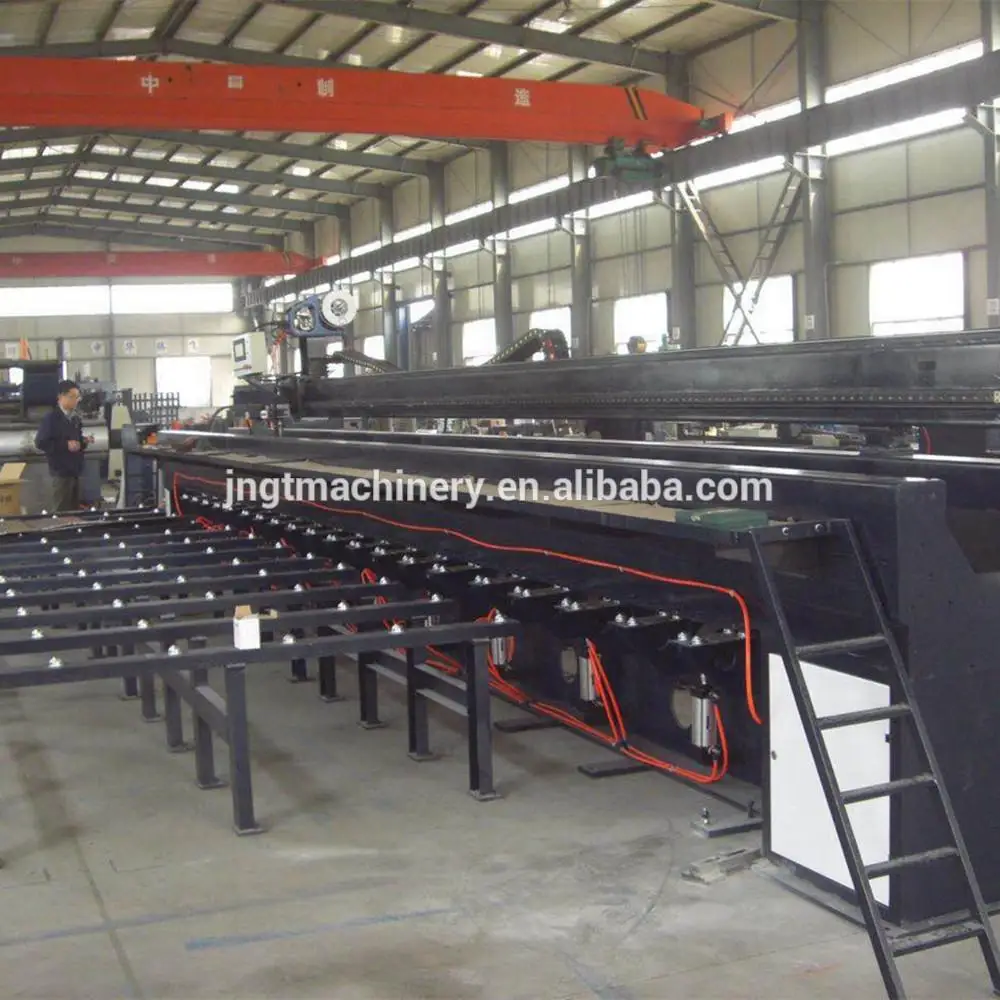

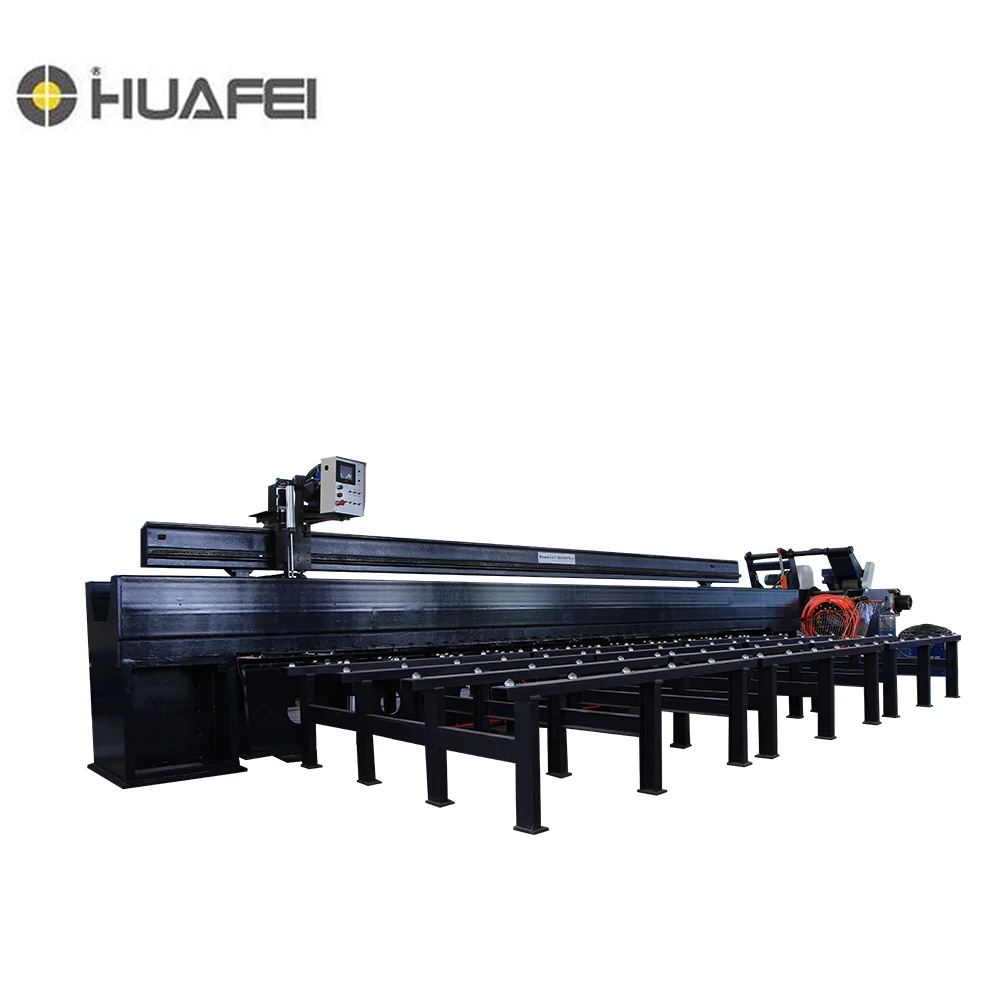

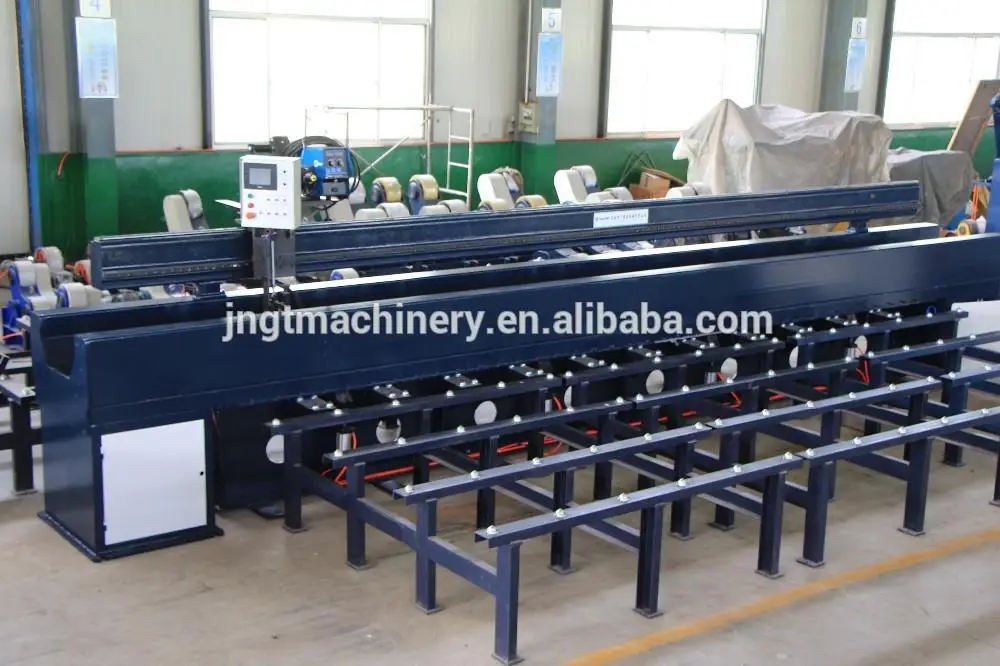

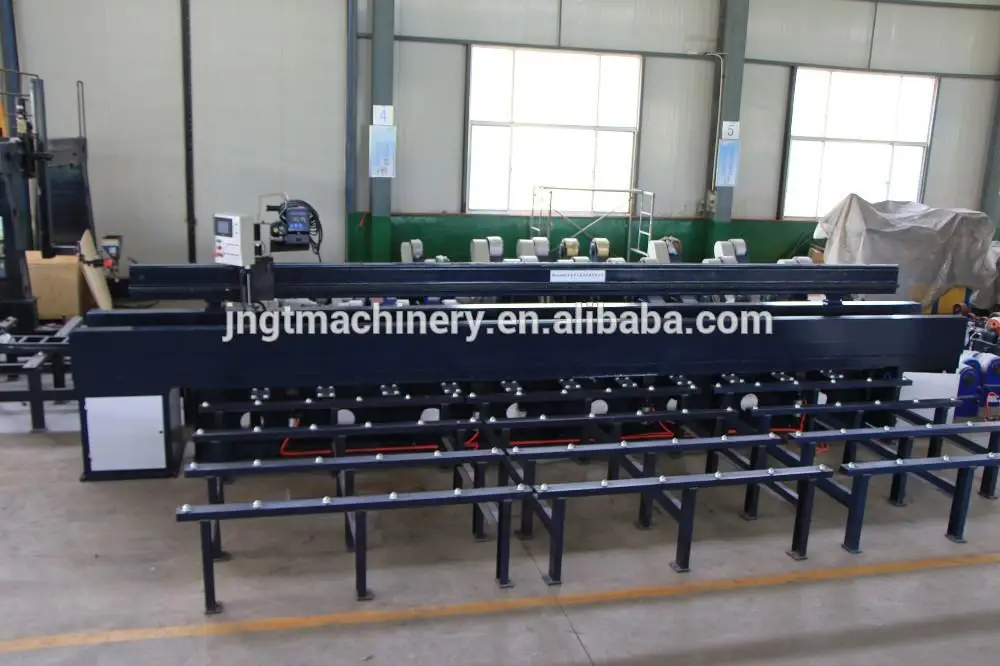

Straight Seam Welding Machine With Clamp
Automatic Flat Butt Welding Machine
Mainly used for flat stitching longitudinal seam automatic welding, the welding process can be TIG / MIG / MAG / PAW / SAW and other methods for welding carbon steel, stainless steel, aluminum and aluminum alloys, titanium and other materials, widely used the aerospace, automotive parts, motorcycles, home appliances, pressure vessels and food machinery industry. Pneumatic compression device key structure to ensure uniformity of the work piece clamping, mandrel optional water-cooled and back seam gas protection, reduce welding deformation; control system uses PLC + touch interface humane and effective to ensure the welding quality, simple and reliable operation
Work piece length(mm)
Work piece thickness(mm)
Welding head walking speed(mm/Min)
0-4000 (or according to customer demand)
Welding torch lift stroke(mm)
Welding torch fine turning stroke (mm)
Single-phase AC220v 50Hz

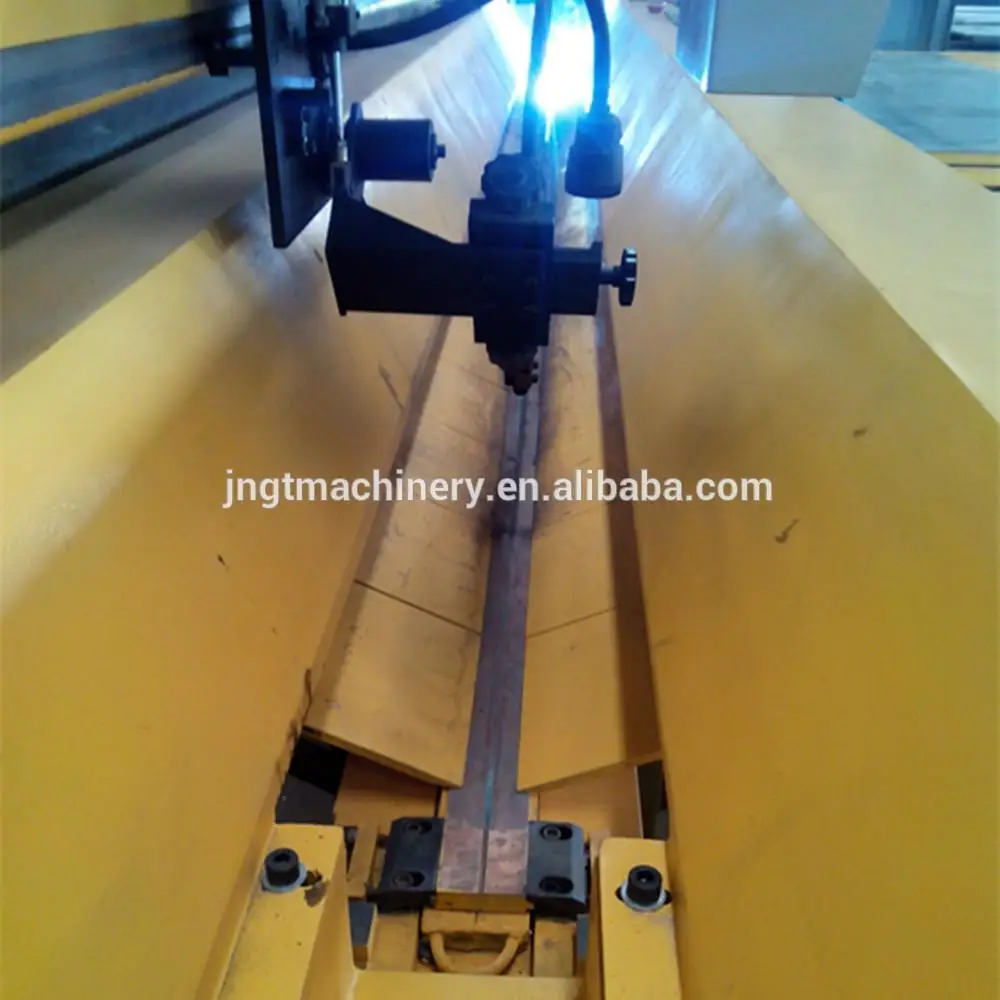

Standard configuration: Support mandrel (without water cooling), copper solder pads (pads shaped groove dimensions according to the work piece thickness, material, welding technology decision), copper key pressure means, 100mm gun pneumatic lift mechanism (carrying 20kg), 60mm stroke two-dimensional manual adjustment mechanism, common arc welding controller (can be adapted to TIG / MAG / PAW) Option: Water-cooled spindle support with back air protection pads, stainless steel liner, pneumatic / manual for the device, TIG wire feeder, ALC arc length tracker, pneumatic hook, electric cross skateboard, seam tracking devices, auxiliary loading and unloading car, submerged arc welding head and controller
Packaging & Shipping
Jinan Haufei CNC Machine Co., Ltd. is located in Jinan, shandong province with beautiful environment and very convenient transportation.
We are one of the most professional machinery manufacturers in China.
With constant efforts of all staffs, our products have been sold well in domestic and exported to many countries inthe world,
including Australia,Indonesia,India,Burma,Iran,Spain,Brasil,Peru,Russia,Azerbaijan,KZ,UZ,Sri Lanka.etc.
