Cnc Plasma Cutting Machine For Metal Sheet

FOB Reference Price:Get Latest Price
US $8,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Cnc Plasma Cutting Machine For Metal Sheet
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI or OEM
Voltage:
380V
Rated Power:
35kw~75kw
Dimension(L*W*H):
4000mm*3200mm*1700mm
Weight:
1500kg
Certification:
ISO9001:2008
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
type:
Cnc Plasma Cutting Machine For Metal Sheet
cutting material:
sheet metal
cutting thickess:
0-200mm
cutting width:
3200mm-6200mm
cutting speed:
0-6000mm/min
plasma power:
US brand or customize
CNC control:
Micro Edge Pro or customize
nesting software:
FastCAM
torch lifting stroke:
170mm 200mm
Supply Ability
Supply Ability:
200 Set/Sets per Year Cnc Plasma Cutting Machine For Metal Sheet
Packaging & Delivery
Packaging Details
according to customer requirement-Cnc Plasma Cutting Machine For Metal Sheet
Port
Qingdao-Cnc Plasma Cutting Machine For Metal Sheet
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 30 To be negotiated





Cnc Plasma Cutting Machine For Metal Sheet

TING

Product Description



1. Application

It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting)etc.



Be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.



 The CNC cutting machine main parameter

Horizontal track space(mm)

4000

4500

5000

5500

6000

6500

7000

The effective cutting width(mm)

3200

3700

4200

4700

5200

5700

6200

Overall width(mm)

4800

5300

5800

6300

6800

7300

7800

Cutting mode

flame only, plasma only, flame + plasma

Drive method

rack and pinion drive for X and Y axes

Drive mode

bilateral-side 4

Flame cutting thickness

6-200mm

Plasma cutting thickness

0-50mm(according to the specification of plasma power source)

Cutting speed

0-6000mm/min

Empty stroke speed

0-10000mm/min

Automatic torch height controller(option)

capacitive height controller  for flame cutting

arc voltage height control for plasma cutting

Cutting gas

acetylene, propane(option)

Plasma gas

pressed air,oxygen,N2

Marking tool

yes(Option)

Nesting software(option)

INTEGNPS,FASTCAM



2. Products picture:



 3. Product advantage:

1) Main frame: adopted to thermal aged, avoid disfigure.





2) Horizontal straight double-shaft axles guiding rail, equipped Taiwan HSK or Taiwan HIWIN





3)7-grade precision rack



4) Servo motor :Brand Japan Panasonic and planetary reductor: Japan SHIMPO or Germany NEUGART.



5) Controll system: USA brand EDGE Pro





6) Plasma power (optional),but main is USA brand.As customer required also can equipped:USA KALIBURN, Germany Kjellberg or some made in China like:Shanghai Jiaoda.



7)Automatic Programming and Fastcam: Australia FASTCAM (Professional)



8) Plasma torch with Arc volt auto height-regulating device and 360°anti-collision device





9) Flame torch: with capacitive auto height-regulating device, Auto ignition device, Solenoid Valve: Italy CEME and flashback arrestor. The whole torch brand: USA G&R.Air tube is Brand Korean YASUNG

4.Flame cutting sample





5.Certification

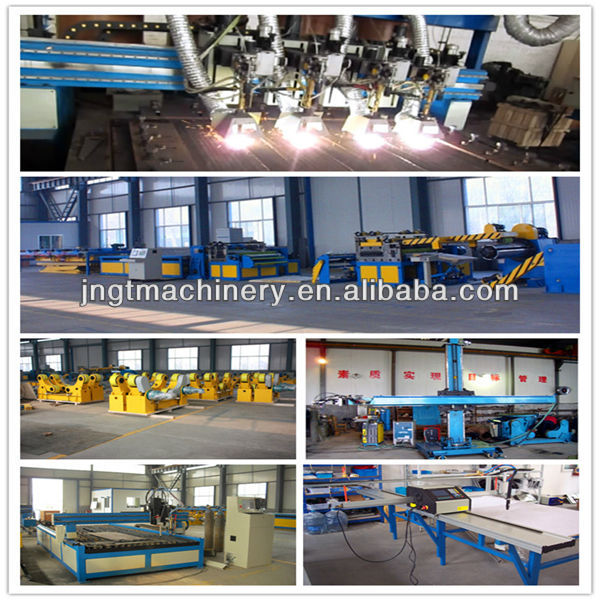

6.Our other products

8.Factory



Further info,please feel free to contact us.
