Heavy Duty Seat-type Welding Turning Positioner Along With Rotation

FOB Reference Price:Get Latest Price
US $1,800-3,500 / Sets | 1 Set/Sets more than 1set (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Welding Positioner
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Model Number:
BW2-100
Usage:
Position
Dimensions:
350-2500mm
Weight:
0.5-30t
Certification:
CE ISO
Product Name:
Heavy Duty Seat-type Welding Turning Positioner Along With Rotation
online service:
24 hours
Basic loading(kg):
1200
Rotating speed(rpm):
0.1-1
Overturning speed:
0.37
Turning angle:
0-120
Work table diameter(mm):
1000
Height of work table(mm):
1100
Rotating motor power(kw):
0.75
Turning motor power(kw):
0.75
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Year we have oneself factory
Packaging & Delivery
Packaging Details
as appropriate
Port
qingdao
Lead Time :
25days

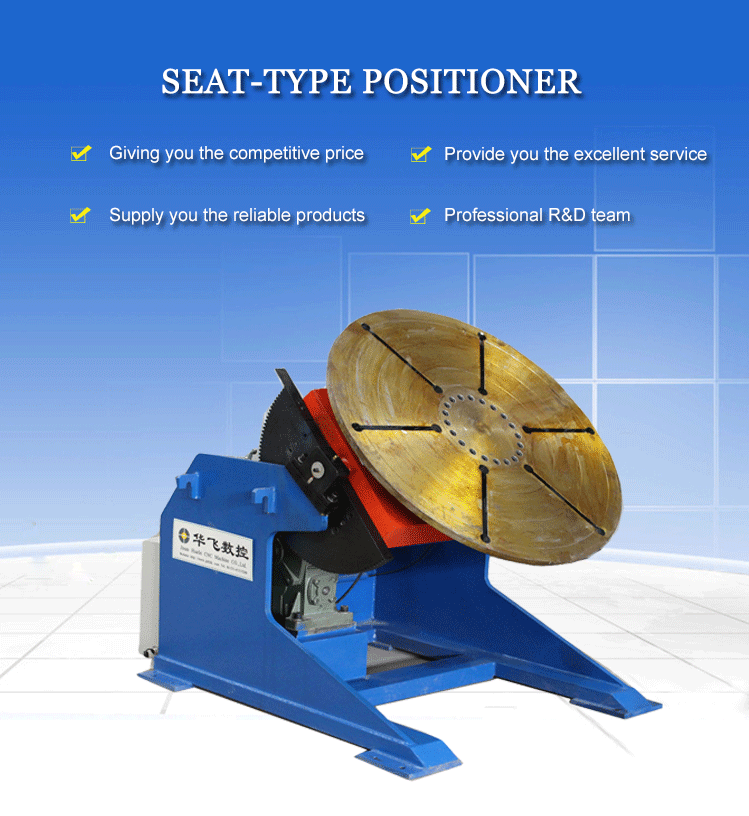

Heavy Duty  Seat-type Welding Turning Positioner Along With Rotation



Product Description





Seat type positioner can guide the welding seam in horizontal or boat shape position through its working table rotation or tilting. Working table

rotation adopts stepless speed regulating, and can be driven to tilt by fan-shape gear or hydraulic cylinder.The tilt angle of the working table is

0°~120°, It can realize the combination control with the manipulator or welding machine.There are three kinds of configuration for the control system:

button digital control, switch digital control and switch relay control. Such products apply to rotation work piece welding of axle shape, disk shape

and cylinder. Its structure is widely applied.

MAIN TECHNICAL DATE

Model No.BW2-12BW2-20BW2-30BW2-50BW2-80BW2-100BW2-150BW2-200
Basic loading(kg)12002000300050008000100001500020000
Rotating speed(r/min)0.1-10.03-0.30.03-0.30.05-0.50.05-0.50.05-0.50.02-0.20.02-0.2
Overturning speed(r/min)0.370.370.370.370.370.370.150.2
Turning angle0-1200-1200-1200-1200-1200-1200-1200-120
Work table diameter(mm)10001100140016001800200022002500
Height of work table(mm)11001150125014502000200020002100
Allow work piece off-centerEccentricity150150200200200200200200
Centroidal distance250250300300350400500600
Rotating motor power(kw)0.751.51.52.23345.5
Turning motor power(kw)0.751.51.53445.57.5

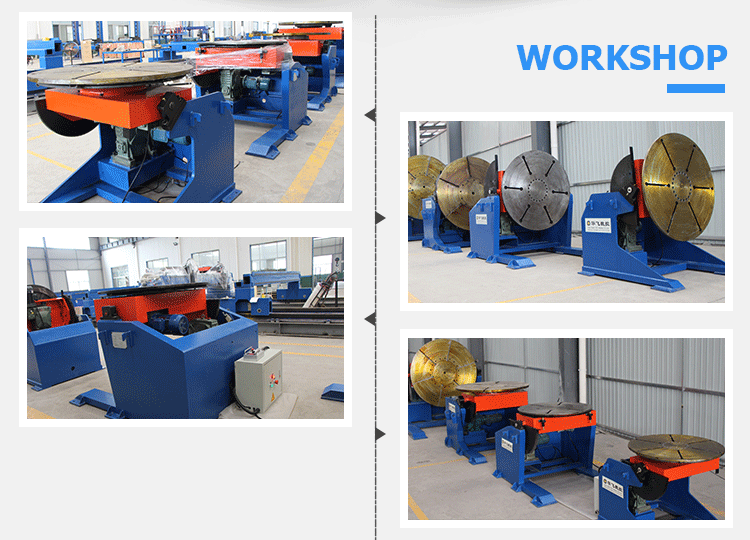

Product Display



Packaging



Related Products

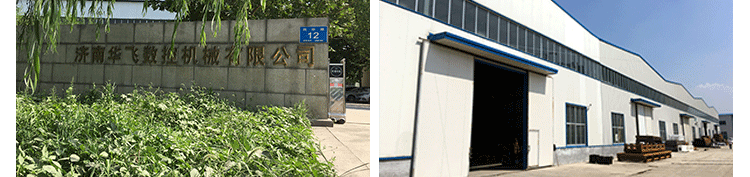

Company Information

Jinan GT International Trading Co., Ltd. as the sale branch company of Jinan Huafei cnc machinery co.,ltd is a professional CNC machine

manufacturer, which specializes in designing, producing and trading. Our company mainly produces and sells automatic welding equipment,

CNC cutting machines, engraving machines and uncoiling production lines. Since establishment, our company has built long-term good

cooperative relationships with plenty of customers at home and abroad. Our products have been exported to many countries including

Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan, etc.
