CNC Plasma Pipe Profile Cutting Machine with 5 Axis Control

FOB Reference Price:Get Latest Price
US $29,900-45,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Model Number:
QGVI
Voltage:
380V/220V
Rated Power:
5.5kw
Dimension(L*W*H):
6000*2000*2000
Weight:
2200kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
diameter:
60-1200mm
length:
500-120000mm
loading weight:
0-6t
cutting source:
plasma or gas
Control system:
5 axis cnc control
name:
Plasma Pipe Profile Cutting Machine with CNC 5 Axis Control
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case; Plasma Pipe Profile Cutting Machine with CNC 5 Axis Control
Port
Qingdao,Plasma Pipe Profile Cutting Machine with CNC 5 Axis Control
Lead Time :
45 days; Plasma Pipe Profile Cutting Machine with CNC 5 Axis Con
Video Description

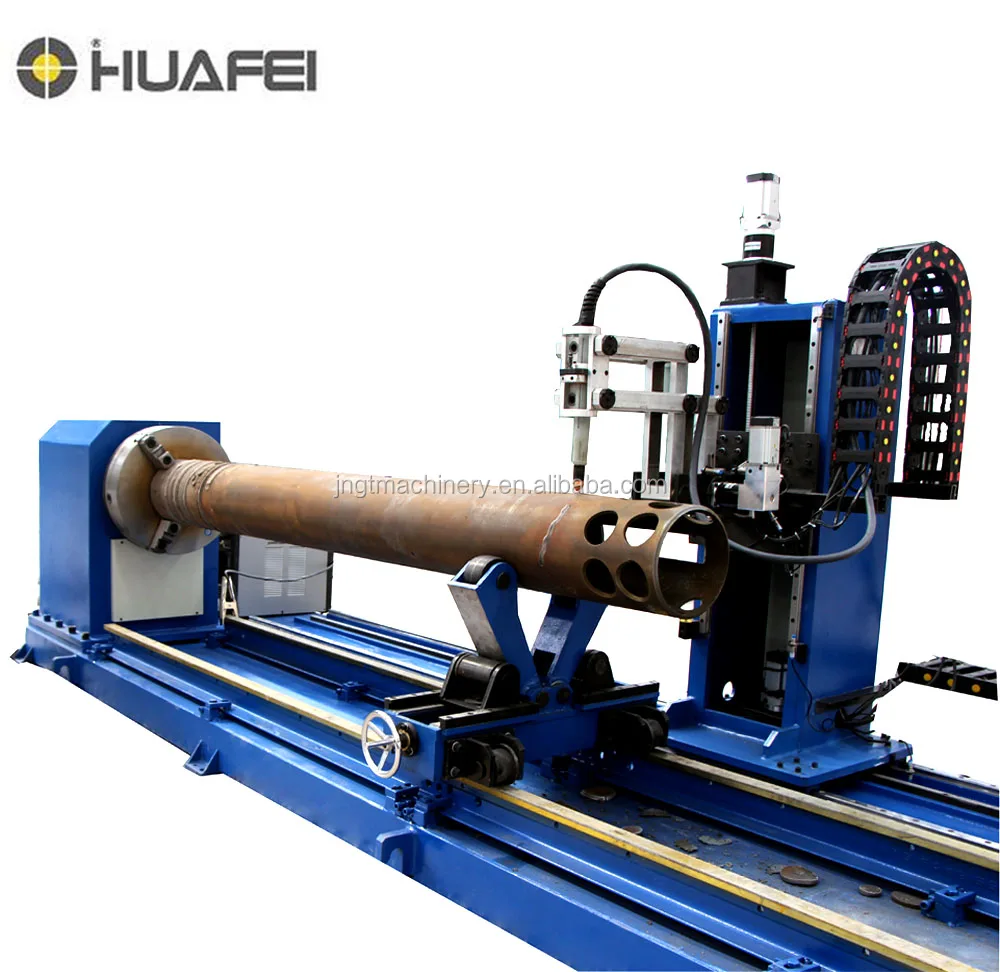

CNC Plasma Pipe Profile Cutting Machine with 5 Axis Control



Pipe CNC cutter

02_pipe cut.jpg

 Parameters



1.Pipe diameter applicable:     Φ50-Φ600/800/1200/1500mm

2.Cutting Pipe wall thickness:   1-25mm (plasma cutting) or as per plasma generator;

                                                 5-60mm(flame cutting)

3. Cutting speed:                            plasma cuttingspeed: 50—3800 mm/min;

                                                       flame cutting speed: 50-750mm/min

4. Number of axis under control:     3-6 Axes

Work piece axis of rotation(X)

Cutting the first work piece along the axis of axial movement(Y)

Cutting torch along the axial swing axis work piece (Z)

Cutting torch along the work piece swing radial axis (W)

Cutting the first spindle axis vertical take-off and landing (U)

Cutting nozzle strength out and draw back axis (V)

5.Angle of bevel:                                plasma cutting±45°(adjustable);

                                                           flame cutting:±60°(adjustable)

6. Cutting Pipe length:                   ≤12000mm

7. Max load pipe weight:                4000KGS

8. CNC system:                              original import IPC

9. Control way:                                full CNC control with touch screen & man-machine interface

10. Integrated precision of the machine:

Portrait Moving Error:                   ≤±0.2mm/1000mm

Turning Angle Error:                    ≤1° per 180°

Surface quality:                            Clean and no dregs

Repeat positioning accuracy:      ≤±0.3mm


 Positioning Precision



(1)X Axis

(√)



Driving system

Driving by precise gear box and transmission gear pair



Rev

0.01-8r/min



Servo motor

Panasonic motor



Positioning precision

±0.1mm

(2)Y Axis

(√)



Driving system

Driving by Precision gear box, transmission by gear and rack



Track length for cutting head(Max travel stroke)

12000mm



Servo motor

Panasonic motor



Positioning precision

±0.2mm

(3)Z Axis

(√)



Driving system

Driving by precise gear box



Swing angle

±60°



Servo motor

Panasonic motor



Positioning precision

±0.1mm

(4)W Axis

(√)



Driving system

Driving by precise gear box



Swing angle

±60°



Servo motor

Panasonic motor



Positioning precision

±0.1mm

(5)U Axis

(√)



Driving system

Driving by precise gear box and ball screw



Stroke of cutting head

400mm



Servo motor

Panasonic motor



Positioning precision

±0.2mm

(6) V Axis

(√)



Precision gear box, ball screw transmission





Cutting head up and down stroke

100mm



Servo motor Panasonic motor





Position accuracy

±0.2mm

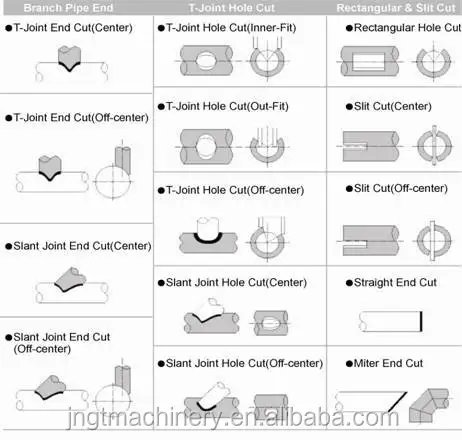

 Cutting Item (Illustration)






The max angle of bevel: Vertical and horizontal direction ± 60 °

Orthogonal mother riding a tube-type cutting openings

Minimum cross-cutting angle: ± 30 °

Orthogonal mother tube insertion opening-cutting

Cutting speed automatic stepless variable speed regulation

Orthogonal and oblique cut-side branch pipe

Continuous Cutting Set

Orthogonal and oblique eccentric mother pipe cutting

Fixed-point and fixed-angle bevel settings

Orthogonal and oblique eccentric cutting branches

Vertical pipe and slope-side cutting

Multi-tube mother intersection pipe opening face cut

Home bias pipe opening face cut

Multi-pipe intersection cut-side branch pipe

Home bias pipe opening eccentric cutting surface

Possession of ocean engineering at both ends of the tube cutting bias

Mother pipe rectangular cutting surface

Tube welding elbow, "shrimp" oblique section cutting

Mother trough control center, cutting eccentric

pipe ovality error automatic tracing



 .jpg   .jpg



 Pipe Cutting Machine video

https://www.facebook.com/AKZ250/videos/1935140360059761/

https://www.facebook.com/AKZ250/videos/1527355297504938/

https://www.facebook.com/AKZ250/videos/1749948011912331/



Packaging & Shipping

Standard plywood case and plastic film


Our Services

Certification: ISO9001:2008 and CE

.jpg

After-sale service

 Warranty : one year

 Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material
