Flat butt welding machinery/Steel Plate Butt Joint Long Seam Welding Machine , Automatic Flat Butt Welding Machine

FOB Reference Price:Get Latest Price
US $28,000-80,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Model Number:
Metal Plate Butt Joint Welding Machine
Input Voltage:
380V
Current:
1-1000A
Power:
2.5Kw
Dimensions:
3-9m
Usage:
Butt Welding
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Metal Plate Butt Joint Welding Machine
Materials:
carbon steel, stainless steel
Welding method:
TIG,MIG,SAW,PAW, P+T
Welding thickness:
3-8mm
Welding length:
3000-9000mm
Torch travel speed:
0-4000mm/min
Torch lift stroke:
100/250mm
Torch fine tune stroke:
Y-100mm; Z-100mm
Control system:
PLC+HMI
Clamping tool:
pneumatic key type press
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case or plastic film cover; Metal Plate Butt Joint Welding Machine
Port
Qingdao, Metal Plate Butt Joint Welding Machine
Lead Time :
Shipped in 30 days after payment
Butt Welding Machine

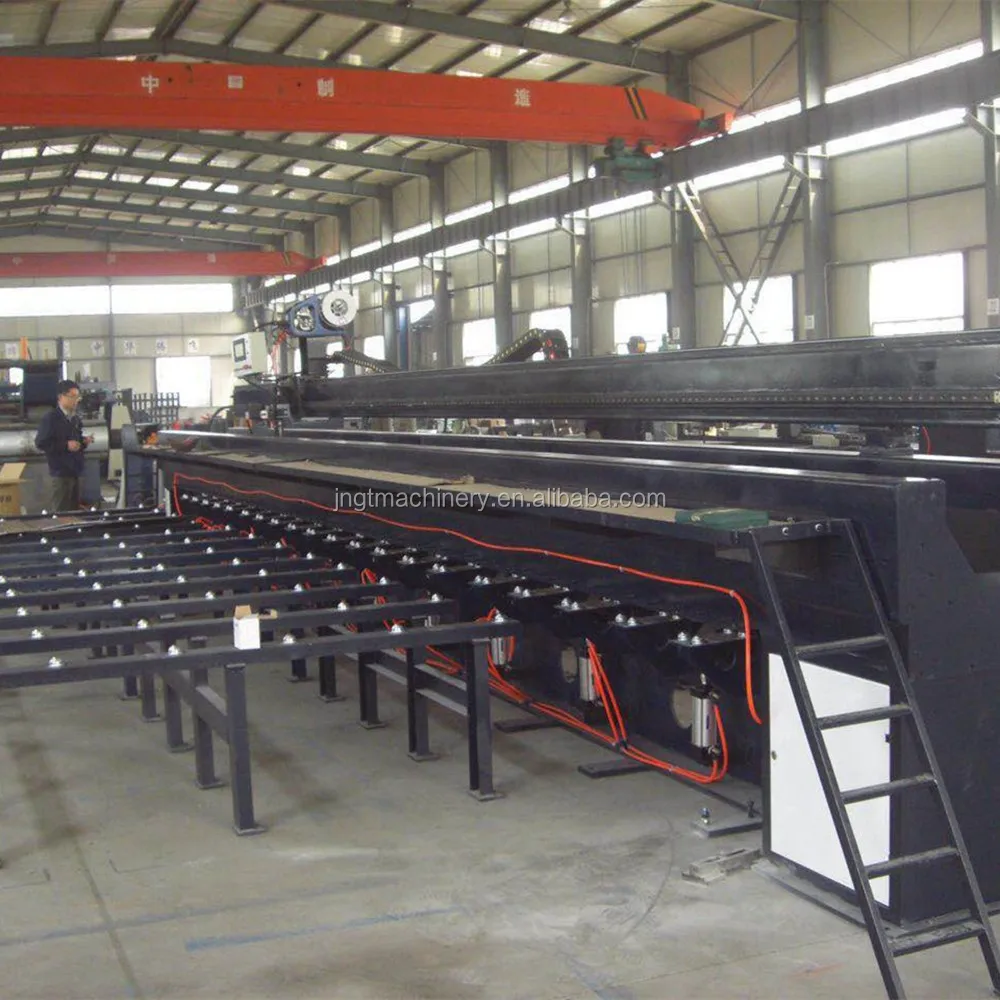

Plate butt joint welding machine

Mainly used for flat stitching longitudinal seam automatic welding, the welding process can be TIG / MIG / MAG / PAW / SAW and other methods for welding carbon steel, stainless steel, aluminum and aluminum alloys, titanium and other materials, widely used the aerospace, automotive parts, motorcycles, home appliances, pressure vessels and food machinery industry. Pneumatic compression device key structure to ensure uniformity of the work piece clamping, mandrel optional water-cooled and back seam gas protection, reduce welding deformation; control system uses PLC + touch interface humane and effective to ensure the welding quality, simple and reliable operation

Model
PB-6000
PB-9000
PB-11000
Work piece length(mm)
≤6000
≤9000
≤11000
Work piece thickness(mm)
3-8mm
Welding head walking speed(mm/Min)
0-4000 (or according to customer demand)
Welding torch lift stroke(mm)
100mm
250mm
250mm
Welding torch fine turning stroke (mm)
Y=100,Z=100
Controller power
Single-phase AC220v 50Hz

Standard configuration: Support mandrel (without water cooling), copper solder pads (pads shaped groove dimensions according to the work piece thickness, material, welding technology decision), copper key pressure means, 100mm gun pneumatic lift mechanism (carrying 20kg), 60mm stroke two-dimensional manual adjustment mechanism, common arc welding controller (can be adapted to TIG / MAG / PAW)

Option: Water-cooled spindle support with back air protection pads, stainless steel liner, pneumatic / manual for the device, TIG wire feeder, ALC arc length tracker, pneumatic hook, electric cross skateboard, seam tracking devices, auxiliary loading and unloading car, submerged arc welding head and controller

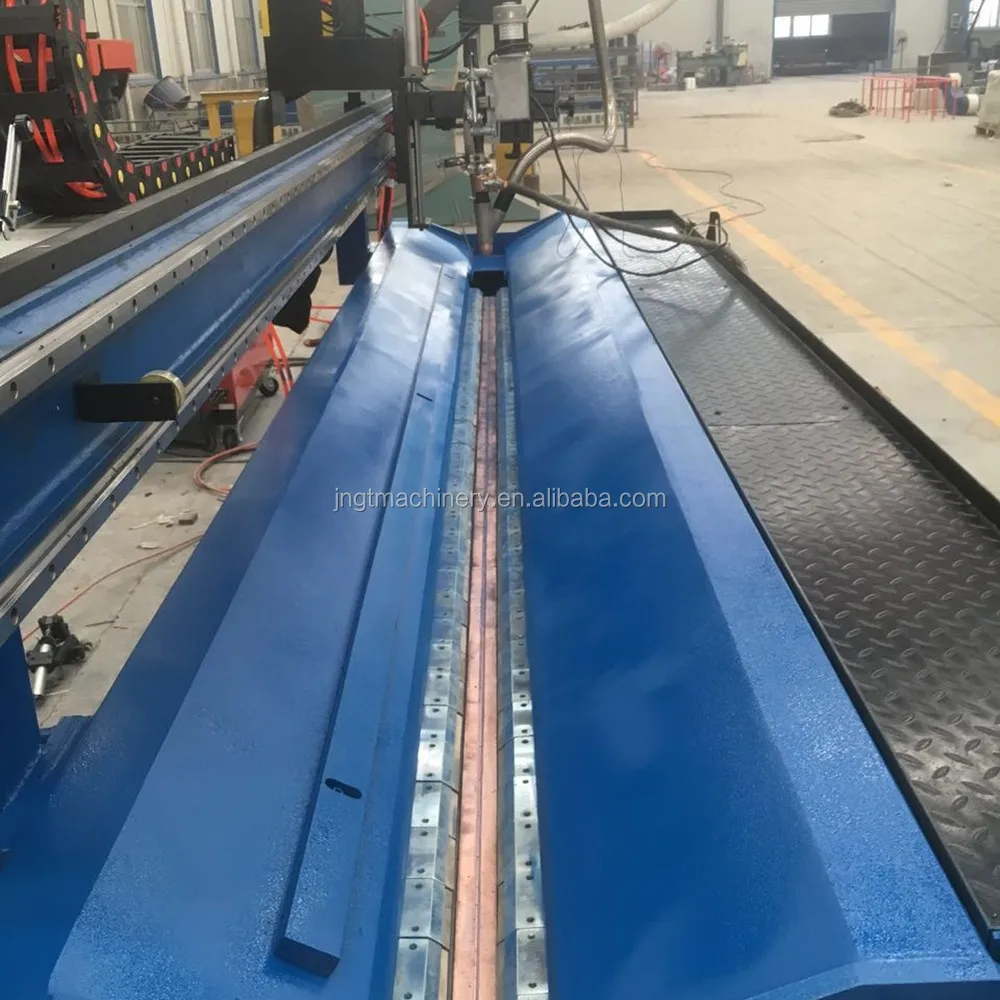

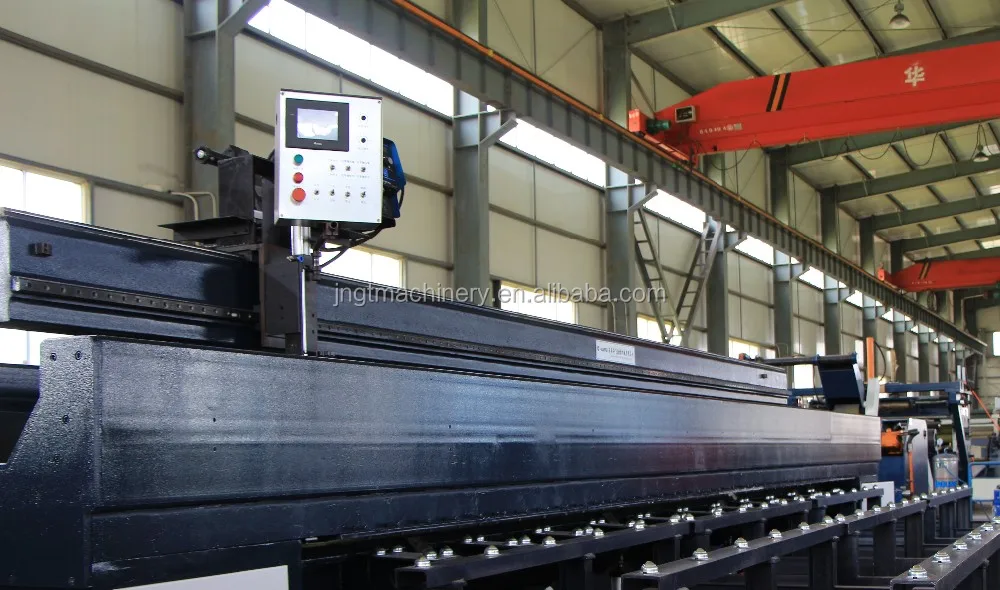

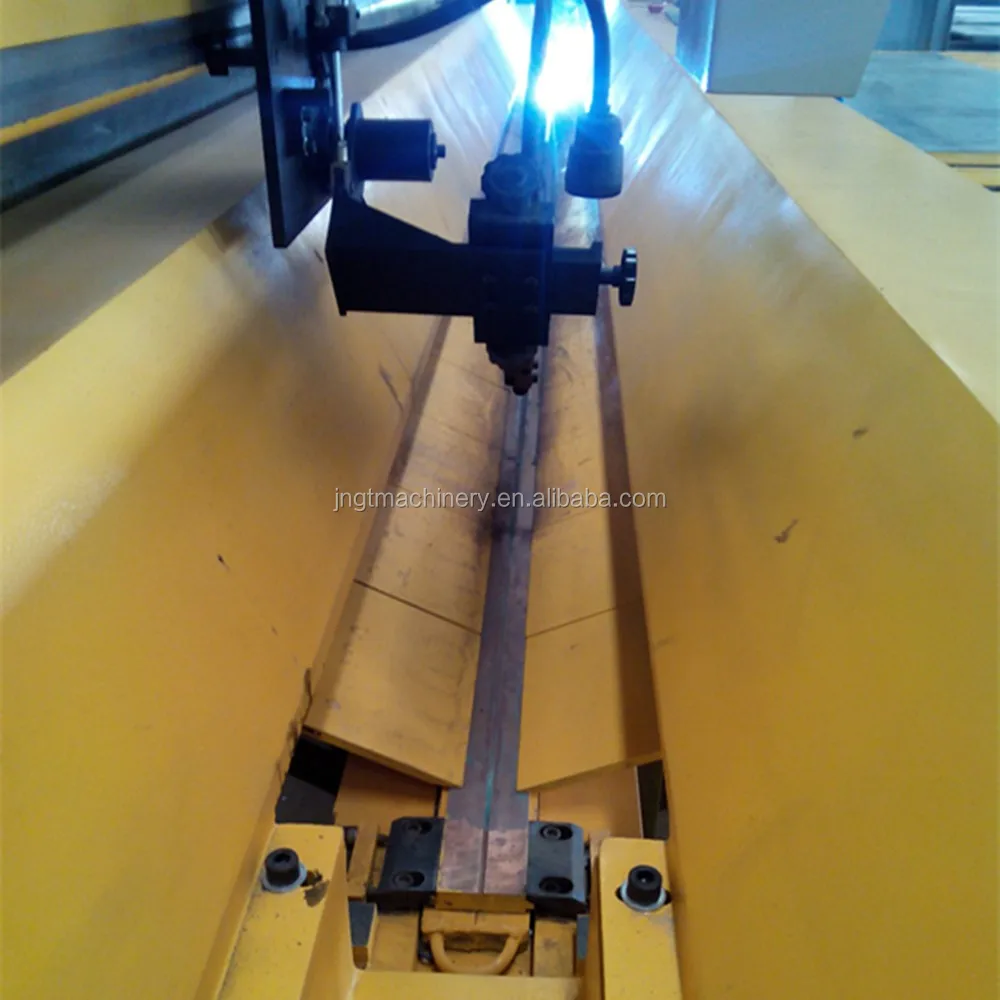

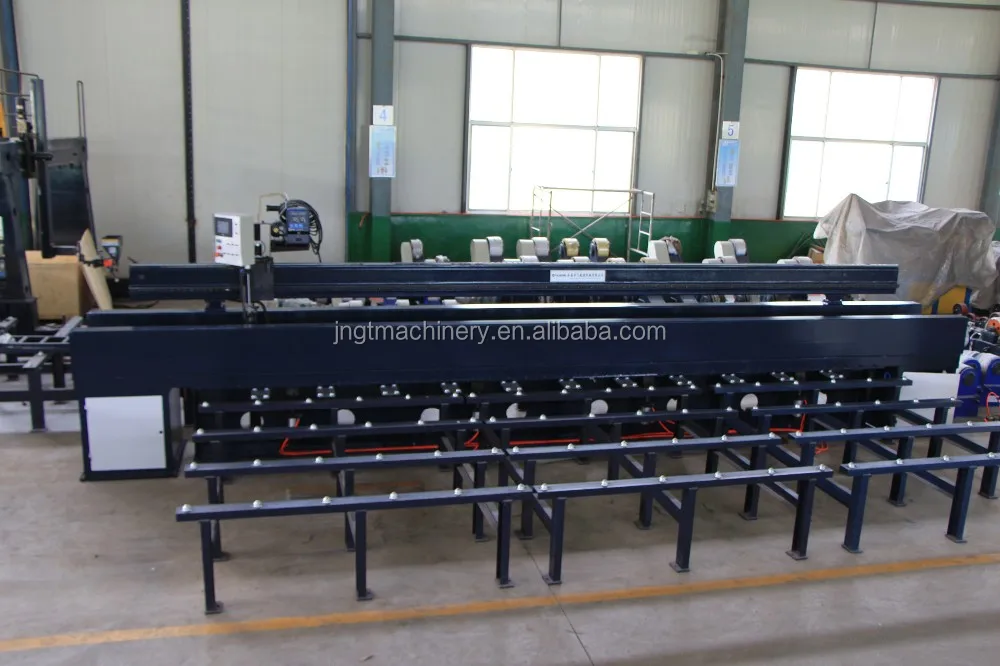

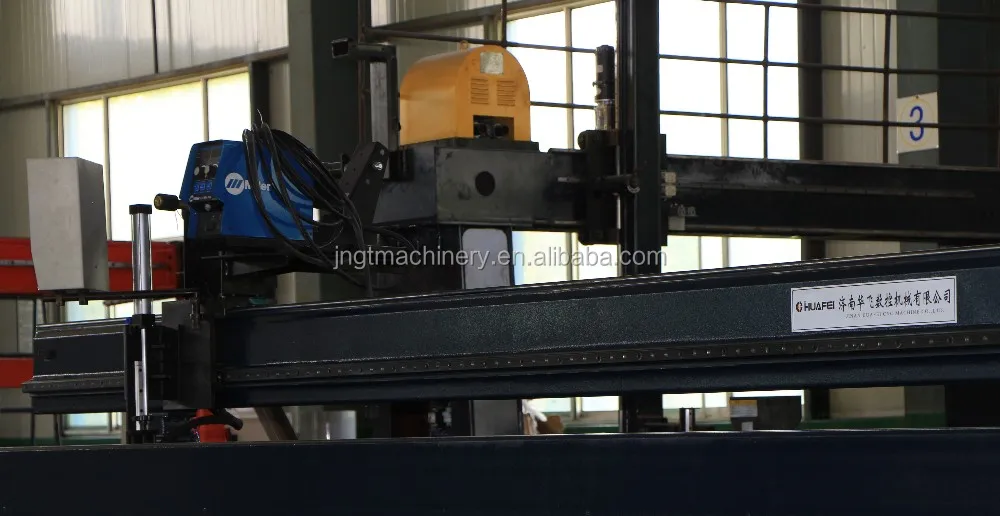

Detailed Images

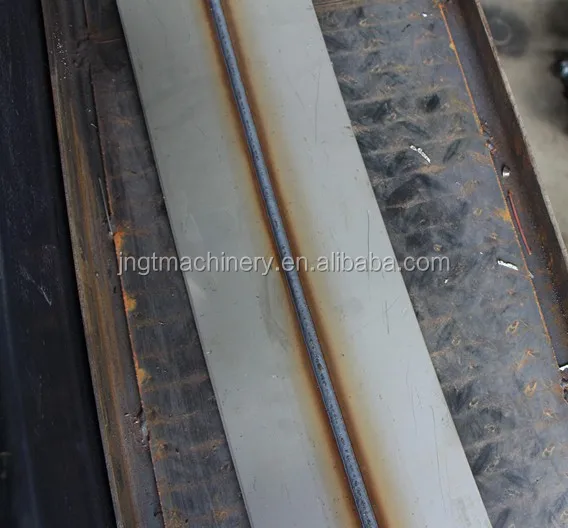

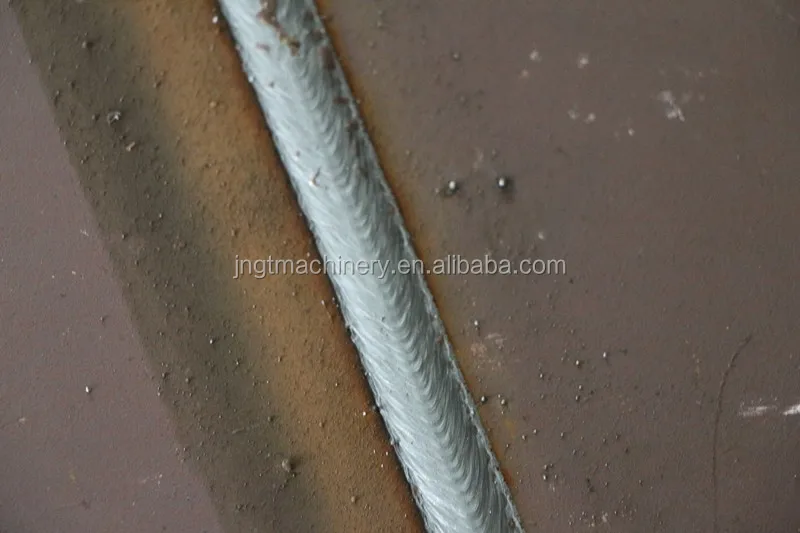

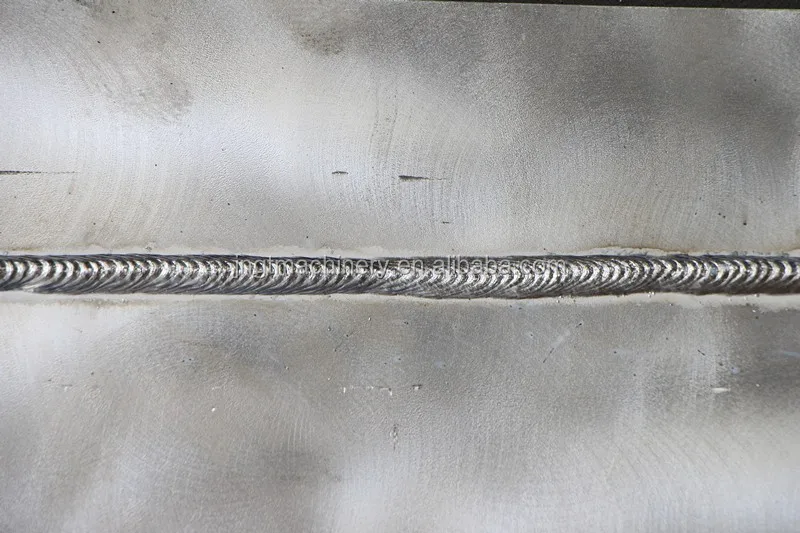

Welding Sample
