Automatic Welding Equipment/Gantry Welding Machine for 6+2-30+30 Wear Resistant Plate Overlay Welding Manufacturing
- Model Number:
- Open arc welding overlay machine for bimetal wear plates
- Lead Time:
-
Quantity(Sets) 1 - 1 >1 Est. Time(day) 40 Negotiable
- Machine Type:
-
Welding Manipulator
- Place of Origin:
-
Shandong, China (Mainland)
- Brand Name:
-
HUAFEI
- Voltage:
-
380v
- Current:
-
500-1000A
- Rated Capacity:
-
5.5KW
- Rated Duty Cycle:
-
60-100%
- Dimensions:
-
2200* 3800*2200
- Weight:
-
3t
- Usage:
-
Open arc welding overlay
- Certification:
-
ISO 9001:2008
- After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
- Warranty:
-
1 Year
- Type:
-
Other
- Name:
-
Open arc welding overlay machine
- Effective transverse welding stroke:
-
1500mm; Can be customized
- Effective longitudinal welding stroke:
-
3000mm; Can be customized
- Welding speed:
-
150 -1500mm /min
- Gantry gauge:
-
3000mm
- Cross slide trim trip (Electric):
-
100mm
- Welding torch stroke (Electric):
-
200mm
- Swing speed:
-
0-2400mm/min
- Supply Ability:
- 100 Set/Sets per Year
- Packaging Details
- plywood case, wood pallet, plastic film covery
- Port
- Qingdao,Open arc welding overlay machine for bimetal wear plates
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(day) 40 To be negotiated

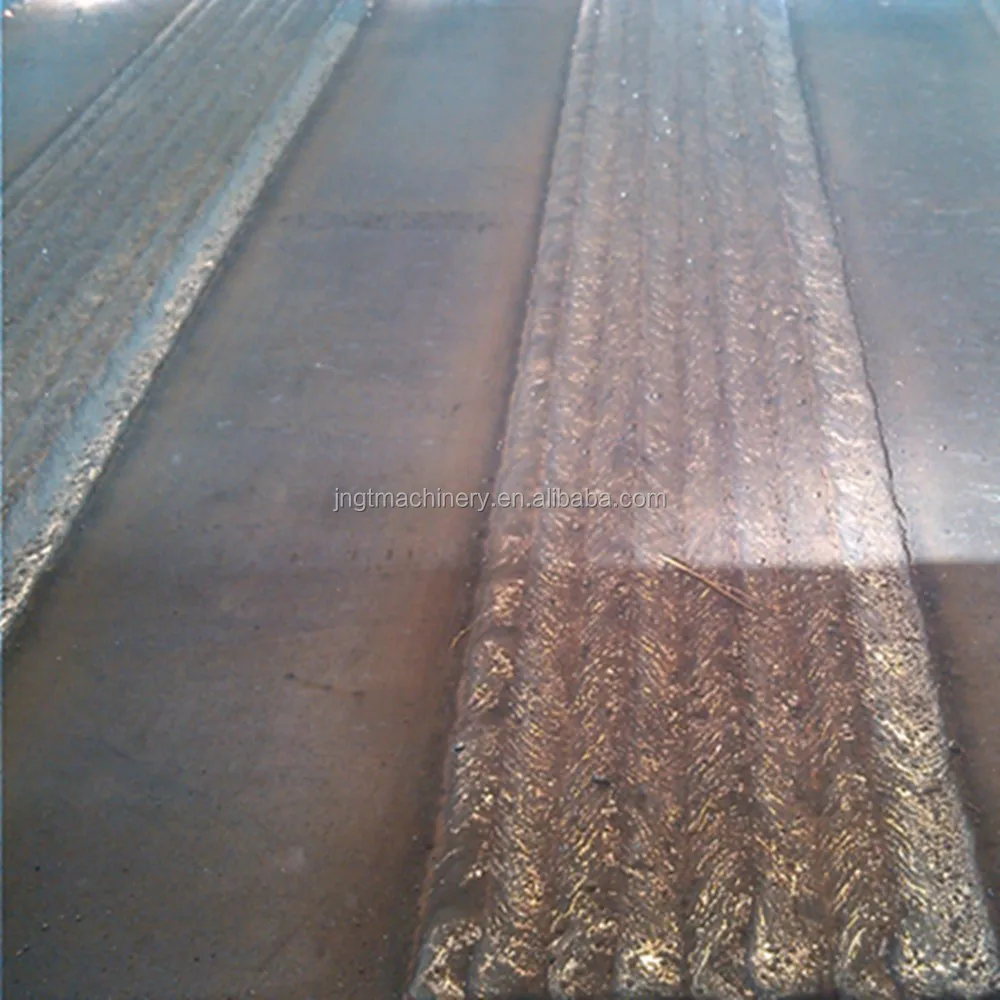

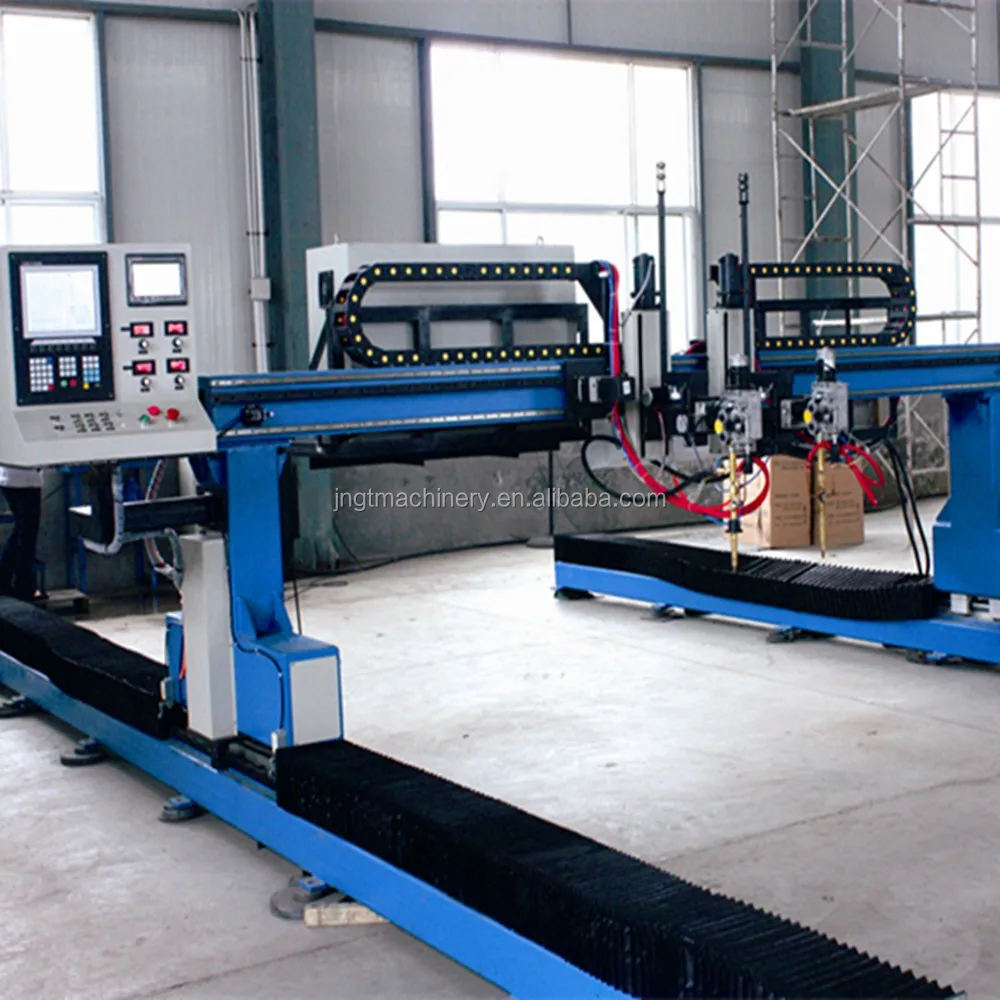

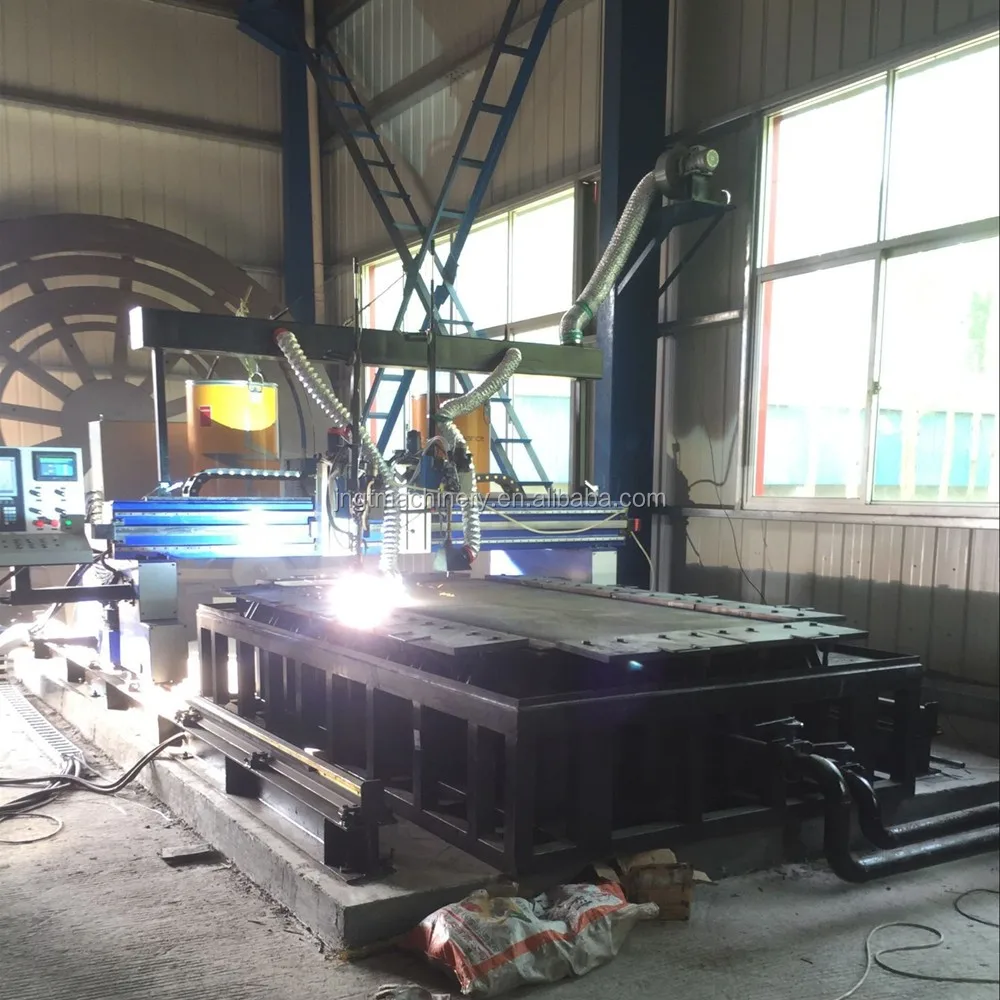

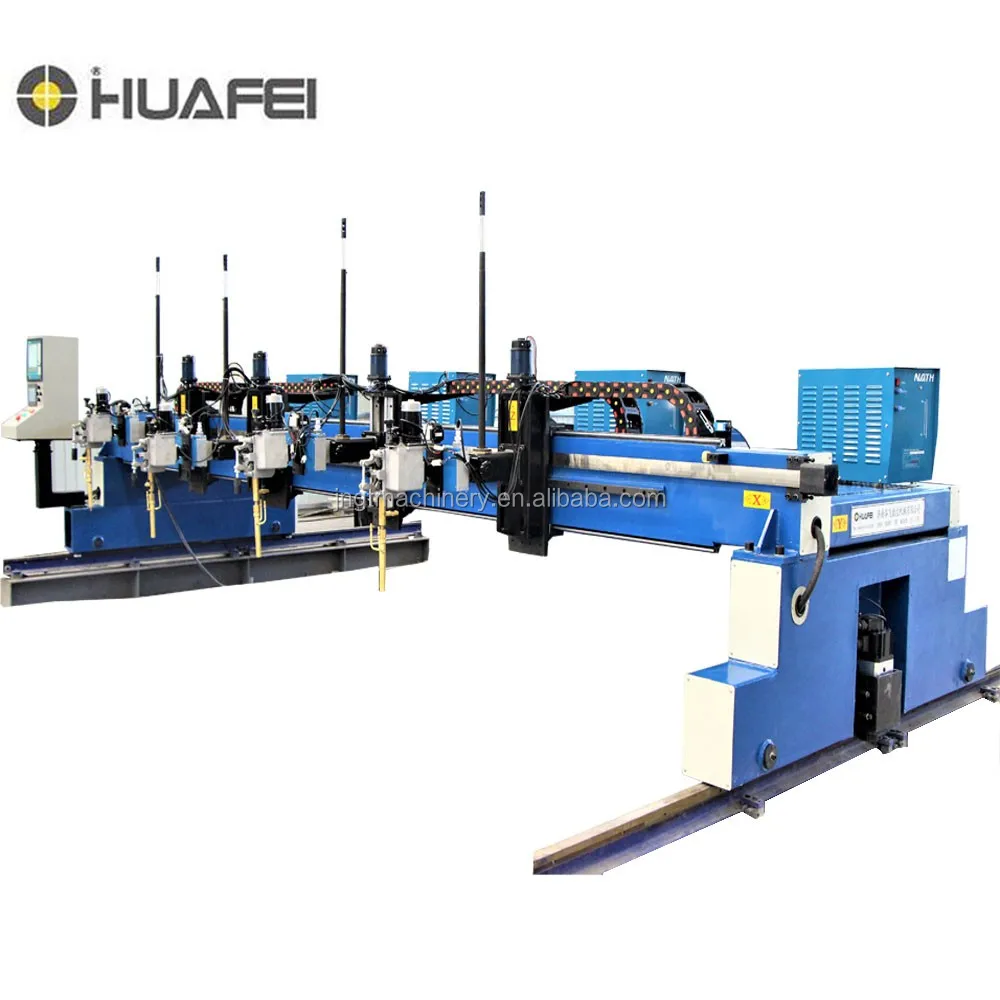

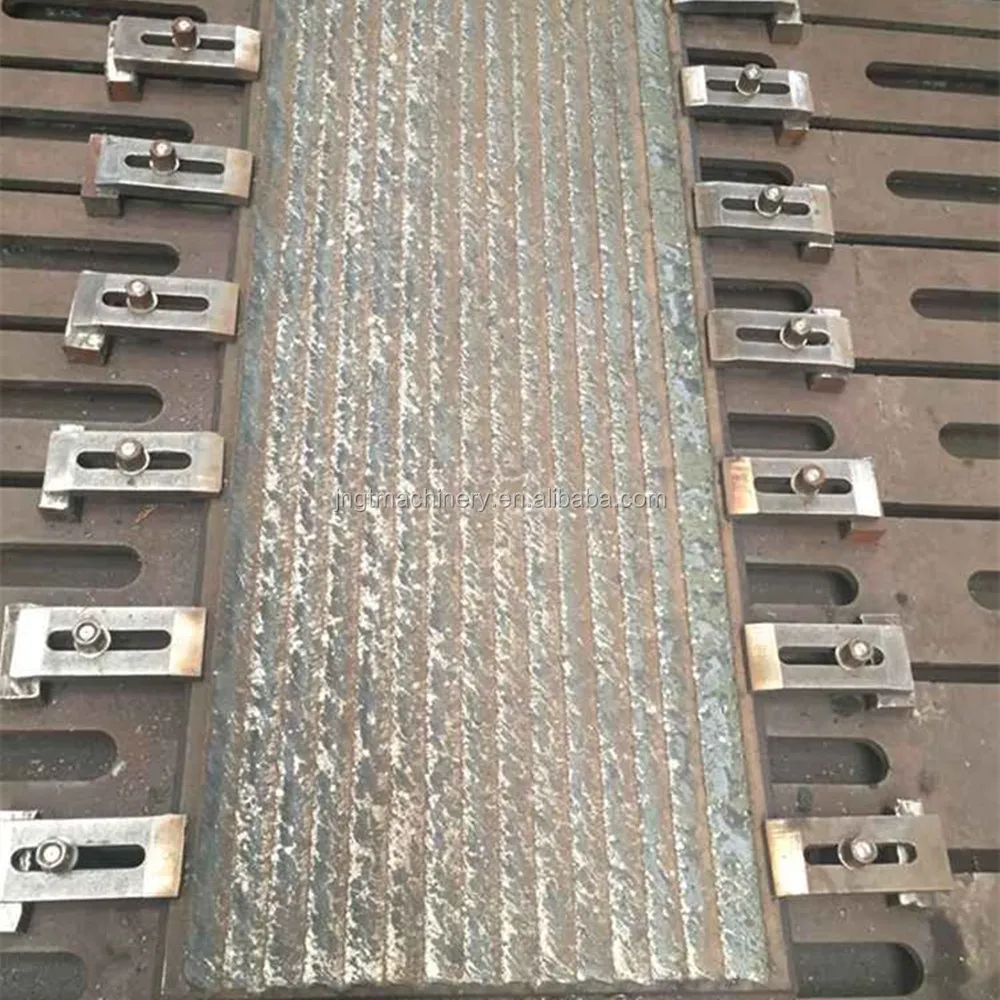

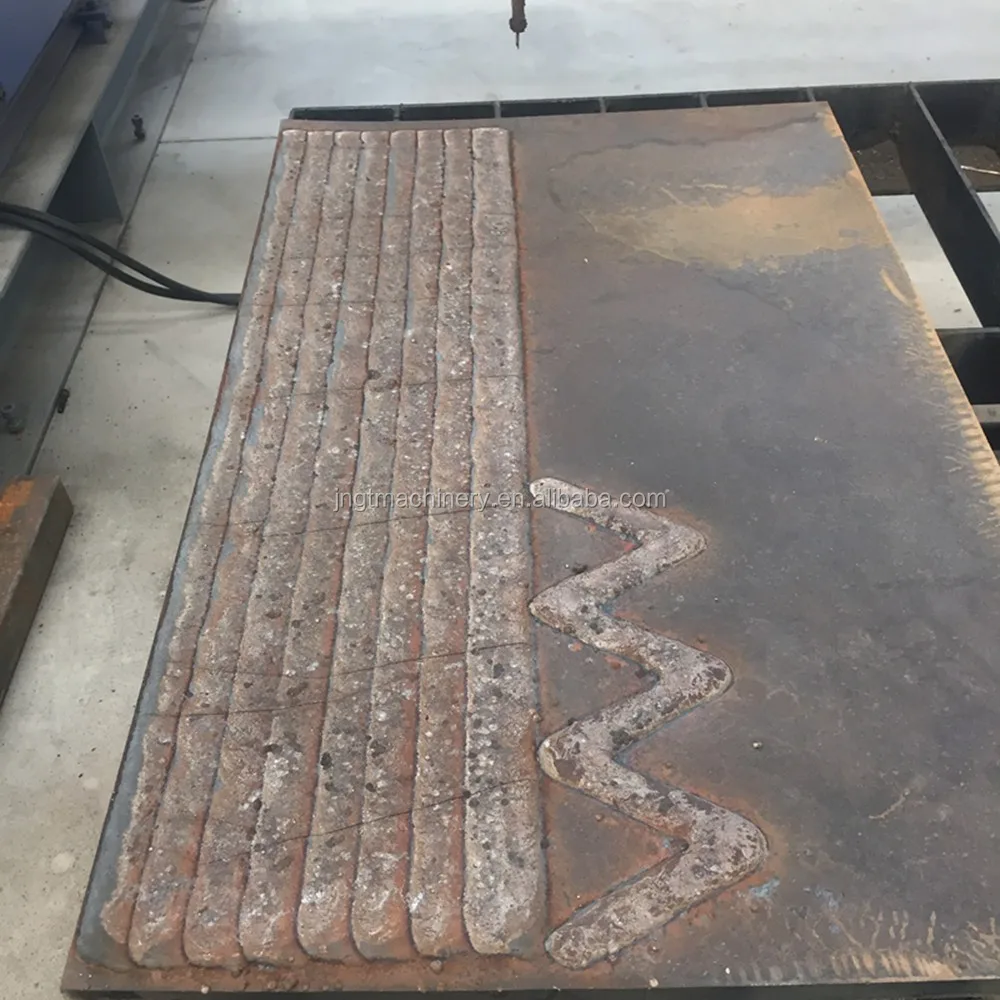

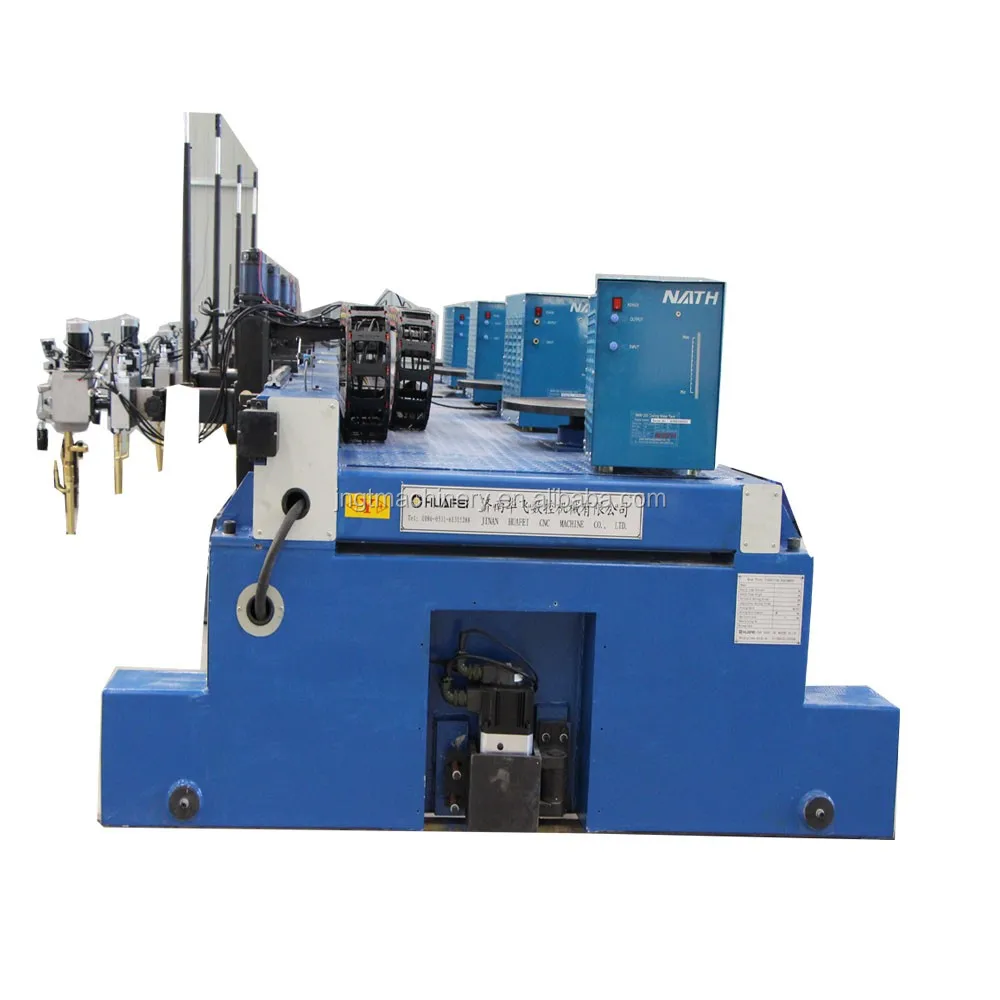

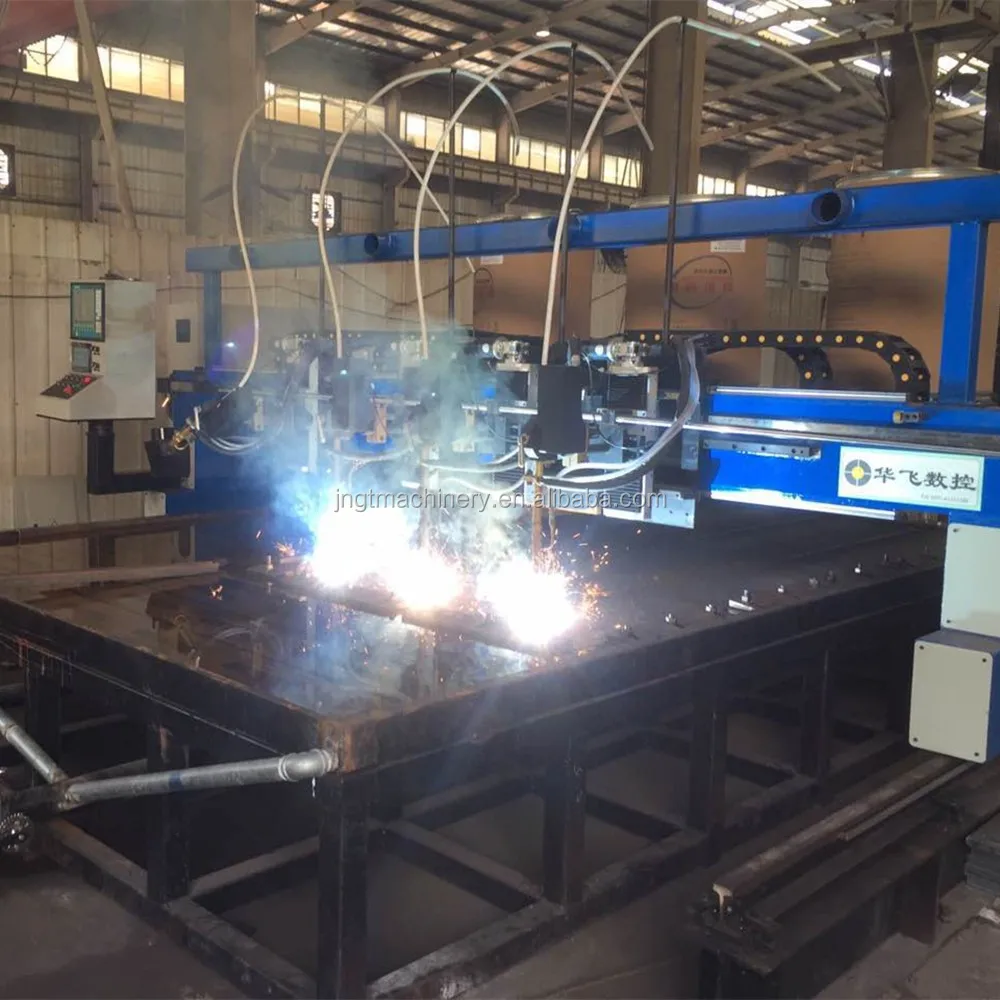

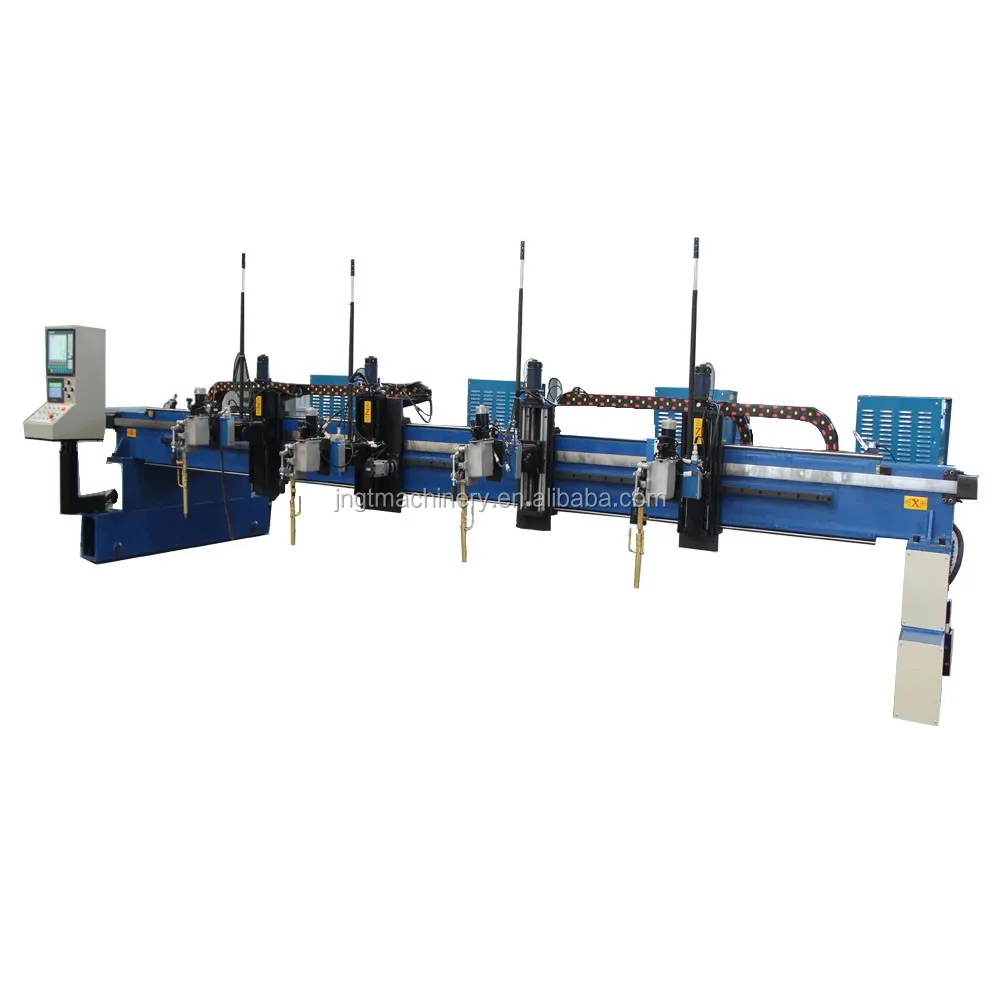

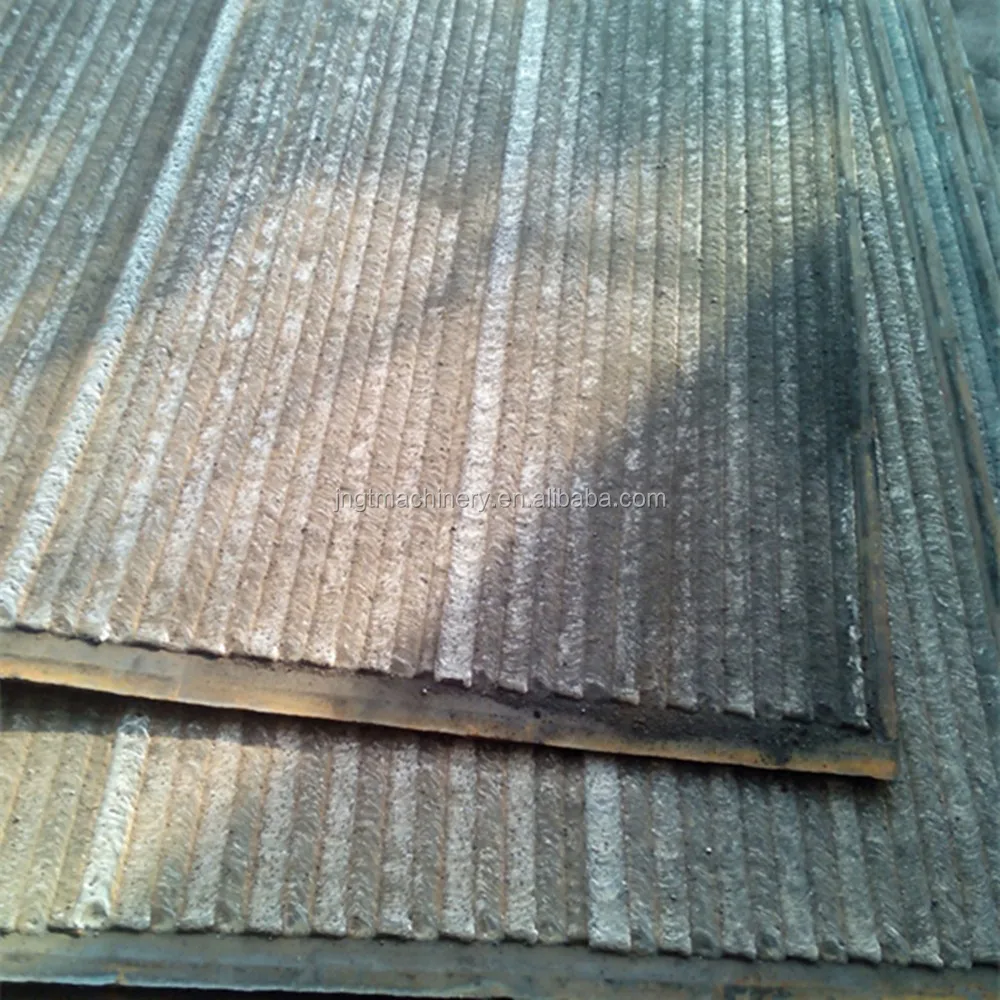

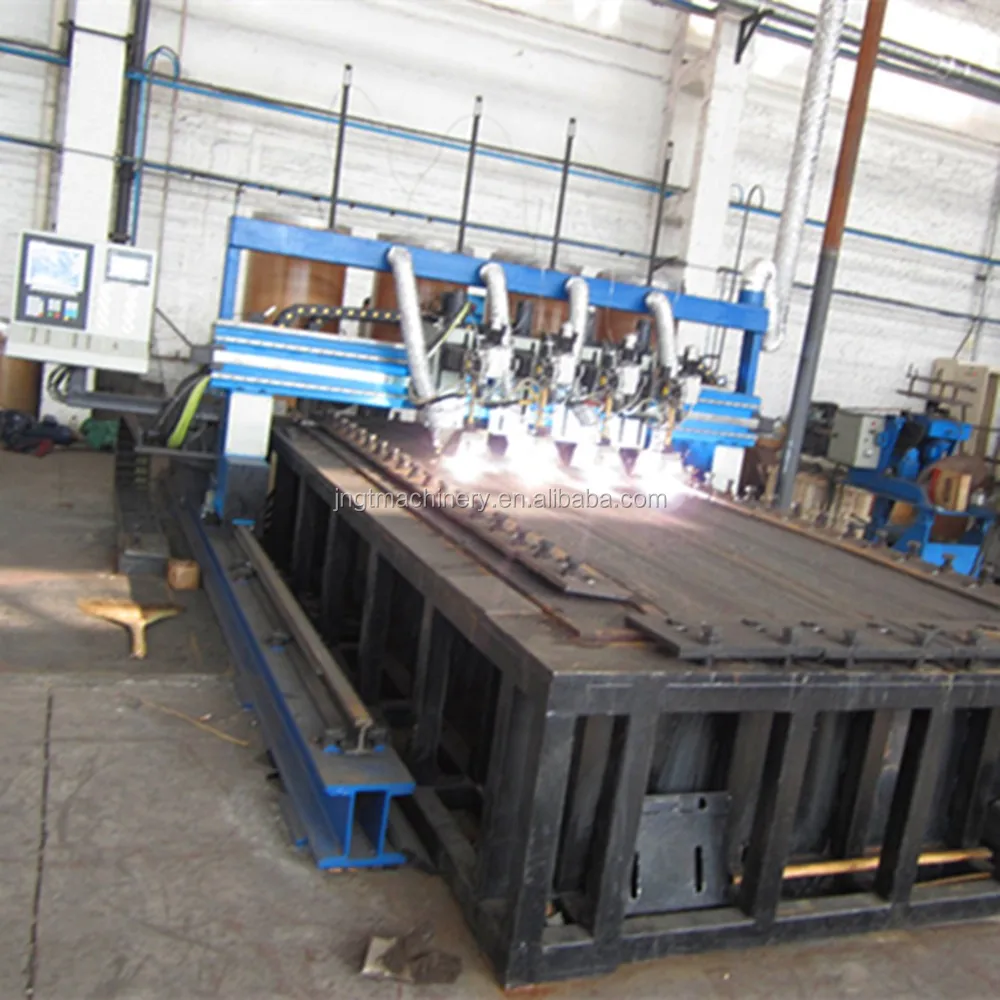

Wear resistant steel plate is using special high hardness open arc wire to overlay uniformly resistant alloy cladding layer processing, to protect the surface from ordinary carbon steel plate. Its working principle is the work piece is placed on the work piece carrier; welding arm with open arc welding torches on gantry frame move horizontally, up and down; so that the welding nozzle head aligning on the welding seam, and then by the gantry shelf moving on the rail as straight line, weld automatically. This machine can weld four welding seam at the same time.


Feature
-A high degree of automation, one button start and stop, simple operation, greatly simplifies the operation process
-Barreled welding wire located above the beam, to ensure smooth wire feeding
-Water cooling effect is good; ensure welding 4+2 wear-resistant plate, plate deformation after welding is very small
-PLC is used to control the operation of the machine, AC variable frequency speed regulation, improve equipment reliability
-IPC control the stability of the platform, in order to ensure the long time stable operation of welding system
-Machine parameters can be set to make any combination of the welding torch welding
-The integration of multi welding torch swing, driven by AC servo motor, stable swinging, weld forming beautiful
-Breakpoint welding function
-Water-cooled torch improve consumable life
Item | Parameters | ||
Effective transverse welding stroke | 1400mm; Can be customized | ||
Effective longitudinal welding stroke | 2800mm; Can be customized | ||
Raw plate size | 1500mmx3000mm | ||
Welding speed | 150 -1500mm /min | ||
Gantry gauge | 3000mm | ||
Cross slide trim (Electric) | 100mm | ||
Welding torch up and down stroke (Electric) | 200mm | ||
Swing speed | 0-2400mm/min |
