Huafei Full Automatic Longitudinal Seam Welding Machine

FOB Reference Price:Get Latest Price
US $5,000-9,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZFH series
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Voltage:
220/380V
Current:
500A
Rated Capacity:
9 Kw
Rated Duty Cycle:
50-100%
Dimensions:
1000-2500mm long
Weight:
20 ton
Usage:
Seam welding
Certification:
CE ISO 9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Huafei Full Automatic Longitudinal Seam Welding Machine
Executive standard:
JB/T6965-1993
Acceptance standard:
Q/01SDSJ009-2005
Color:
blue
control method:
PLC
input voltage:
380V 50Hz
Application:
pipe seam welder
Item Name:
Longitudinal welding machine
power source:
Aotai, Kaerby,
Feature:
reliable and designed well
Supply Ability
Supply Ability:
500 Set/Sets per Year Huafei Full Automatic Longitudinal Seam Welding Machine
Packaging & Delivery
Packaging Details
Standard wooden case-Huafei Full Automatic Longitudinal Seam Welding Machine
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 30 To be negotiated

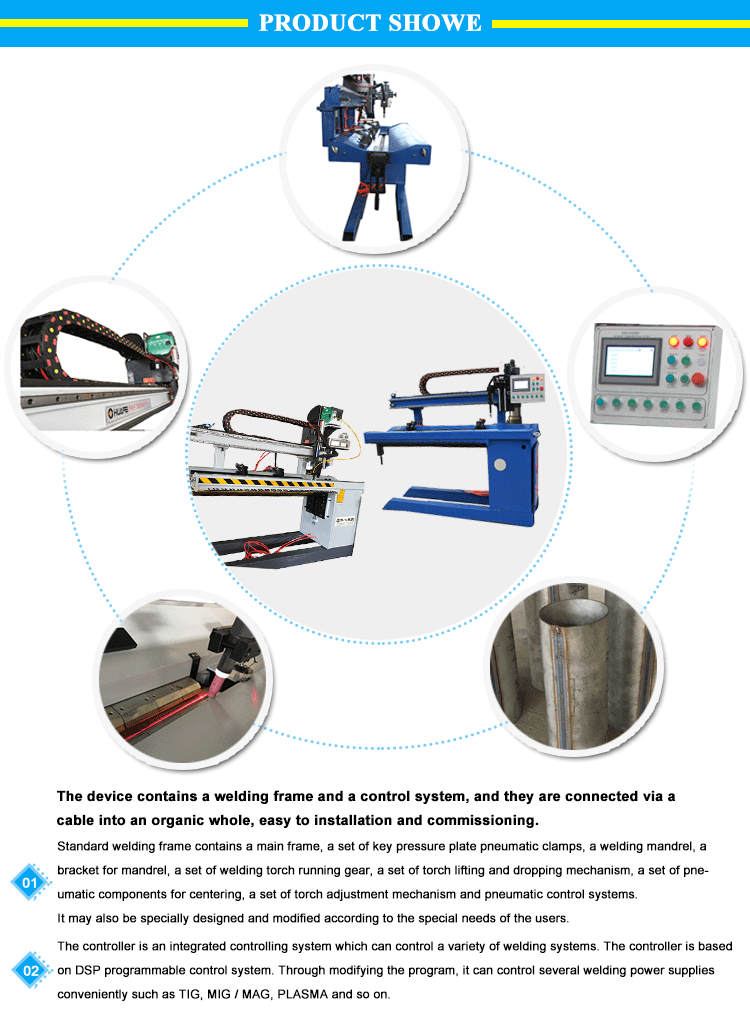

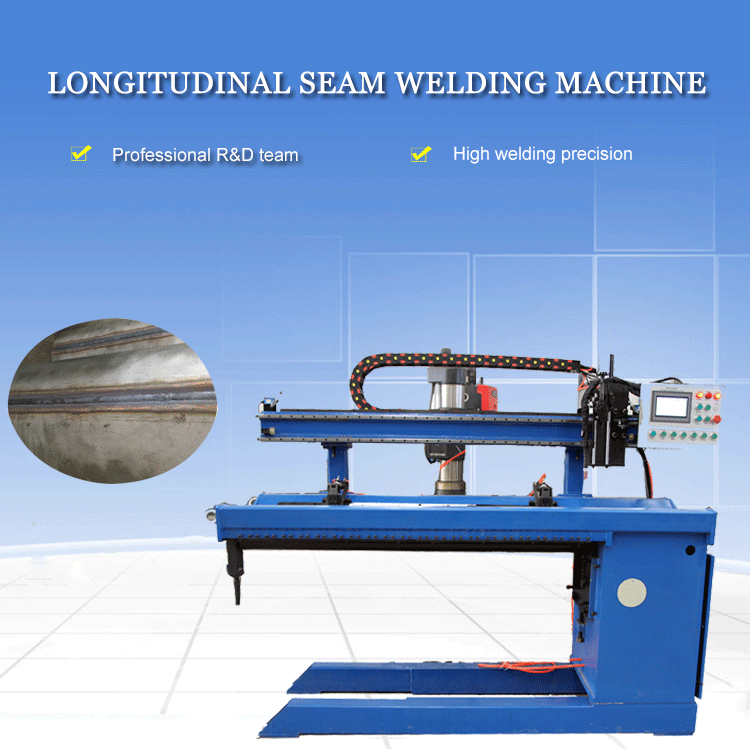

Huafei Full Automatic Longitudinal Seam Welding Machine






Introduction

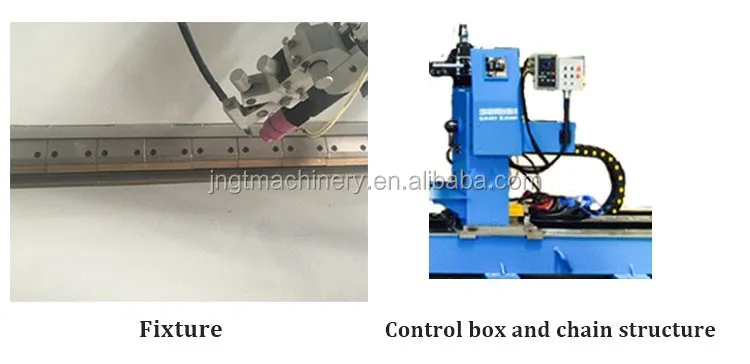

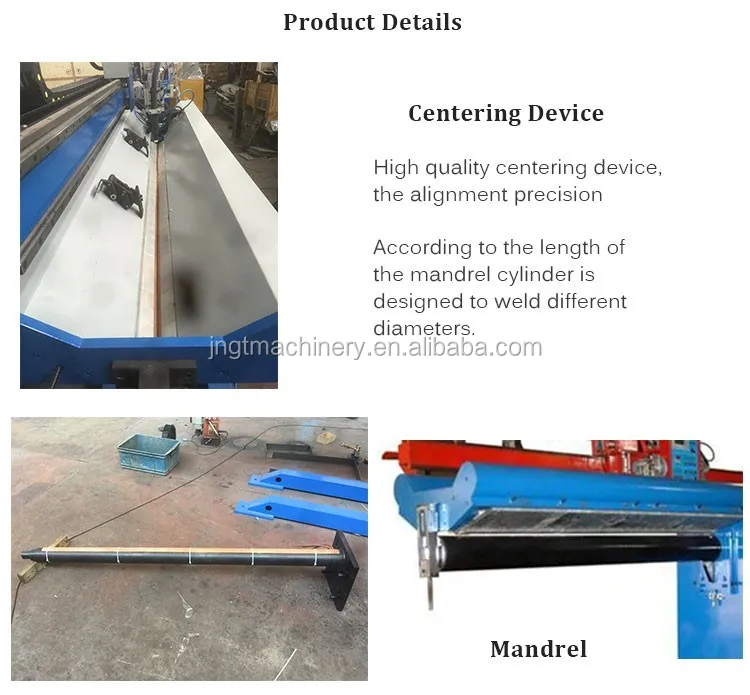

1. Workpiece clamping adopts pneumatic compression devices with keys, parts balanced force, small deformation of the workpiece.



2. Apply in high-quality, low-distortion linear seams welding. Such as: petroleum chemical container, solar water heaters, electric water heaters, pipe manufacturing, and automobile industries mechanized welding.



3. With PLC control, DC motor drives, stepless speed regulation, automatic welding control system, and oscillation with a linear device for Optional.



4. With different guard ring and groove in line on the back of the welding seam, welding can be 100% penetration, and to ensure that one side welding with back formation.



5. Welders piece thickness is 0.4 ~ 8mm, welding speed is 0.2 ~ 2.2m/min.

Automatic longitudinal seam welding system can use different welding process, such as welding; gas shielded welding, plasma welding, etc.

HTB1f9CHNpXXXXa.XpXXq6xXFXXXp.jpgHTB1LUtrHFXXXXXEXFXXq6xXFXXX0.jpgHTB1VEGANpXXXXasXFXXq6xXFXXXO.jpgHTB15mzPGXXXXXXlXVXXq6xXFXXXp.jpg



Parameters



1. Applicable material: stainless steel, carbon steel, AL alloy



2. Welding thickness: 1-8mm



3. Welding method: TIG, MIG



4. Welding speed: 0.2-2m/min



5. Wire feeding speed: 0.18~1.8 m/min



6. Moving precision: ±0.1mm/m
