Precision Computer Controlled Plasma Cutter

FOB Reference Price:Get Latest Price
US $9,700-19,700 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HuaFei
Model Number:
QGII
Voltage:
380V/220V
Rated Power:
2.5-5.0kw
Dimension(L*W*H):
3700mmx8000mmx1700mm
Weight:
1.6-2.6T
Certification:
ISO 9001;CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
type:
CNC Plasma Cutting Machine
cutting mode:
Plasma and gas
cutting width:
2200mm or as user require
cutting length:
6000mm as user require
CNC system:
Hypertherm or Shanghai Fangling
plasma power:
Hypertherm or LGK
Driving mode:
AC servo single/twin side driving
THC:
arc voltage type; capacitance type
idle stroke speed:
0-8000mm/min
nesting & programming software:
FastCAM
Supply Ability
Supply Ability:
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
film covering and plywood case packing;Precision Computer Controlled Plasma Cutter
Port
Qingdao;Precision Computer Controlled Plasma Cutter
Lead Time :
30 days;Precision Computer Controlled Plasma Cutter

Precision Computer Controlled Plasma Cutter

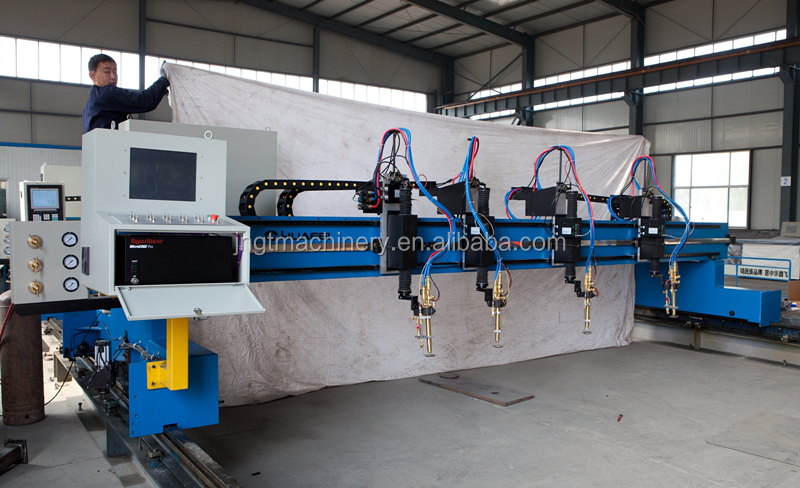

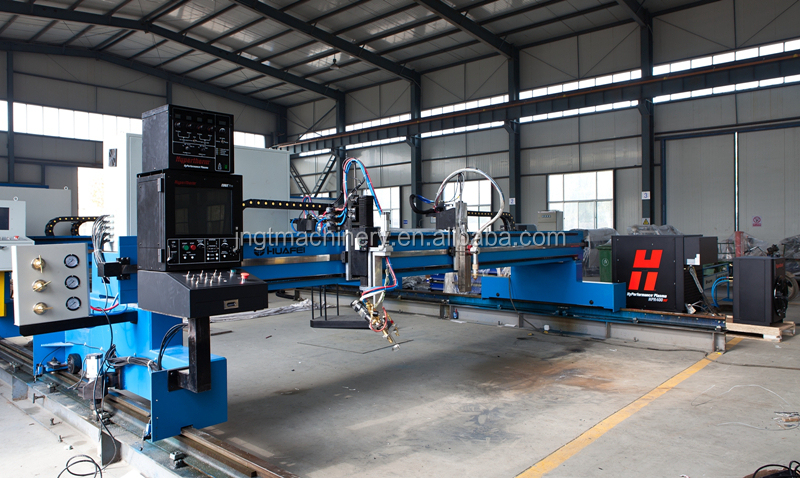

Gantry Cutter

 Feature                                 cnc plasma cutting machine
(1) Install easily

(2) Two cutting ways: flame or plasma available.

(3) Tidy cutting surfaces without burr, cutting speed can achieve to 6000mm/min.

(4) Double-side driving servo system, guarantees an excellent running performance.

(5) Optional dust proof work table or smoke removing device for a clean working environment.

(6) Optional plasma power for different materials cutting.

(7) German Neugart planetary reducer for transimission which is characterized of bigger toque, low gap and free maintenance.



 Main Parameters                 cnc plasma cutting machine

No

            item

                       specification

1

Horizontal track space(mm)

4000

4500

5000

5500

6000

6500

7000

2

effective cuttin width(mm)

3200

3700

4200

4700

5200

5700

6200

3

Overall width (mm)

4800

5300

5800

6300

6800

7300

7800

4

Cutting mode

flame only,plasma only,flame and plasma

5

Driving method

rack and pinion drive for X and Y axes

6

Driving mode

single/double-side driving

7

Flame cutting thickness

6-200mm

8

Plasma cutting thickness

0-55mm(depends on plasma power source)

9

Cutting speed

0-4000mm/min

10

Empty stroke speed

0-10000mm/min

11

Automatic height

controller

capacitive height control for flame cutting

arc voltage height control for plasma cutting

12

Cutting gas

acetylene,propane(optional)

13

Plasma gas

pressed air,oxygen,N2

14

Marking tool (Optional)

yes (Optional)

15

Nesting softwar (optional)

Integnps,Fast cam

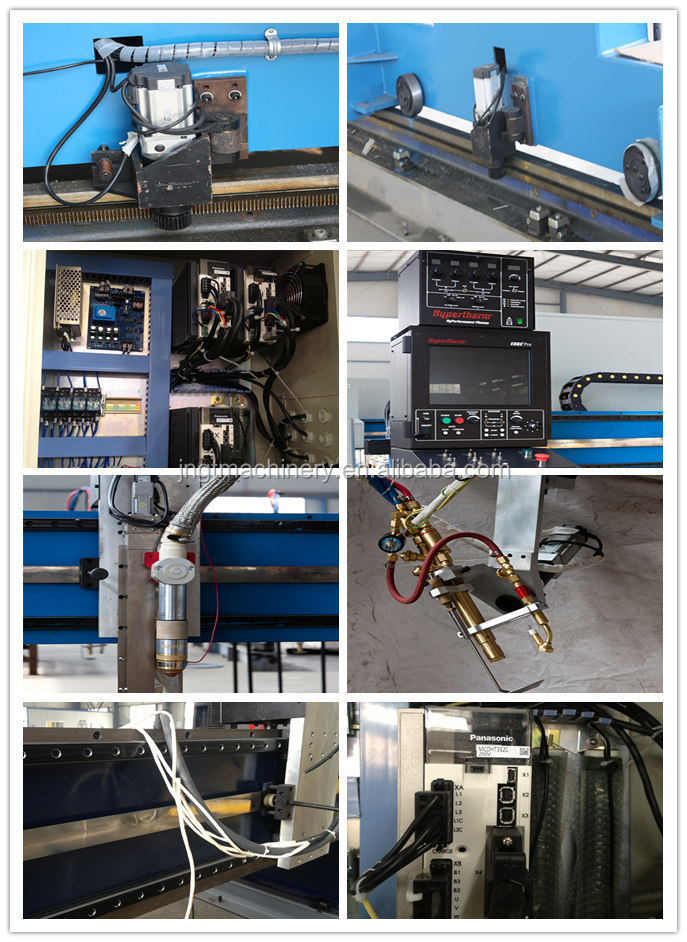

 Pictures for reference        cnc plasma cutting machine



 Mechanical Accuracy        cnc plasma cutting machine

1. Installation accuracy of guide rail:

1) Straightness accuracy of main rail           ±0.2mm/10m

2) levelness between two rails           ±0.5mm/10m

3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length

4) Parallelism between two rails        <±2mm/ rail space

2. Machine precision:

a. Longitudinal effective stroke    >nominal size 20mm

b. Transverse effective stroke       > nominal size 10mm

c. Linear positioning accuracy   ±0.1mm/10m


(1000×1000mm Comprehensive graphics detection)   GB deviation≤±0.3mm

d. Linear repeat accuracy                 ±0.4mm/10m

e. Torch stroke                              ≤170mm

f. Cutting speed                 ±5% of setting speed

g. Automatic lifting precision                   ±0.5mm

3. Comprehensive machine precision:

a. Length deviation(four sides)              0.3mm

b. Diagonal deviation                   0.3mm

c. Back to the origin of the deviation                 0.2mm

d. Diagonal straightness accuracy                  0.3mm

e. Intersection deviation                       0.3mm

f. Linear deviations                           0.2mm

g. Entire machine positioner precision                0.1mm

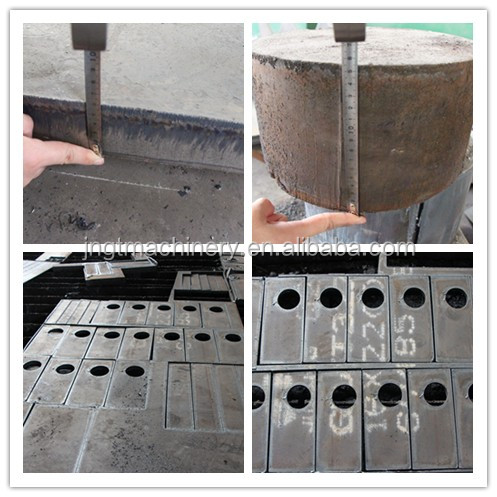

 Cutting Samples                 cnc plasma cutting machine



 Video link                            cnc plasma cutting machine

https://www.facebook.com/video.php?v=1526718990901902&set=vb.100006914478186&type=3&theater

https://www.facebook.com/AKZ250/videos/vb.100006914478186/1596285860611881/?type=3&theater&viewas=100000686899395

https://www.facebook.com/AKZ250/videos/vb.100006914478186/1596286020611865/?type=3&theater&viewas=100000686899395

Packaging & Shipping

Plywood case or plastic film cover


Our Services

 ISO9001:2008 & CE certification

.jpg

 After-sale Service

 Warranty : one year

 Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material
