Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HUAFEI
  • Model Number: Circular Seam Welding Machine
  • Forming Time: 0.2-2.2min
  • Welding Mode: TIG,MIG,MAG,SAW
  • Welding Diameter: 50-800mm
  • Dimensions: 4.0*2.2*2.2m
  • Weight: 2t
  • Usage: Circular Seam Welding Machine
  • Voltage: 380
  • Power(W): 2.5-5.0KW
  • Certification: ISO9001;CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Seam Welding Machine
  • Work piece material: carbon steel, stainless steel, alloyed metal
  • Welding mode: TIG MIG MAG SAW
  • Welding diameter: 50-800mm
  • Work piece length: 200-2000mm
  • Welding thickness: 3mm-8mm
  • Welding speed: 0.2-2.2m/min
  • Torch driving system: AC servo motor
  • Control system: PLC control, (touch screen)
  • Rotating driving: AC motor, frequency control

Packaging & Delivery

Packaging Details plywood case,Circular Seam Welding Machine
Delivery Time Shipped in 30 days after payment

Circular Seam Welding Machine

Product Overviews

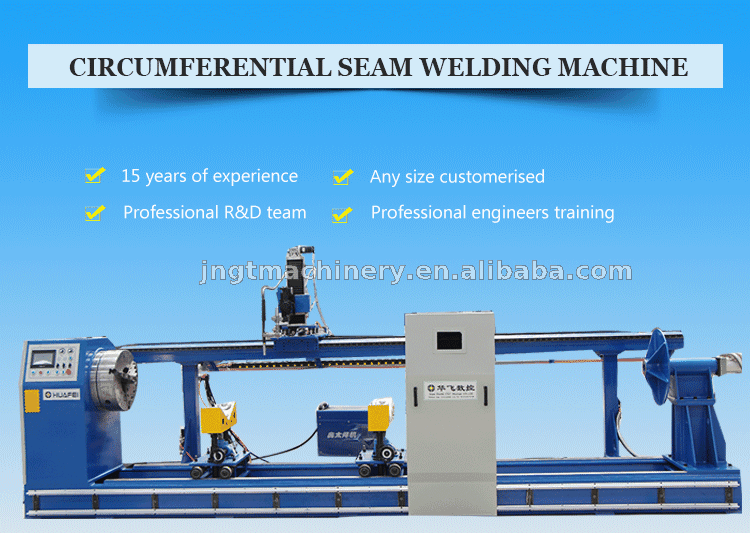

Automatic circular seam welding machine

Complete cylinder girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. SAW/MIG/MAG welding process; complete in one time welding.

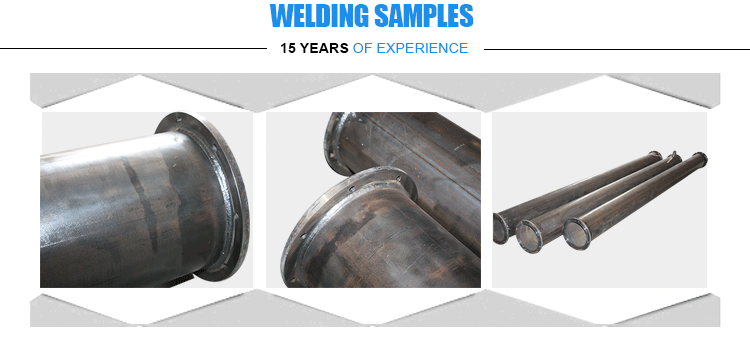

Mainly use for tank, cylinder, pipe and flange welding

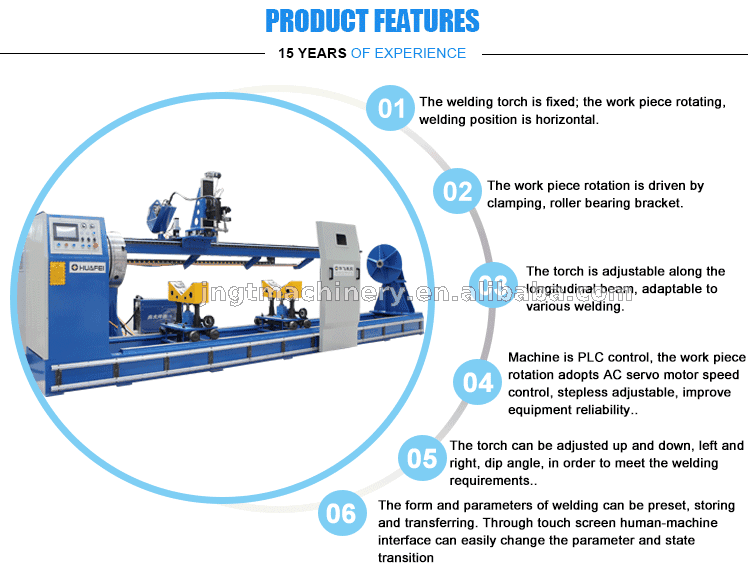

 Feature

   ♦The welding torch is fixed; the work piece rotating, welding position is horizontal

   ♦The work piece rotation is driven by clamping, roller bearing bracket

   ♦The torch is adjustable along the longitudinal beam, adaptable to various welding

   ♦Machine is PLC control, the work piece rotation adopts AC servo motor speed control, stepless adjustable, improve equipment reliability.

   ♦The form and parameters of welding can be preset, storing and transferring. Through touch screen human-machine interface can easily change the parameter and state transition.

   ♦The torch can be adjusted up and down, left and right, dip angle, in order to meet the welding requirements.

  Main Parameter

 Item Parameter
welding material carbon steel, stainless steel, aluminum alloyed
welding thickness 2-6mm
welding diameter 100-400mm; 400-1200mm
welding length 300-6000mm
work piece weight maximum 6000kg
