Positioner Rotating Welding Table

FOB Reference Price:Get Latest Price
US $500-29,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Welding Positioner
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
GT
Model Number:
Rotating Welding Table
Usage:
welding positioner
Dimensions:
2.2*2.2*1.8
Weight:
800kg
Certification:
ISO9001:2008
rotating speed:
0.02-2r/min--0.05-5r/min
turning speed:
0.15/0.25/0.37/0.75r/min
turing angle:
-30--90degree/0-90degree
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wood package or customized
Port
Qingdao
Lead Time :
in stock

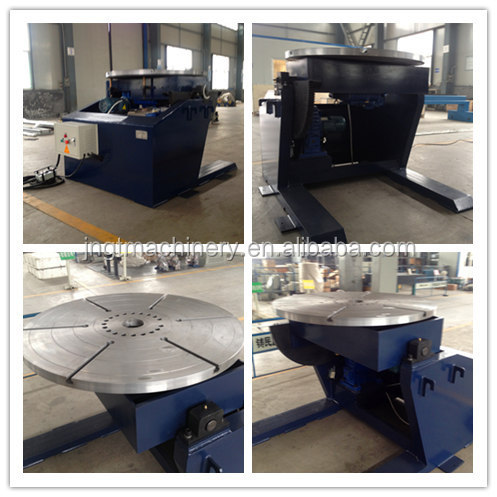

Positioner Rotating Welding Table



Positioner

Seat Type Welding Positioner

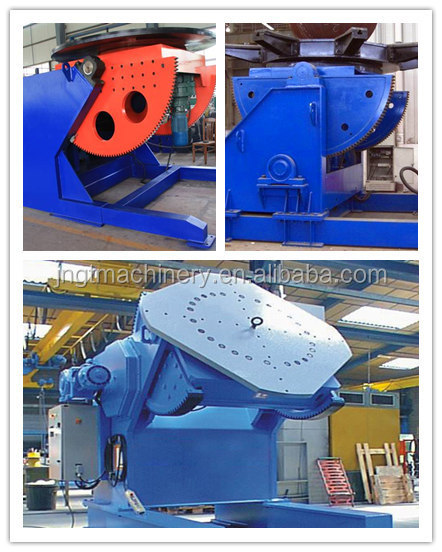

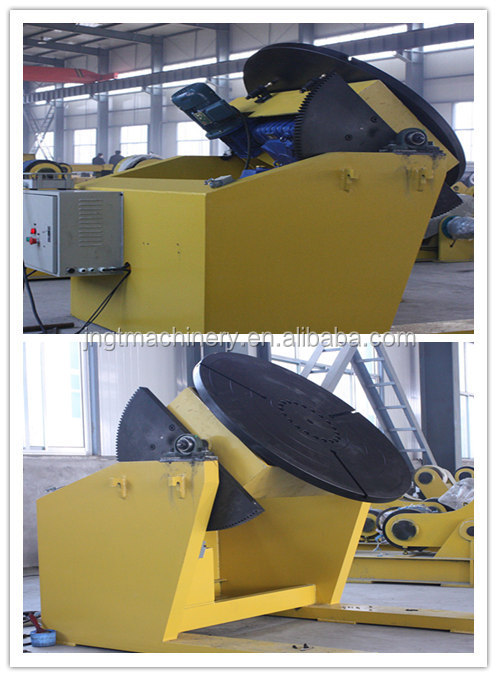

Seat-type positioner is by working table turning or tilting, let the welding seam at level or boat type position’s welding device.Table rotation with frequency variable speed,  table tilting driven by sector gear or hydraulic cylinder,table rotating angle 0 ° - 120 °.It can achieved linkage control with welding manipulator or welding machine. Control system have 3 option:Button digital control,switch digital control and switching relays control.This machine can widely used in various parts of the shaft,disk, cylinder etc.



Specifications

1. With professional anti-electromagnet funtion.

2. Have self-locking function.

3. Giving you the competitive price.

4. Tilting from 0 to 120°, rotating 360°.

5. Provide you the excellent service.

6. Supply you the reliable products.

 Technical data

Model No.BW2-6BW2-12BW2-20BW2-40BW2-50BW2-80BW2-150BW2-200
Basic loading(kg)600120020004000500080001500020000
Rotating speed r/min0.05-0.50.03-0.30.03-0.30.03-0.30.02-0.20.02-0.20.02-0.20.02-0.2
Turning speed r/min0.750.370.370.370.250.250.150.15
Turning angle (° )0-1200-1200-1200-1200-1200-1200-900-90
Work table diameter(mm)8001100110014001600180022002500
Height of work table(mm)10001250125016001800180023002600
Allow workpieceoff-center(mm)Eccentricity150200200200200200200200
Centroidal distance200250300300300350500600
Rotating motor power(kW)0.371.51.52.22.2345.5
Turning motor power(kW)0.750.751.13347.511



Machine video link

https://www.facebook.com/video.php?v=1527359967504471&set=vb.100006914478186&type=3&theater

Packaging & Shipping

Standard plywood case and plastic film



Our Services

Certification: ISO9001:2008 and CE

After-sale service



 Warranty : one year

 Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material
