Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HuaFei
  • Model Number: QGI
  • Voltage: 380V/220V
  • Rated Power: 2.0-3.5kw
  • Dimension(L*W*H): 3700mmx8000mmx1700mm
  • Weight: 1.6-2.5T
  • Certification: ISO 9001;CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • type: CNC Plasma Cutting Machine
  • cutting mode: Plasma and gas
  • cutting width: 2200mm or as user require
  • cutting length: 6300mm as user require
  • CNC system: Shanghai Fangling
  • plasma power: LGK
  • Driving mode: AC servo single side driving
  • THC: arc voltage type; capacitance type
  • idle stroke speed: 0-8000mm/min
  • nesting & programming software: FastCAM

Packaging & Delivery

Packaging Details film covering and plywood case packing; Light Gantry Mode CNC Steel Plate Flame/Plasma Cutting Machine
Delivery Time Shipped in 30 days after payment

  Light Gantry Mode Steel Profile Plasma CNC Cutter



Product Description

Quality Guaranteed CNC Plasma and Flame Cutting Machine






Brief introduction

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure, its horizontal track width have many specifications:2m,3m,4m,5m,6m,7m,etc.2m,3m,adopt single drive ,3m,4m,5m,6m,7m adopt dual drive and lineal guide. Torch quantity and type are optional according to users’ requirement,

Application

Tere are 2 kinds of cutting modes provided:plasma cutting and flame cutting,different materials,metal,steel,aluminum,copper,etc,can be well cut by it,thus this gantry CNC plasma and flame cutting machine is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Features

1. Frame

Gantry box beam with good loading capacity, high double=-side drive, for the compact structure, sufficient to eliminate the welding stress, its performance is stable and reliable.

2. Guide rails

Horizontal guide rails using domestic or imported guide, is of high precision and good guidance.Longitudinal guide rails made from special metals, with smooth grinding surface ,has very high mechanical precision and abrasion resistance.





guide rail for longitudinal transmission

Transmission system

Rack and gear mesh transmission;

Taiwan LONGFU square guide rails for horizontal transmission;

guide rail for longitudinal transmission;

Horizontal torches transmitted by steel belt;

China top brand bearing;

Stable running and long service time.

Taiwan LONGFU precision square guide rail

7-grade precision rack

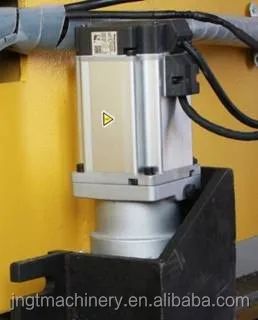

servo motor and driver system

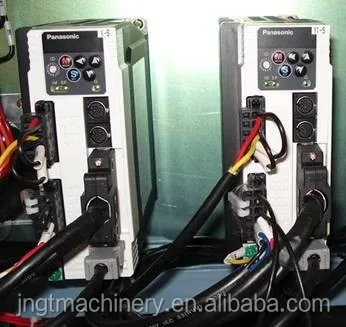

Japan Panasonic AC servo motors & reducers for bilateral driving;

Stable running, precision control;

Convenient maintenance.

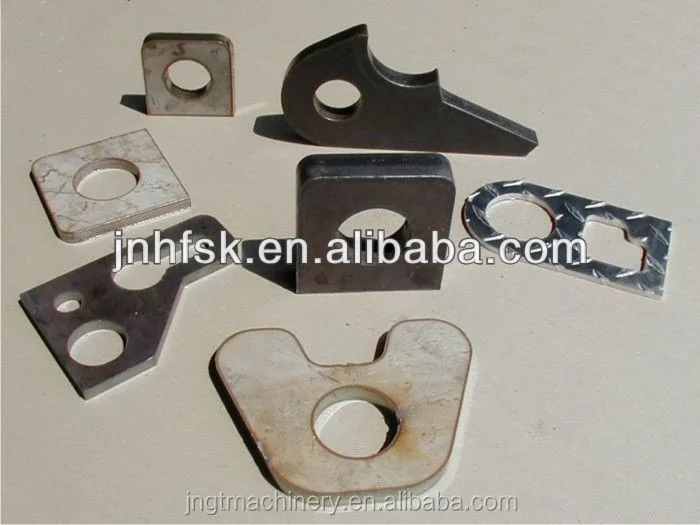

Cut Sample






 FAQ

Q1:Can you recommend a plasma machine to me ?



Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended



Q2:When the machine can’t work well,What should I do?



1. Engineer is online for 24-hours, they can check the problems and then give you a solutions in two hours.



2.our machine is with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air In free



3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.



We can warranty that:

when quality remains the same,our price is lower

when price remains the same,our quality is higher





Our Services

 ISO9001:2008 & CE certification


 After-sale Service

 Warranty : one year

 Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material

FAQ

Service Purpose:



Our professional sale and after-sale service give you a faithful feel.



Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
