Quick Details

  • Type: Other
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HUAFEI
  • Model Number: HC Automatic Welding Manipulator
  • Voltage: 380V/220V
  • Current: 10-1000A
  • Rated Capacity: 5.0kw
  • Rated Duty Cycle: 100%
  • Dimensions: 2*2-8*8
  • Weight: 1.5t-5.0t
  • Usage: HC Automatic Welding Manipulator
  • Certification: ISO9001:2008; CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • name: HC Automatic Welding Manipulator
  • colour: customized
  • weight: 1.2t
  • expansion speed of the cross arm: 140-1400mm/min
  • Rotating angle of the pillar: ±180°
  • total arm loading: 500Kg
  • rotating speed of the pillar: 0.2r/min
  • control: manual or automatic
  • usage: welding
  • power: 35-85kw

Packaging & Delivery

Packaging Details Wooden case, or customized,HC Automatic Welding Manipulator
Delivery Time 15-25days,HC Automatic Welding Manipulator
Welding manipulator

HC Automatic Welding Manipulator

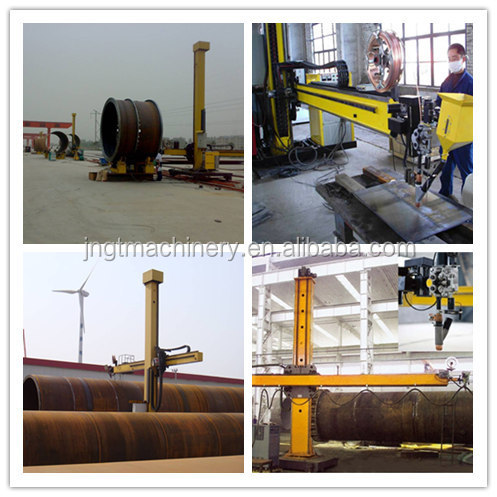

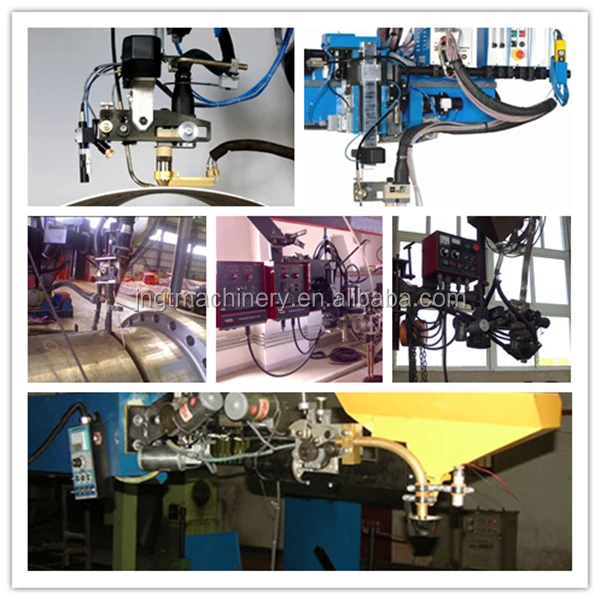

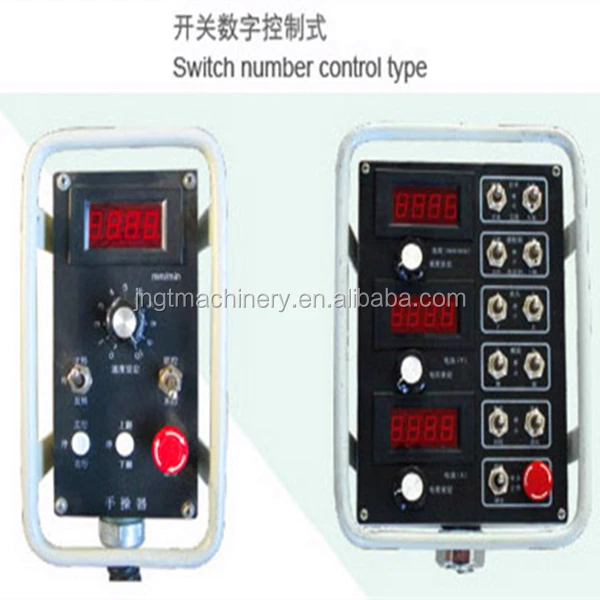

    Automatic welding manipulator for metal containers/ welded metal structure and a variety of welding ways. Widely used in wind power equipment, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair and many other industries. According to the user's requirements can install electric pallet, the telescopic arm, manned equipment and maintenance ladder, also supporting a variety of tracking and monitoring devices, oscillator , welding flux recovery delivery device. Welding manipulator adopts digital control systems, so it is easy operation, precise control and can conveniently linkage control with other equipment  .


    Automatic welding manipulator have three differernt type: small, medium, heavy.Accoding to structures,  have four type: fixed, fixed rotary, fixed-mobile and mobile rotary .



 1) Welding manipulator is the automatic welding equipment work with welding power. It can be used together with welding rotator or welding positioner, and widely used in industries as boiler, ship-building, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.


2) Our welding manipulator features in advanced structure, multi-function, and easy to operate, and other equipment to facilitate linkage control, which increased the production capacity and assured the quality.


3) The automatic welding manipulator consist of light, standard, and heavy type according to weight-bearing, effectively stretching and up/down stroke.

4) The automatic welding manipulator is design for four different structure type: Fixed type, fixed rotation type, fixed movable type and movable rotation type.

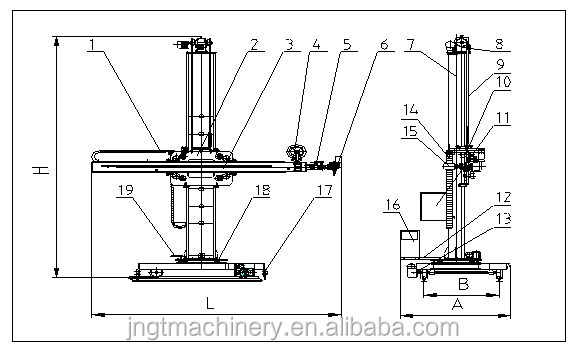

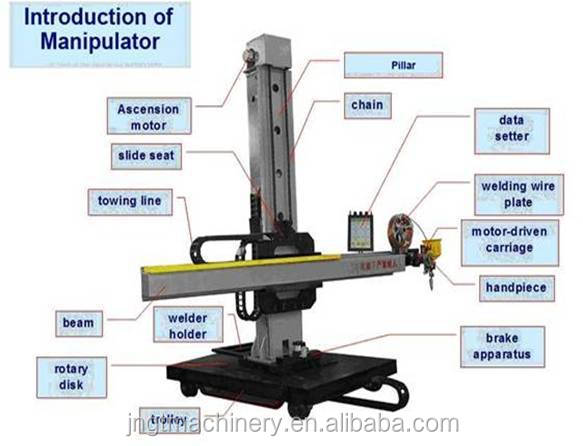

5) Welding head mounted on one end of the beam, the beam can be moved up and down and left and right telescopic column by turntable mounted slewing ring back on, so that the column can be ± 180 ° manual rotation. Telescopic beams for frequency control, speed and stability without crawling, after extending a small deflection. Compatible with a variety of welding equipment, can be carried out in vivo outer rotary joints, longitudinal seam spiral seam welding, and welding and other internal and external surfaces. Widely used in boilers, pressure vessels, piping, shipbuilding and other manufacturing industries.











Boom’s lift strok








Boom stretching strok








Column rotating(°)


Boom lift speed(mm/min)



Boom stretching speed(mm/min)


Column rotating speed(mm/min)


Total loading of boom








Center distance of track(optional)(mm)


Packaging & Shipping

Standard plywood packing


Our Services


CE and ISO9001:2008

After-sale service

 Warranty : one year

 Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components on equipment
