Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Huafei or OEM
  • Model Number: oxy cutting machine
  • Voltage: 380V, 50Hz
  • Rated Power: 8.5kw
  • Dimension(L*W*H): 4000x4800x1600mm
  • Weight: 2000kg
  • Certification: CE, ISO
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: oxy cutting machine
  • Colour: Blue, or customized
  • Cuting mode: Optional plasma and flame
  • CNC or not: yes
  • Reducer: Germany Neugart
  • Control system: USA hypertherm microedge pro

Packaging & Delivery

Packaging Details Standard wooden case and plastic film-Huafei QGII gantry type CNC plasma and flame cutting machine
Delivery Time Shipped in 20 days after payment

Huafei QGII gantry type CNC plasma and flame cutting machine

cutting machine, cnc cutting machine, plasma cutting machine for sale, metal cutting machine

1. Product features:



(1) Install easily

(2) Two cutting ways: flame or plasma available.

(3) Tidy cutting surfaces without burr, cutting speed can achieve to 6000mm/min.

(4) Double-side driving servo system, guarantees an excellent running performance.

(5) Optional dust proof work table or smoke removing device for a clean working environment.

(6) Optional plasma power for different materials cutting.

(7) German Neugart planetary reducer for transimission which is characterized of bigger toque, low gap and free maintenance.



2. Technical parameter:

No

            item

                       specification

1

Horizontal track space(mm)

4000

4500

5000

5500

6000

6500

7000

2

effective cuttin width(mm)

3200

3700

4200

4700

5200

5700

6200

3

Overall width (mm)

4800

5300

5800

6300

6800

7300

7800

4

Cutting mode

flame only,plasma only,flame and plasma

5

Driving method

rack and pinion drive for X and Y axes

6

Driving mode

double-side driving

7

Flame cutting thickness

6-200mm

8

Plasma cutting thickness

0-50mm(according to plasma power source)

9

Cutting speed

0-6000mm/min

10

Empty stroke speed

0-10000mm/min

11

Automatic height

controller

capacitive height control for flame cutting

arc voltage height control for plasma cutting

12

Cutting gas

acetylene,propane(optional)

13

Plasma gas

pressed air,oxygen,N2

14

Marking tool (Optional)

yes (Optional)

15

Nesting softwar (optional)

Integnps,Fast cam







3. Product advantage:

1) Main frame: Adapted to thermal aging, avoid deformation.



2) Horizontal straight double-shaft axles guiding rail, equipped Taiwan HSK or Taiwan HIWIN

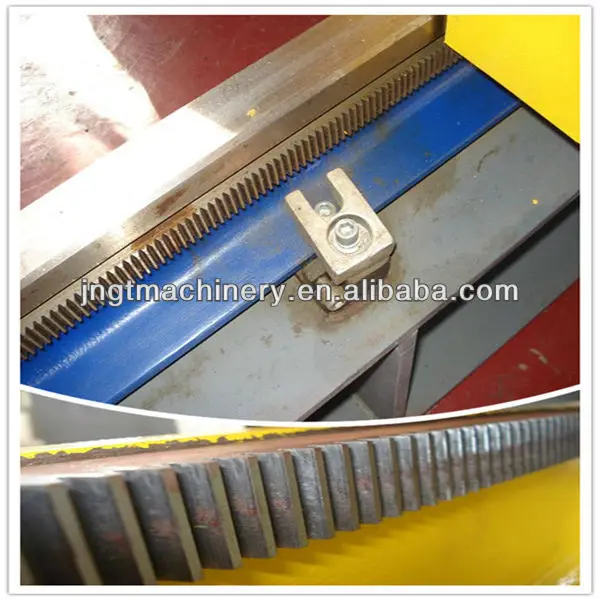

3) 7-grade precision rack



4) Servo motor : Japan Panasonic and planetary reductor: Japan SHIMPO or Germany NEUGART.

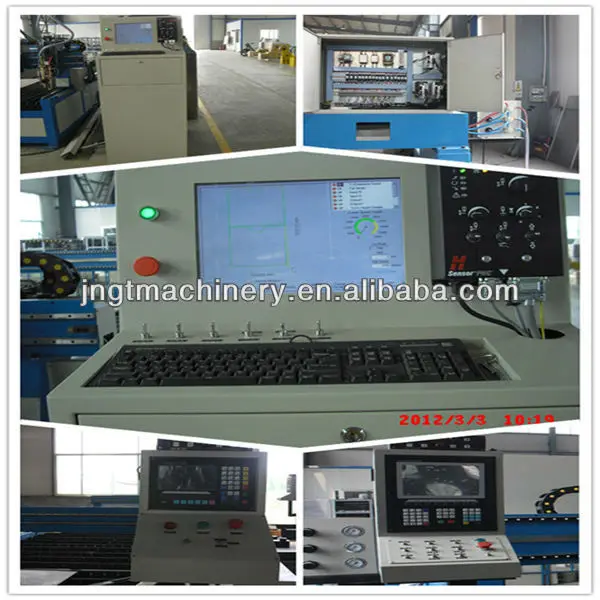

5) Controll system: USA Hypertherm EDGE Pro

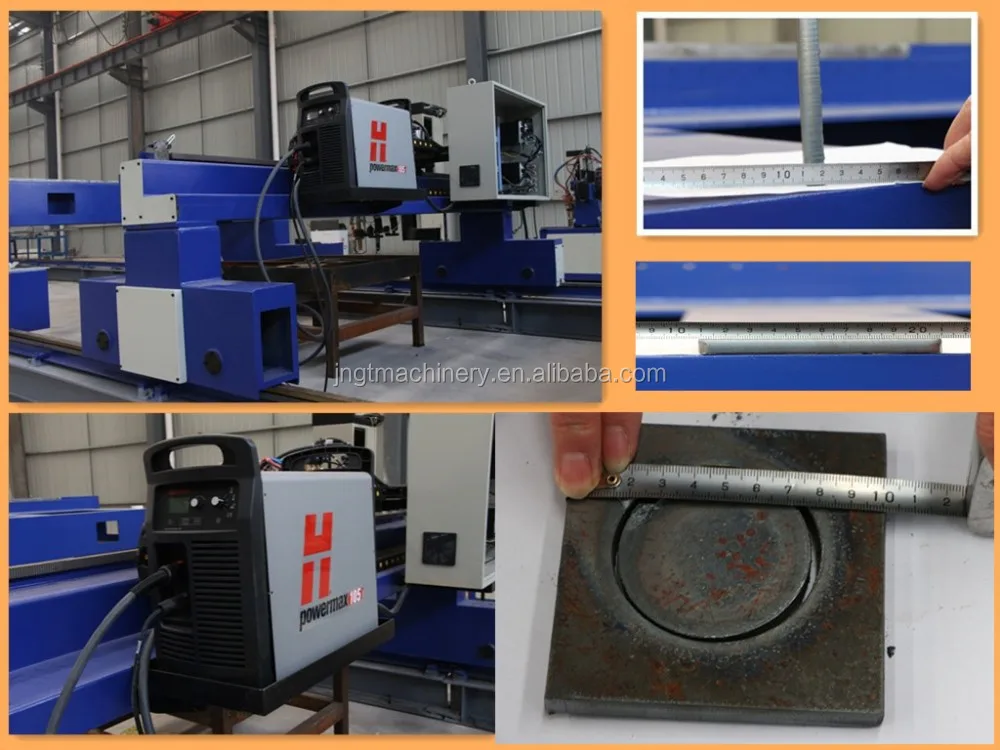

6) Plasma power optional: mainly USA Hypertherm.the others can be equipped such as :USA Kaliburn, Germany Kjellberg or some made in China like:Shanghai Jiaoda.



7) Automatic Programming and Fastcam: Australia FASTCAM (Professional), can realize material common cutting so that can save the materials.





8) Plasma torch with Arc volt auto height-regulating device and 360°anti-collision device



9) Flame torch: with capacitive auto height-regulating device, Auto ignition device, Solenoid Valve: Italy CEME and flashback arrestor. The whole torch brand: USA G&R. Air tube is Brand Korean YASUNG





Certifications







5. Other equipment we are supplying:

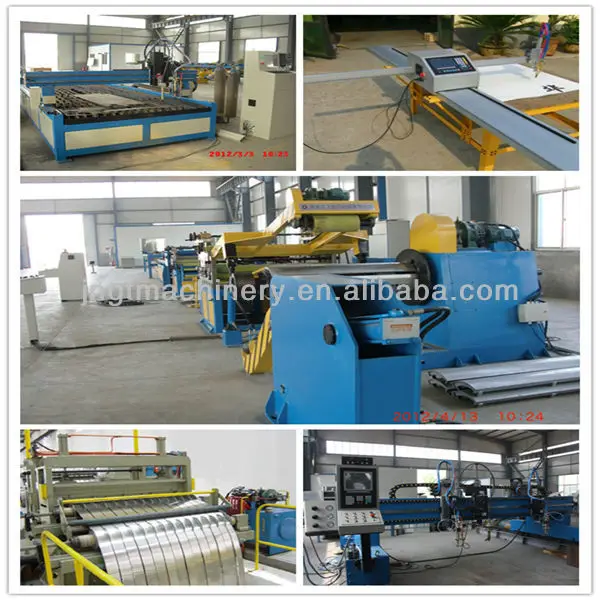

1) cnc cutting machine and shearing line & slitting line





6. Customer visit





More details, please contact us freely.

My skype:huafeicnc
